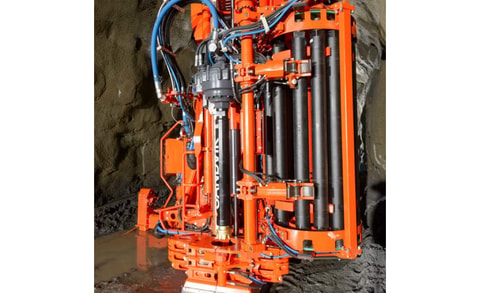

Modular mast for ITH production drills

Based on feedback from the field and review of existing designs Sandvik is introducing a new modular feed package for underground ITH drills.

  • Description

    Based on feedback from the field and review of existing designs Sandvik is introducing a new modular feed package for underground ITH drills.

    The design implements improved pipe loading repeatability resulting in increased production. The modular design promotes fast application changes and reduced unique components to fulfill the option list.

    The robust design extends the life on major components while decreasing misalignment issues with the carousel in inverted positions.

  • Advantages

    Improved design and material.

    Hosing bundles optimized, improved hose routing.

    Stingers improved with longer extension

  • Customer values

    Improves the operation of the pipes loading system bringing better productivity.

    Reduces the risk of damage

    Reduce risk of premature hose failure.

    Increased machine availability

    More reach when stinging

Product specifications

Technical specifications

Application area
Productivity improvement
Underground drill rigs & Bolters
Sandvik DU211 / Sandvik DU311 / Cubex 6200 / Cubex Orion / Cubex Pegasus / Cubex Aries / Sandvik DU311-T / Sandvik DU411 / Sandvik DU431
