TH663i

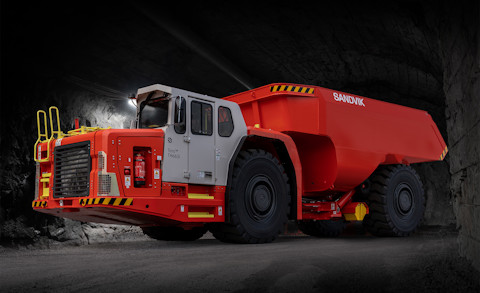

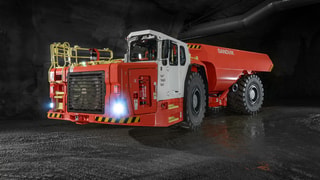

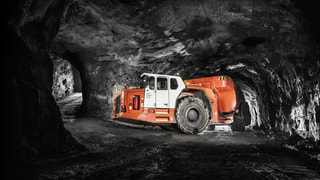

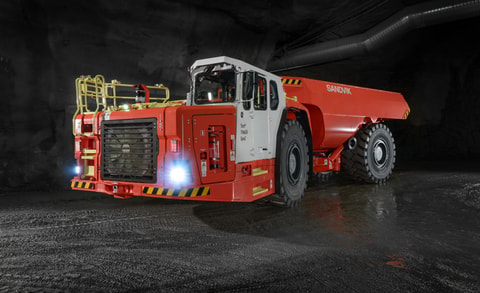

Toro® TH663i truck with its 63-tonne payload capacity is purpose-built for underground environments, offering a potent combination of intelligence, high productivity and sustainability.

Gen2 represents the current refined standard of Toro® TH663i platform, building on years of experience with more than 30 enhancements designed to improve reliability, productivity, operator safety and total cost of ownership in underground mining operations.

Gen2 improvements

Features

Built for productivity

Toro® TH663i is engineered to maximize tonnes per shift through high payload capacity, efficient haulage and dependable performance. More productive operating hours and reduced downtime help deliver lower cost per tonne and higher overall productivity.

Built for productivity

Toro® TH663i is engineered to maximize tonnes per shift through high payload capacity, efficient haulage and dependable performance. More productive operating hours and reduced downtime help deliver lower cost per tonne and higher overall productivity.

Toro® TH663i is engineered to maximize tonnes per shift through high payload capacity, efficient haulage and dependable performance. More productive operating hours and reduced downtime help deliver lower cost per tonne and higher overall productivity.
Efficient performance

Available with Stage II / Tier 2 or optional Stage V engine technology, Toro® TH663i combines fuel-efficient performance with low operating costs. Both engine options support EN 15940-compliant renewable paraffinic diesel fuels, helping reduce emissions while maintaining productivity.

Efficient performance

Available with Stage II / Tier 2 or optional Stage V engine technology, Toro® TH663i combines fuel-efficient performance with low operating costs. Both engine options support EN 15940-compliant renewable paraffinic diesel fuels, helping reduce emissions while maintaining productivity.

Available with Stage II / Tier 2 or optional Stage V engine technology, Toro® TH663i combines fuel-efficient performance with low operating costs. Both engine options support EN 15940-compliant renewable paraffinic diesel fuels, helping reduce emissions while maintaining productivity.
Premium cabin ergonomics

The cabin provides comfortable working conditions, supporting the operator to utilize the truck’s full potential. With premium ergonomics, including air conditioning, dust- and noise-resistant upholstery materials, and multiple adjustment possibilities, it ensures optimal operator comfort.

Premium cabin ergonomics

The cabin provides comfortable working conditions, supporting the operator to utilize the truck’s full potential. With premium ergonomics, including air conditioning, dust- and noise-resistant upholstery materials, and multiple adjustment possibilities, it ensures optimal operator comfort.

The cabin provides comfortable working conditions, supporting the operator to utilize the truck’s full potential. With premium ergonomics, including air conditioning, dust- and noise-resistant upholstery materials, and multiple adjustment possibilities, it ensures optimal operator comfort.

Learn more about Toro® TH663i features

Enhanced operator safety

The ROPS- and FOPS-certified cabin protects the operator and enhances safety. Toro® TH663i features 3-layer laminated safety glass windows, an illuminated entrance with secure handles, anti-slip steps and a door system with a magnetic interlock switch that activates the brakes upon opening.

Maintenance friendly

Daily maintenance is carried out at ground level. When accessing the top is needed, 3-point contact handles, anti-slip steps, perforated top covers and anti-slip tapes ensure steady grip. Standard safety features include lockable switches, articulation lock, box support and wheel chocks.

Integrated jacking system

The optional integrated jacking system provides a safer, quicker solution for lifting the truck during tire failure. It can elevate the fully loaded truck using a hydraulic system and is controlled remotely.

Low cost per tonne

The fuel-efficient Volvo engine ensures durability and cost-effectiveness. The equipment's low weight, efficient engine technology, fast ramp speeds and up to 25% lower fuel consumption result in a low cost per tonne. Reduced fuel consumption also aids in CO2 emission reduction.

Low emission steel

Sandvik now offers an optional dump box made with SSAB Zero™ steel for Toro® TH663i and Toro® TH551i dump trucks. The box is made using recycled steel, and it meets the same quality and performance standards as the traditional steel. When Sandvik manufactures a box with SSAB Zero™ steel, the cradle-to-gate CO2 emissions are 70 percent less than those of a traditional box.

Product specifications

Downloads

Download TH663i specification sheet (PDF 1.7 MB)

Download load and haul stage V engine technology (PDF 6 MB)

My Sandvik

TH663i operating manual and spare parts

Operating manuals and spare parts can be found on the My Sandvik customer portal.

Go to My Sandvik

Technical specifications

Dimensions (LxWxH)	11,600 x 3,500 x 3,500 mm
Capacity	63,000 kg
Box range	24 - 40 m³
Operating weight *	48,400 kg
Engine type **	Volvo TAD1643VE-B (Tier 2)
Output	565 kw (760 hp) @ 1900 rpm
Torque	3260 Nm @ 1200 rpm
Fuel tank capacity	850 l
Maximum driving speed (Level / loaded)	34.3 km/h

Dimensions (LxWxH)	11,600 x 3,500 x 3,500 mm
Capacity	63,000 kg
Box range	24 - 40 m³
Operating weight *	48,400 kg
Engine type **	Volvo TAD1643VE-B (Tier 2)
Output	565 kw (760 hp) @ 1900 rpm
Torque	3260 Nm @ 1200 rpm
Fuel tank capacity	850 l
Maximum driving speed (Level / loaded)	34.3 km/h

*Unit weight is dependent on the selected options
**Optional Stage V engine available

Toro® TH663i technical specification
