Toro® TH320
Diesel trucks
Toro® TH320
- Dimensions (LxWxH)
- 9,100 x 2,200 x 2,400 mm
- Capacity
- 20,000 kg
- Box range
- 11 - 14 m³

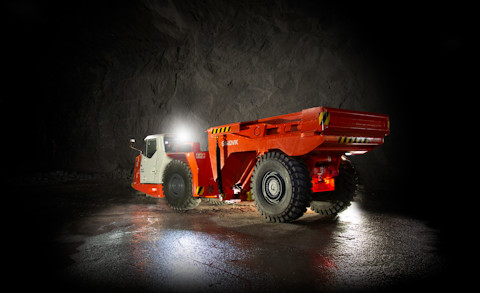

Toro® TH320 truck is a 20-tonne mining vehicle tailored for small and medium-sized hard rock mines. Despite its high payload capacity, it maintains the same overall width as typical 15-tonne trucks.
Features
-
High performance underground
This underground truck has a robust structure, compact size and purpose-built components to ensure productivity in challenging environments. It features an improved front approach angle to minimize impacts on rough terrain.
High performance underground
This underground truck has a robust structure, compact size and purpose-built components to ensure productivity in challenging environments. It features an improved front approach angle to minimize impacts on rough terrain.
This underground truck has a robust structure, compact size and purpose-built components to ensure productivity in challenging environments. It features an improved front approach angle to minimize impacts on rough terrain.
-
Low fuel consumption
The 235 kW Tier 3 Volvo engine is equipped with a catalytic purifier and muffler, ensuring engine longevity in underground mining. The fuel-efficient 8-liter engine with advanced injection technology promotes efficient combustion and minimal fuel consumption.
Low fuel consumption
The 235 kW Tier 3 Volvo engine is equipped with a catalytic purifier and muffler, ensuring engine longevity in underground mining. The fuel-efficient 8-liter engine with advanced injection technology promotes efficient combustion and minimal fuel consumption.
The 235 kW Tier 3 Volvo engine is equipped with a catalytic purifier and muffler, ensuring engine longevity in underground mining. The fuel-efficient 8-liter engine with advanced injection technology promotes efficient combustion and minimal fuel consumption.
-
Narrow width
Its narrow size is designed for operation in small and medium-sized hard rock mines and fits in 3 x 3 meter headings.
Narrow width
Its narrow size is designed for operation in small and medium-sized hard rock mines and fits in 3 x 3 meter headings.
Its narrow size is designed for operation in small and medium-sized hard rock mines and fits in 3 x 3 meter headings.
Product specifications
Downloads
TH320 operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
Technical specifications
| Dimensions (LxWxH) |
9,100 x 2,200 x 2,400
mm
|
|---|---|
| Capacity |
20,000
kg
|
| Box range |
11 - 14
m³
|
| Operating weight * |
22,600
kg
|
| Engine type ** |
Volvo TAD853VE (Tier 3)
|
| Dimensions (LxWxH) |
9,100 x 2,200 x 2,400
mm
|
|---|---|
| Capacity |
20,000
kg
|
| Box range |
11 - 14
m³
|
| Operating weight * |
22,600
kg
|
| Engine type ** |
Volvo TAD853VE (Tier 3)
|
| Output |
235 kw (315 hp) @ 2200 rpm
|
| Torque |
1310 Nm @ 1450 rpm
|
| Fuel tank capacity |
340
l
|
| Maximum driving speed (Level / loaded) |
28.4
km/h
|
