Mineral Fill
Urea-Silicate
Mineral Fill
- Appearance
- Component A: colourless liquid / Component B: dark brown liquid
- Foam factor
- at 25˚ C with 40±10
- Reaction start time
- at 25˚ C in 10 - 20 seconds

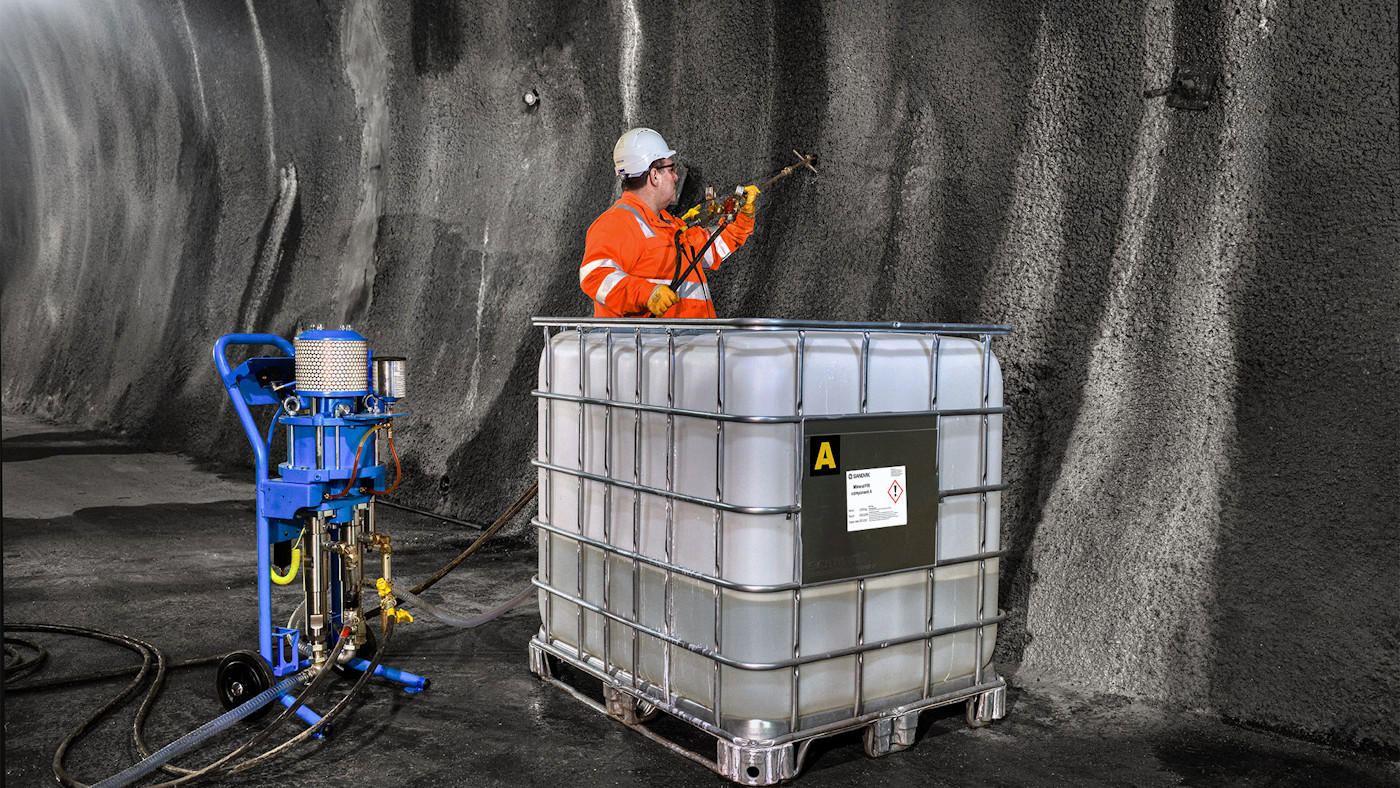

Mineral Fill is a two component, strongly expanding silicate foam. It is fast-reacting and suitable for cavity filling, ground stabilization for heavily cracked rock mass and soil, and able to stop water.
Features
-
Low viscosity
Mineral Fill components have a low viscosity both before and after mixing.
Low viscosity
Mineral Fill components have a low viscosity both before and after mixing.
Mineral Fill components have a low viscosity both before and after mixing.
-
Easy to cut
Cured resin is easy to cut and drill through.
Easy to cut
Cured resin is easy to cut and drill through.
Cured resin is easy to cut and drill through.
-
Corrosion resistant
Mineral fill has excellent corrosion resistance.
Corrosion resistant
Mineral fill has excellent corrosion resistance.
Mineral fill has excellent corrosion resistance.
Product specifications
Downloads
Technical specifications
| Appearance |
Component A: colourless liquid / Component B: dark brown liquid
|
|---|---|
| Foam factor |
at 25˚ C with 40±10
|
| Reaction start time |
at 25˚ C in 10 - 20 seconds
|
| Density at 20˚C |
Component A: 1.28±0.05 g/cm3 / Component B: 1.21±0.05 g/cm3
|
| Viscosity at 25˚C |
Component A: 25±10 mPa*s / Component B: 150±50 mPa*s
*
|
-
* *results obtained under laboratory conditions
| Appearance |
Component A: colourless liquid / Component B: dark brown liquid
|
|---|---|
| Foam factor |
at 25˚ C with 40±10
|
| Reaction start time |
at 25˚ C in 10 - 20 seconds
|
| Density at 20˚C |
Component A: 1.28±0.05 g/cm3 / Component B: 1.21±0.05 g/cm3
|
| Viscosity at 25˚C |
Component A: 25±10 mPa*s / Component B: 150±50 mPa*s
|
| Viscosity at 10˚C |
Component A: 35±10 mPa*s / Component B: 350±50 mPa*s
|
| Viscosity after mixing A+B |
at 25˚C with 200±50 MPa* / at 10˚C with 400±50 MPa*
|
| Max. reaction temperature |
at 25˚C < 90˚C / at 10˚C < 90˚C
|
Our range of urea-silicate
Mineral Bolt
- Appearance
- Component A: pale yellow liquid / Component B: dark brown liquid
- Reaction time
- 20 to 600 seconds
Mineral Bond
- Appearance
- Component A: colourless liquid / Component B: dark brown liquid
- Foam factor
- at 25˚C with 1.0
- Reaction start time
- at 25˚ C in 30 - 60 seconds
