DD423iE
Development drill rigs
DD423iE
- Coverage
- 80 m²
- Hole length
- 3.44 - 5.88 m
- Tramming type and distance
- BEV – 9.0 km @ 8.0 km in 1:7 incline

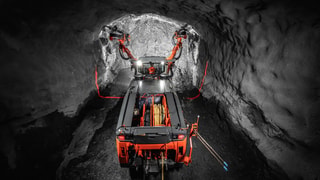

Sandvik DD423iE is a battery-powered development drill with an extended coverage up to 80 m² and a wide range of automatic drilling functions for optimized underground drilling operations. It creates a healthier and safer working environment by reducing emissions, noise and heat generation while tramming.
Features
-

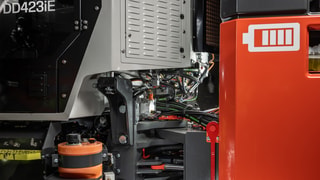

LFP battery technology
The Lithium Iron Phosphate (LFP) chemistry offers 155 kWh usable energy onboard. The intelligent power management system, Charging While Drilling enables battery charging to be carried out during normal drilling cycles to ensure maximum tramming energy is available.
LFP battery technology
The Lithium Iron Phosphate (LFP) chemistry offers 155 kWh usable energy onboard. The intelligent power management system, Charging While Drilling enables battery charging to be carried out during normal drilling cycles to ensure maximum tramming energy is available.
The Lithium Iron Phosphate (LFP) chemistry offers 155 kWh usable energy onboard. The intelligent power management system, Charging While Drilling enables battery charging to be carried out during normal drilling cycles to ensure maximum tramming energy is available.
-

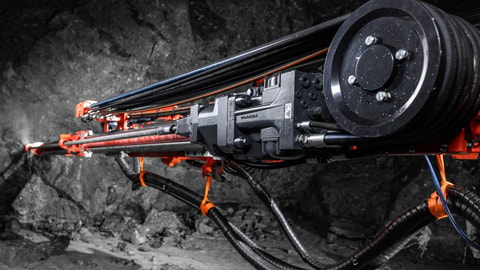

Wide boom coverage
The drill equipped with two SB75i booms features an extra-large coverage up to 80 m² allowing more drilling, wider crosscut’s and more slashing holes without moving the machine.
Wide boom coverage
The drill equipped with two SB75i booms features an extra-large coverage up to 80 m² allowing more drilling, wider crosscut’s and more slashing holes without moving the machine.
The drill equipped with two SB75i booms features an extra-large coverage up to 80 m² allowing more drilling, wider crosscut’s and more slashing holes without moving the machine.
-

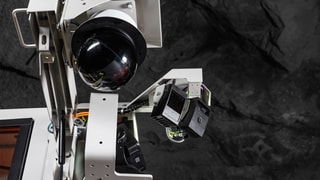

Scalable automation
Sandvik DD423iE delivers a wide range of advanced features for optimized automated drilling. Automatic boom movements between holes ensure consistent and predictable drilling results. The optional tele remote drilling station ensures uninterrupted operations.
Scalable automation
Sandvik DD423iE delivers a wide range of advanced features for optimized automated drilling. Automatic boom movements between holes ensure consistent and predictable drilling results. The optional tele remote drilling station ensures uninterrupted operations.
Sandvik DD423iE delivers a wide range of advanced features for optimized automated drilling. Automatic boom movements between holes ensure consistent and predictable drilling results. The optional tele remote drilling station ensures uninterrupted operations.

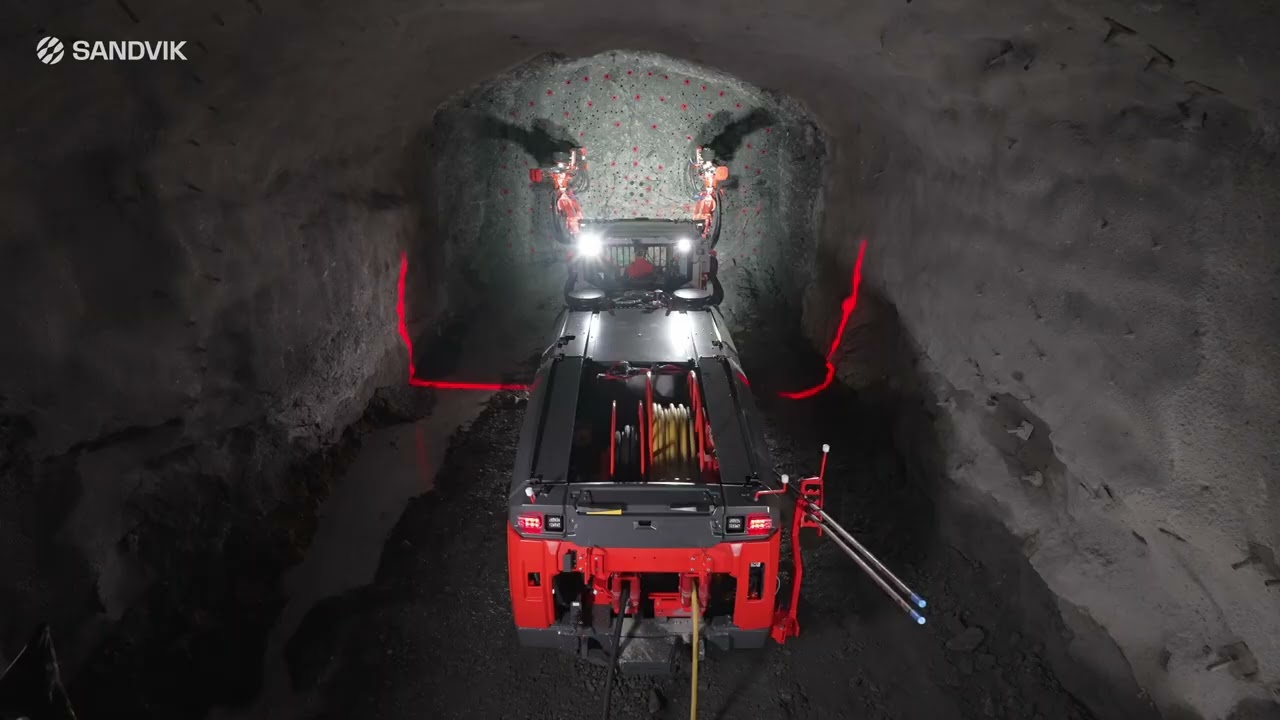

Learn more about DD423iE
i-Class Control System
i-Class Control System enables advanced mine automation and teleremote solutions. Sandvik DD423iE is fully compatible with My Sandvik, Newtrax MDP and AutoMine® systems.

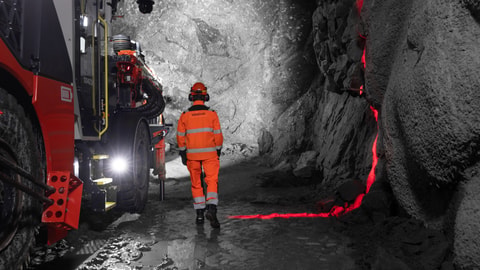

Ergonomic working environment
Equipped with full glass doors for improved visibility, the cabin ensures maximum comfort with reduced noise.
Product specifications
Technical specifications
| Coverage |
80
m²
|
|---|---|
| Hole length |
3.44 - 5.88
m
|
| Tramming type and distance |
BEV – 9.0 km @ 8.0 km in 1:7 incline
|
| Hole diameter |
43 - 64
mm
|
| Number of booms |
2
|
| Coverage |
80
m²
|
|---|---|
| Hole length |
3.44 - 5.88
m
|
| Tramming type and distance |
BEV – 9.0 km @ 8.0 km in 1:7 incline
|
| Hole diameter |
43 - 64
mm
|
| Number of booms |
2
|
| Drift size (H x W) |
4.5 x 4.5
m
|
| Feed length |
Fixed TF5i 12 to 20 ft. or telescopic TFX 6-12 ft. to 10-16 ft.
|
| Rock drill |
RD525 25kW
|
| Voltage |
380 - 1,000
V
(multi voltage)
|
| Controls type |
SICA (Sandvik Intelligent Control System Architecture)
|
| Weight |
26,000
kg
(depending on options)
|
