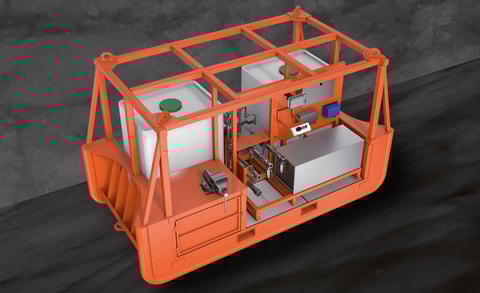

HPA20 automatic injection pump
Pumps
HPA20 automatic injection pump
- Operating mode
- Manual / automatic
- Resin type
- Two-component resin
- Max. resin flow
- 10.00 liters/component
Unique flexibility combined with enhanced quality and security - the HPA20 (hydraulic power automatic) automatic injection pump provides a higher level of automation and quality control compared to traditional resin pumps.
Features
-
Unique flexibility
Suitable for 2-component silicate & polyurethane resins, it allows manual injection as well as the capability to be integrated on to underground equipment.
Unique flexibility
Suitable for 2-component silicate & polyurethane resins, it allows manual injection as well as the capability to be integrated on to underground equipment.
Suitable for 2-component silicate & polyurethane resins, it allows manual injection as well as the capability to be integrated on to underground equipment.
-
Increased productivity
Can be used for underground drill rigs, that are not suitable for on board bulk resin systems, providing a cost efficient solution for resin bolting.
Increased productivity
Can be used for underground drill rigs, that are not suitable for on board bulk resin systems, providing a cost efficient solution for resin bolting.
Can be used for underground drill rigs, that are not suitable for on board bulk resin systems, providing a cost efficient solution for resin bolting.
-
Enhanced quality & safety
The fully sealed system always supports the right mixing ratio and, in automatic mode, even collects all the data from each session, providing comprehensive information for QA/QC procedures.
Enhanced quality & safety
The fully sealed system always supports the right mixing ratio and, in automatic mode, even collects all the data from each session, providing comprehensive information for QA/QC procedures.
The fully sealed system always supports the right mixing ratio and, in automatic mode, even collects all the data from each session, providing comprehensive information for QA/QC procedures.
Product specifications
Technical specifications
| Operating mode |
Manual / automatic
|
|---|---|
| Resin type |
Two-component resin
|
| Max. resin flow |
10.00
liters/component
|
| Resin tank size |
300 l + 300 l
|
| Mixing ratio |
1:1
|
| Operating mode |
Manual / automatic
|
|---|---|
| Resin type |
Two-component resin
|
| Max. resin flow |
10.00
liters/component
|
| Resin tank size |
300 l + 300 l
|
| Mixing ratio |
1:1
|
| Max. resin pressure |
200
bar
|
| Operational temperature |
10 - 45
°C
|
| User level |
Operator and supervisor
|
| Weight |
1,275
kg
|
| Dimensions (L x W x H) |
2.8x1.4x1.6
m
|
