Hollow bars

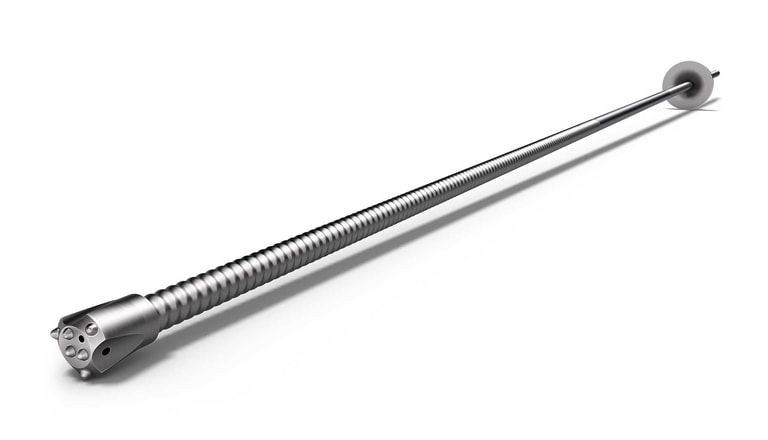

DSI Ductile Hollow Bar

Nominal outer diameter
R28: ⌀28 mm / R32: ⌀32 mm
Standard length
R28: 2.4 m / R32: 2.4 m & 3.0 m
Tensile load bearing capacity
R28: 335 kN / R32: 300 kN

Available in Ø28 mm and Ø32 mm, the DSI Ductile Hollow Bar Bolt combines exceptional deformability with fast self-drilling installation for reliable support in squeezing and fractured ground.

Features

Product specifications

Downloads

Technical specifications

Nominal outer diameter
R28: ⌀28 mm / R32: ⌀32 mm
Nominal inner diameter
R28: ⌀12 mm / R32: ⌀17 mm
Standard length
R28: 2.4 m / R32: 2.4 m & 3.0 m
Tensile load bearing capacity
R28: 335 kN / R32: 300 kN 1)
Shear load bearing capacity2
R28: 280 kN / R32: 290 kN 2)

  • 1) Determined during pull-out tests of bolts installed with Mineral Bolt resin in high strength concrete blocks conducted by an independent institution.

  • 2) Determined during shear tests of bolts installed with Mineral Bolt resin in high strength concrete blocks conducted by an independent institution.
