Bulk pack

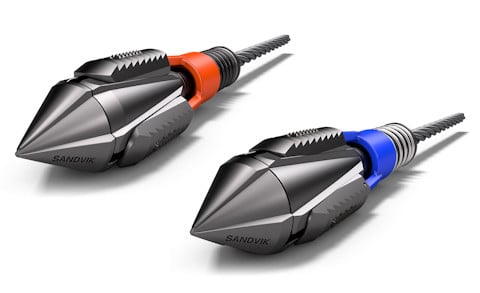

Fast Cable Anchor
- Cable diameter
- ⌀15.2 mm / ⌀17.8 mm
- Hole size
- 52 - 58 mm
- Cable type
- 7 wire plain strand cable or 7 wire spirally indented cable

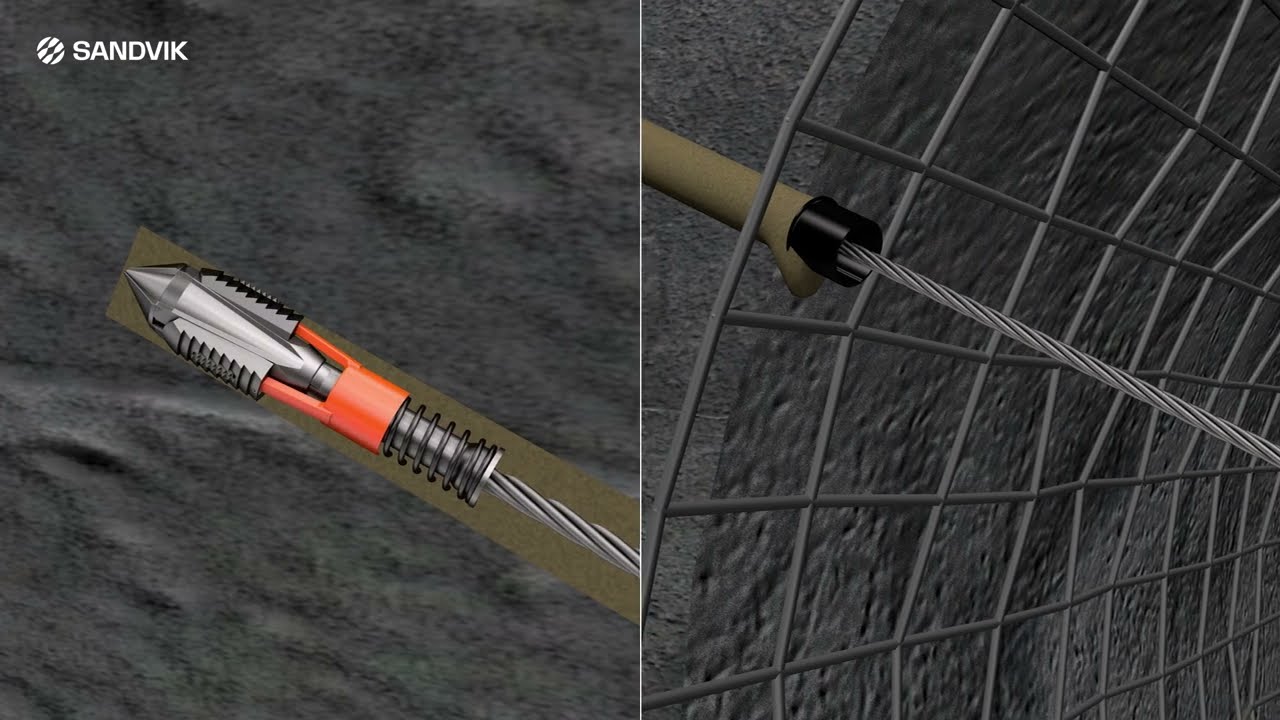

The new Fast Cable Anchor increases productivity and enhances safety for cable bolting applications in hard-rock mining. Thanks to immediate tensioning upon anchor insertion, re-entry times in the affected area of the mine are significantly reduced. The innovative design provides better distribution of the grout in cavities and gaps and allows fast mechanical installation using Sandvik cable bolters.
Features
-
Improved efficiency
A tool-less connection to the cable enables the use of bulk cables, allowing for fast mechanical installation with Sandvik cable bolters.
-
Increased productivity
Immediate tensioning to mine requirements or 100 kN upon anchor insertion reduces re-entry times in the affected area of the mine significantly.
-
Enhanced safety
The anchor engages securely with the rock wall of the borehole providing additional installation stability.
Product specifications
- Cable diameter
- ⌀15.2 mm / ⌀17.8 mm
- Hole size
- 52 - 58 mm
- Cable type
- 7 wire plain strand cable or 7 wire spirally indented cable
- Length
- 237 mm
- Weight
- 1 kg
