DT1232i

Sandvik DT1232i is a fully automated i-series tunneling jumbo. With three electro-hydraulic booms and a high frequency rock drill RD535, you’ll achieve fast, accurate drilling in tunneling and cavern excavations.

Features

SB160i instrumented boom

Featuring a front wrist structure, the 3 meter telescopic SB160i boom provides 1 meter additional side coverage, extending to 4 meters with telescopic adjustment. It uses a fully-proportional boom control for fast and precise manual boom handling (automated controls available in the Platinum package option).

SB160i instrumented boom

Featuring a front wrist structure, the 3 meter telescopic SB160i boom provides 1 meter additional side coverage, extending to 4 meters with telescopic adjustment. It uses a fully-proportional boom control for fast and precise manual boom handling (automated controls available in the Platinum package option).

Featuring a front wrist structure, the 3 meter telescopic SB160i boom provides 1 meter additional side coverage, extending to 4 meters with telescopic adjustment. It uses a fully-proportional boom control for fast and precise manual boom handling (automated controls available in the Platinum package option).
Ergonomic cabin

The vibration-dampened, FOPS-compliant cabin offers a comfortable, safe operator environment with great visibility, low noise and dust filtration while tramming and drilling.

Ergonomic cabin

The vibration-dampened, FOPS-compliant cabin offers a comfortable, safe operator environment with great visibility, low noise and dust filtration while tramming and drilling.

The vibration-dampened, FOPS-compliant cabin offers a comfortable, safe operator environment with great visibility, low noise and dust filtration while tramming and drilling.
Superior drilling accuracy

Alpha360 bits and GT38 rods are optimized for the powerful RD535 rock drill to produce greater drilling accuracy at higher speeds. Reduce drilling time and increase advance meters per cycle in your tunneling projects.

Superior drilling accuracy

Alpha360 bits and GT38 rods are optimized for the powerful RD535 rock drill to produce greater drilling accuracy at higher speeds. Reduce drilling time and increase advance meters per cycle in your tunneling projects.

Alpha360 bits and GT38 rods are optimized for the powerful RD535 rock drill to produce greater drilling accuracy at higher speeds. Reduce drilling time and increase advance meters per cycle in your tunneling projects.
Precise & easy positioning

iNav Total Station option provides a more efficient and convenient way to navigate the jumbo in the tunnels. The operator can command the total station directly from the onboard user interface, the coordinate-based visualizations allow to verify the validity and accuracy of measured points, reducing the risk of errors.

Precise & easy positioning

iNav Total Station option provides a more efficient and convenient way to navigate the jumbo in the tunnels. The operator can command the total station directly from the onboard user interface, the coordinate-based visualizations allow to verify the validity and accuracy of measured points, reducing the risk of errors.

iNav Total Station option provides a more efficient and convenient way to navigate the jumbo in the tunnels. The operator can command the total station directly from the onboard user interface, the coordinate-based visualizations allow to verify the validity and accuracy of measured points, reducing the risk of errors.

Learn more about DT1232i features

Automated drilling

Sandvik DT1232i offers automated boom positioning and drilling functions with pre-planned drilling patterns. Combined with an extensive data collection and reporting system, you’ll have continuous control of productivity, quality and economy.

Improved exhaust filtration

DT1232i tunneling jumbo can be equipped with a new Stage V diesel motor (option), limiting particle matter and improving exhaust filtration by 40%.

AT-Pipe Umbrella

Use the optional AT-Pipe Umbrella system in weak ground conditions to increase stability and safety and create reliable support before excavation begins.

DrillConnect app connectivity

The jumbo features DrillConnect app connectivity, allowing for easy automatic up-and-down data transfer.

Product specifications

Download DT1232i specification sheet (PDF)

My Sandvik

DT1232i operating manual and spare parts

Operating manuals and spare parts can be found on the My Sandvik customer portal.

Go to My Sandvik

Coverage: 217.00 m²
Hole length: Up to 6.18 m
Tramming type and distance: Hydrodynamic transmission - Diesel engine - B6.7 (168 kW, Tier 4F, Stage V)
Number of booms: 3

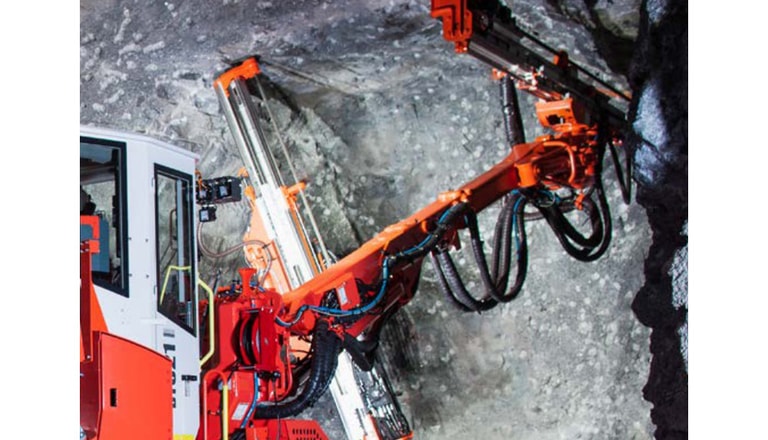

Feed length: Fixed TF535i 12 to 21 ft. or telescopic TFX 12-18 ft.
Hole diameter (face drilling): 45 - 64 mm
Hole diameter (cut hole): 76 - 127 mm
Rock drill: RD535 31kW
Controls type: SICA (Sandvik Intelligent Control System Architecture)
Weight: 51,500 kg (depending on options)

Watch DT1232i in action

Related Products and Services

Parts and components

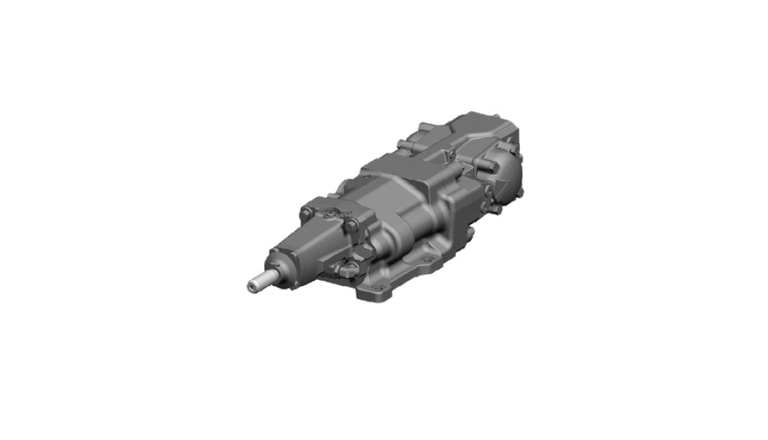

Rock drills
