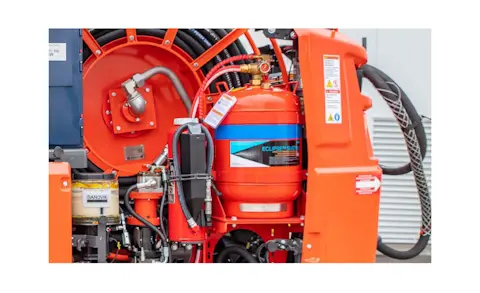

Eclipse™ fire suppression for underground drills

Sandvik Eclipse™ is a crucial component of your safety management system to protect people, investments and equipment.

Description

From diesel fuels to hydraulic fluids, heavy equipment depends on flammable liquids to keep moving. The dangers associated with underground mine fires are multifaceted, often leading to devastating consequences. These fires can produce toxic gases, such as carbon monoxide and hydrogen sulphide, which can cause respiratory failure and even death. In addition, , the intense heat generated by these fires can lead to the collapse of mine structures, trapping miners and hindering rescue efforts.

Sandvik Eclipse™ is a crucial component of your safety management system to protect people, investments and equipment. Sandvik Eclipse™ fire suppression systems are designed and tested to meet the most stringent requirements of fire protection on mobile and transportable equipment, including underground drilling applications.

Compared to traditional dry powder systems, Eclipse™ is up to 30 percent more effective on super-heated surfaces. Our Sandvik system is equipped with liquid agents to attack all the elements a fire needs to ignite - heat, fuel and oxygen (fire triangle).

Automatic activation is a standard feature and the rapid cooling effect blocks the risk of re-ignition. The engine is also automatically shut-down.
The system is very efficient to service and maintain and can be installed on new or existing equipment - regardless of size or brand.

Sandvik Eclipse™ It is available in two versions to suit global application:
Sandvik Eclipse™ Sustain is suitable for climates 0°C to + 60°C. The tank contains foam concentrate and water solution. The mixture is fluorine free making it environmentally sustainable.

Sandvik Eclipse™ Extreme is suitable for climates - 40°C to + 60°C. The tank contains a pre-mixed liquid agent for the harshest of environments.
The reliable automatic activation concept and system hardware remains identical between Eclipse™ Sustain and Eclipse™ Extreme.

Eclipse™ is a smart way to reduce the risk of injuries, production loss, costly repairs and replacements. Design flexibility and a range of different tank sizes make it possible to install Eclipse™ on a wide range of mobile plants and equipment.
Advantages

-Fully automated activation (loss-of-pressure activation) and engine shutdown standard on all systems.
-Foam fire extinguishing cutting off oxygen, vapor sealing and cooling down superheated surfaces (such as turbo charger and engine manifold).
-Quick and efficient on site discharge testing and servicing.
-Quick recharge times for productivity
Customer values

-Increase safety.
-System 30% more efficient compared to traditional dry powder systems.
-Easy testing and services procedures.
-Increase machine availability (productivity).

Product specifications

Application area: Safety and environmental improvement
Underground drill rigs & Bolters: Sandvik DD530 / Sandvik DD531 / Sandvik DD421 / Sandvik DL432i / Sandvik DL431 / Sandvik DL331 / Sandvik DL421 / Sandvik DL411 / Sandvik DU412i / Sandvik DL321 / Sandvik DL422iE / Sandvik DS311 / Sandvik DS512i / Sandvik DS520 / Sandvik DS421 / Sandvik DS310 / Sandvik DS420 / Sandvik DS511 / Sandvik DS422i / Sandvik DS510 / Sandvik DS411 / Sandvik DS412i / Sandvik Robolt LP-M / Sandvik DL210 / Sandvik DS2711 / Sandvik DS410 / Sandvik DS211L-M / Sandvik DD311 / Sandvik DS412iE / Sandvik DS211L-V / Sandvik DS210L-V / Sandvik DS312 / Sandvik DS221L / Sandvik DS2710 / Sandvik DS210L-M / Sandvik DL430 / Sandvik DL420 / Sandvik DD422iE / Sandvik DD422i / Sandvik DD420 / Sandvik DL410 / Sandvik DL330 / Sandvik DL230L / Sandvik DL311 / Sandvik DD211L-V / Sandvik DD320 / Sandvik DD321 / Sandvik DD410 / Sandvik DD411 / Sandvik DD310 / Sandvik DD210L / Sandvik DD211L / Sandvik DD220L / Sandvik DL230 / Sandvik DL2710 / Sandvik DL2711 / Sandvik DL2720 / Sandvik DL2721 / Sandvik DL310 / Sandvik DL320 / Sandvik DB311 / Sandvik DB331 / Sandvik DD210 / Sandvik DD212 / Sandvik DD2710 / Sandvik DD2711 / Sandvik Axera LP / Sandvik Access Rig / Sandvik DD210L-V / Sandvik Hybrid Bolter / Sandvik DD320S / Sandvik DL422i / Sandvik DD212i / Sandvik DD312i / Sandvik DD322i / Sandvik DL230L-5 / Sandvik DU422i-W
