Automatic Resin Capsules Injection System (ARI) for bolters

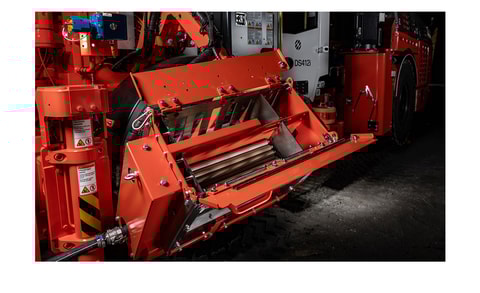

Sandvik Automatic Resin Capsules Injection System (ARI) is a system for easy loading and injecting of resin capsules. It is fully tested and optimized for Fasloc® resin capsules.

  • Description

    Resin capsules ensure strong and durable bonds between rock bolts and the surrounding rock, providing critical support and stability. The capsules are designed for precise resin mixing and quick curing, and facilitate rapid installation, delivering immediate reinforcement in demanding underground environments.

    Sandvik ARI is an automatic system which enables a bolting operator to load and inject resin capsules into boreholes before rock bolt installation.

    Equipped with two separate storages for fast set and low set capsules, ARI allows the operator to customize the capsules sequence. It can contain up to 90 capsules, with a diameter of 20-32 mm and up to 600 mm length. If only one type of capsule is needed, the system’s autonomy is therefore doubled. The number and sequence of capsules can be either programmed for all or part of the shift, or realised manually for each bolt, insuring the correct quantity of resin is injected for each hole.

    ARI is fully tested and optimized for Fasloc® resin capsules.

  • Advantages

    -ARI allows easy loading from ground level and automatic injection of resin capsules.
    -User interface is fully integrated to the main display on i-rock bolters.
    -It is fully tested and optimized for Fasloc® resin capsules.

  • Customer values

    -Increase productivity by shortening the resin grouted bolt installation process.
    -Improve safety by insuring the correct amount of resin is injected for each bolt.
    -Provide operator comfort with fully integrated user interface on i-rock bolters.

Product specifications

Application area
Productivity improvement
Underground drill rigs & Bolters
