Top hammer rock drills
RD414
- Hole size
- 45 - 76 mm
- Percussion power
- 14 kW
- Percussion rate
- 56 - 78 Hz

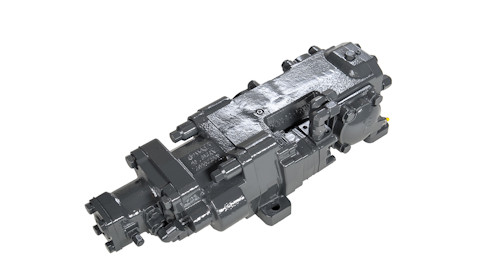

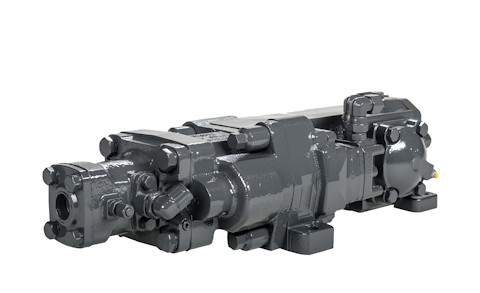

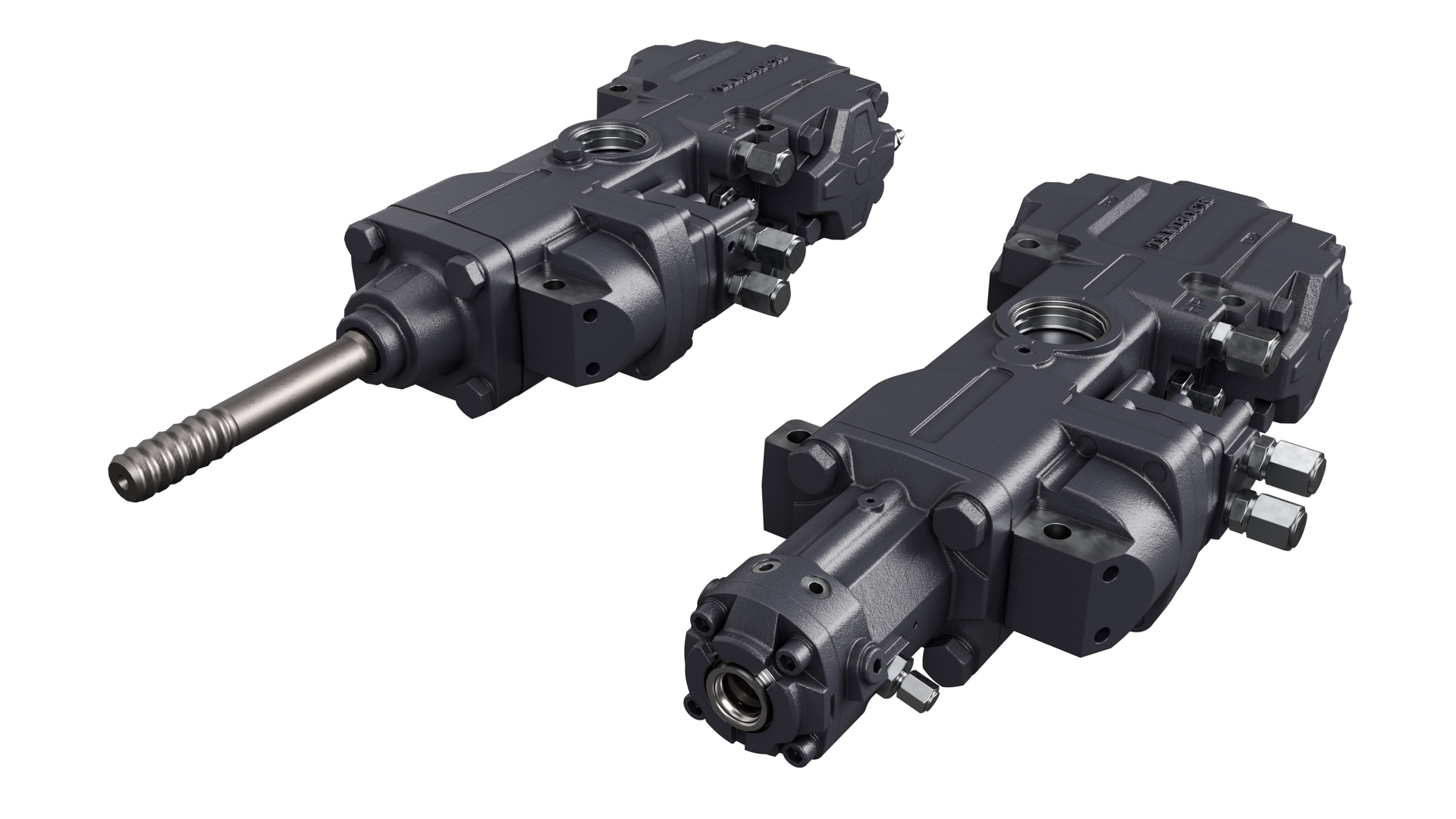

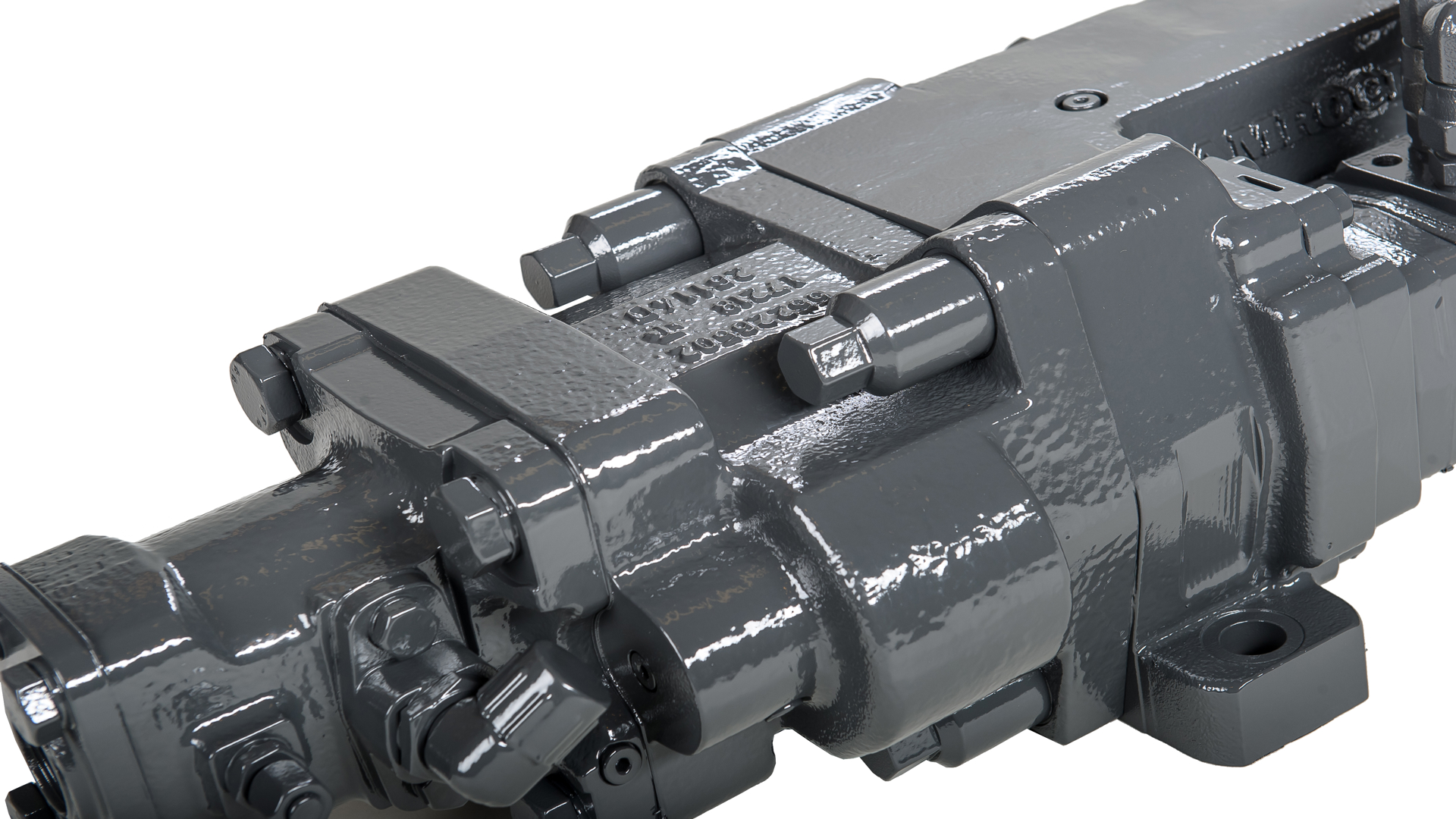

Sandvik RD414 is a versatile hydraulic rock drill designed for long-hole drilling with water or air flushing. The modular design makes it ideal for underground and surface drill rigs.
Features
-
Range of drilling options
Sandvik RD414 rock drill has a simple modular design that provides operators with a range of options for long-hole drilling.
Range of drilling options
Sandvik RD414 rock drill has a simple modular design that provides operators with a range of options for long-hole drilling.
Sandvik RD414 rock drill has a simple modular design that provides operators with a range of options for long-hole drilling.
-
Built-in stabilizer
Equipped with a stabilizer, RD414 operators have better control contact between the drill bit and rock.
Built-in stabilizer
Equipped with a stabilizer, RD414 operators have better control contact between the drill bit and rock.
Equipped with a stabilizer, RD414 operators have better control contact between the drill bit and rock.
-
Increased tool life
The modular design and drill bit stabilizer work together to increase the tool service life and ensure optimal drilling performance.
Increased tool life
The modular design and drill bit stabilizer work together to increase the tool service life and ensure optimal drilling performance.
The modular design and drill bit stabilizer work together to increase the tool service life and ensure optimal drilling performance.
Product specifications
Downloads
RD414 operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Hole size
- 45 - 76 mm
- Percussion power
- 14 kW
- Percussion rate
- 56 - 78 Hz
- Percussion pressure
- 110 - 220 bar
- Rotation (max.)
- 160 bar
- Hole size
- 45 - 76 mm
- Percussion power
- 14 kW
- Percussion rate
- 56 - 78 Hz
- Percussion pressure
- 110 - 220 bar
- Rotation (max.)
- 160 bar
- Rotation motor types
- OMS 160, OMS 200
- Weight
- 180 kg
