RD315
Request a quote
Top hammer rock drills
RD315
- Hole size
- 43 - 51 mm
- Percussion power
- 15 kW
- Percussion rate
- 95 Hz

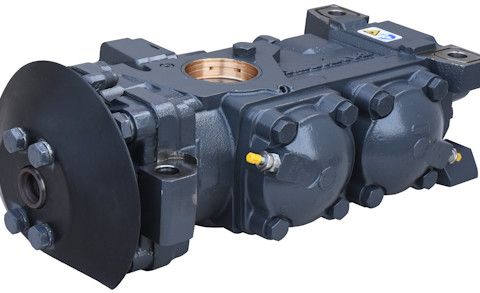

Sandvik RD315 is a universal hydraulic rock drill designed for bolting and face drilling rigs, compatible with electrically-controlled, hydraulically-controlled Sandvik drill rigs. It offers a high penetration rate, excellent hydraulic efficiency and a service interval of 500 percussion hours.
Features
-
Designed for rock bolting
Sandvik RD315 excels at bolting applications. With RD314 on the drilling line and RD315 on the bolting line, operators will see bolting operation productivity increase up to 50%
Designed for rock bolting
Sandvik RD315 excels at bolting applications. With RD314 on the drilling line and RD315 on the bolting line, operators will see bolting operation productivity increase up to 50%
Sandvik RD315 excels at bolting applications. With RD314 on the drilling line and RD315 on the bolting line, operators will see bolting operation productivity increase up to 50%
-
Compact design
Sandvik RD315’s compact design allows for simplified features and lower maintenance costs. Its modular construction and visual wear indicators ensure the drill has good serviceability and longevity.
Compact design
Sandvik RD315’s compact design allows for simplified features and lower maintenance costs. Its modular construction and visual wear indicators ensure the drill has good serviceability and longevity.
Sandvik RD315’s compact design allows for simplified features and lower maintenance costs. Its modular construction and visual wear indicators ensure the drill has good serviceability and longevity.
-
Optimized structure
Thanks to the drill's optimized structure, bolting productivity is increased by up to 50%.
Optimized structure
Thanks to the drill's optimized structure, bolting productivity is increased by up to 50%.
Thanks to the drill's optimized structure, bolting productivity is increased by up to 50%.
Product specifications
RD315 operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Hole size
- 43 - 51 mm
- Percussion power
- 15 kW
- Percussion rate
- 95 Hz
- Percussion pressure
- 100 - 180 bar
- Rotation (max.)
- 175 bar
- Hole size
- 43 - 51 mm
- Percussion power
- 15 kW
- Percussion rate
- 95 Hz
- Percussion pressure
- 100 - 180 bar
- Rotation (max.)
- 175 bar
- Rotation motor types
- 125cc
- Weight
- 126 kg
