RD314
Request a quote
Top hammer rock drills
RD314
- Hole size
- 43 - 51 mm
- Percussion power
- 14 kW
- Percussion rate
- 110 Hz

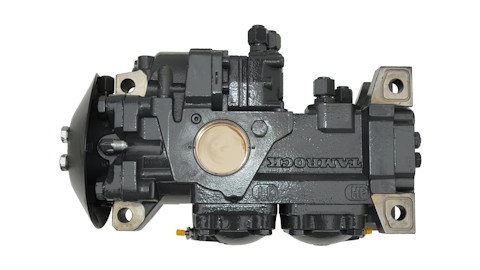

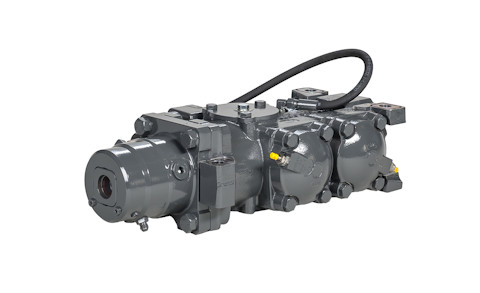

Sandvik RD314 is a compact percussive rock drill, with a high hydraulic efficiency and penetration rate, designed for bolting and face drilling rigs.
Features
-
Compact design
Sandvik RD314 offers a compact, robust and adaptable design that performs well in confined spaces. Hydraulic efficiency and high penetration rate allow operators to achieve remarkable drilling results even in challenging rock formations.
Compact design
Sandvik RD314 offers a compact, robust and adaptable design that performs well in confined spaces. Hydraulic efficiency and high penetration rate allow operators to achieve remarkable drilling results even in challenging rock formations.
Sandvik RD314 offers a compact, robust and adaptable design that performs well in confined spaces. Hydraulic efficiency and high penetration rate allow operators to achieve remarkable drilling results even in challenging rock formations.
-
Range of options

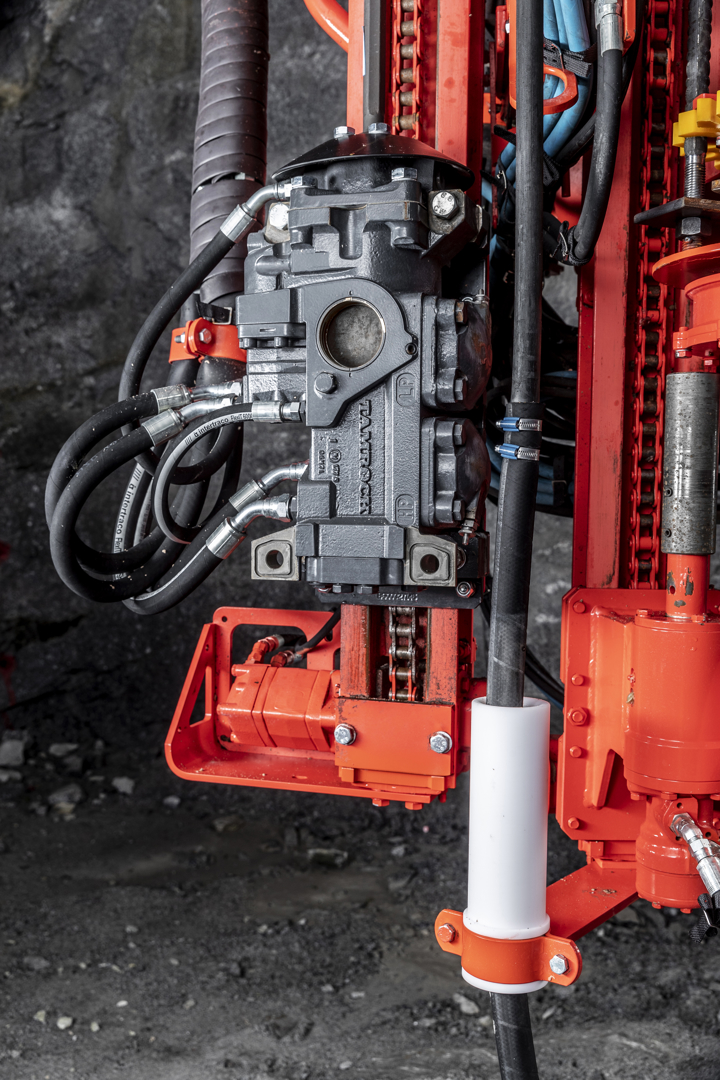

Sandvik RD314’s purpose-built design and features make it a reliable, efficient tool for bolting and face drilling rigs. Its precision and performance contribute to the productivity and success of these specialized drill applications.
Range of options
Sandvik RD314’s purpose-built design and features make it a reliable, efficient tool for bolting and face drilling rigs. Its precision and performance contribute to the productivity and success of these specialized drill applications.
Sandvik RD314’s purpose-built design and features make it a reliable, efficient tool for bolting and face drilling rigs. Its precision and performance contribute to the productivity and success of these specialized drill applications.
-

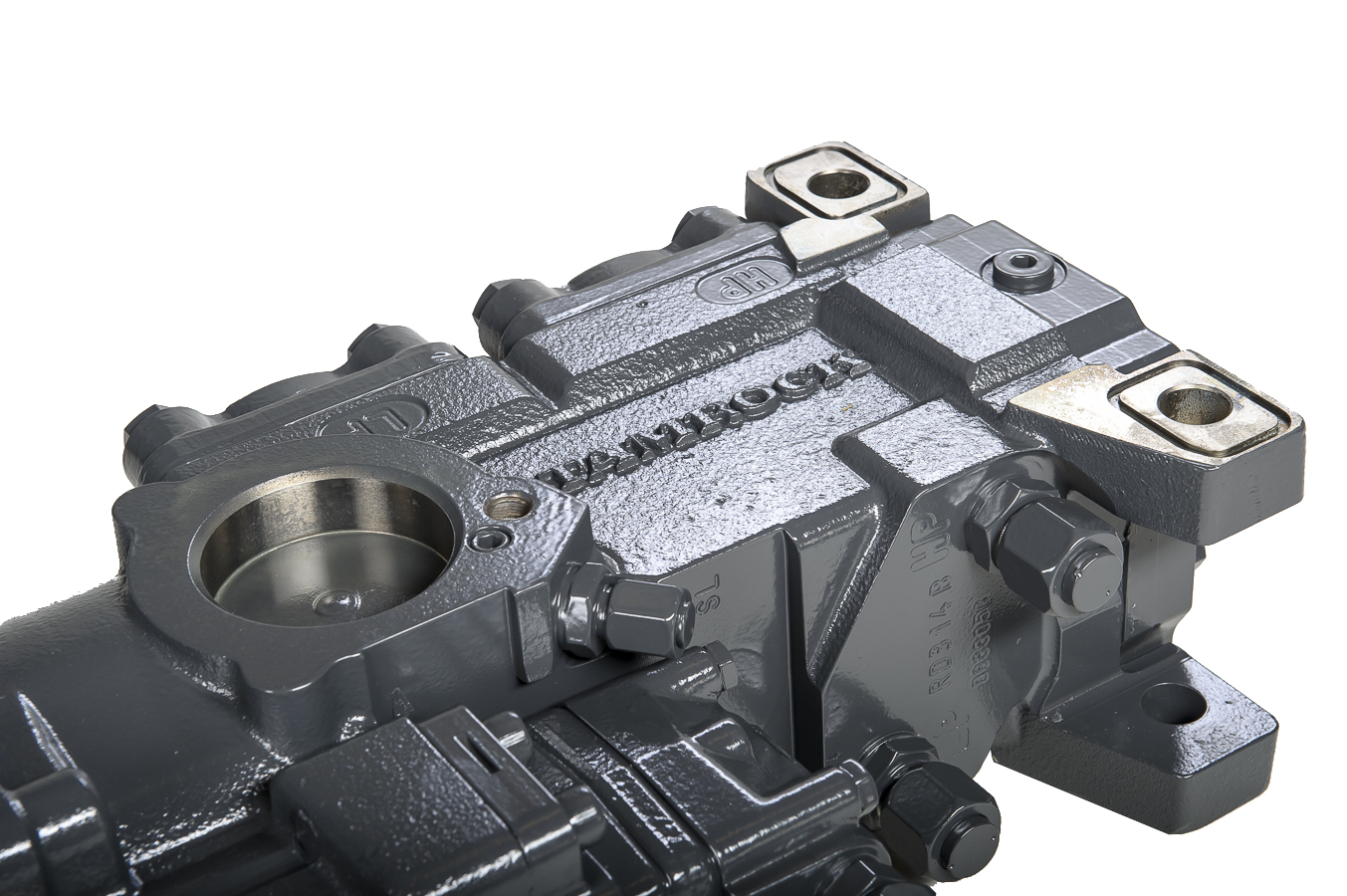

Optimized construction
Sandvik RD314’s modular construction and visual wear indicators ensure excellent serviceability, with service intervals of 500 percussion hours.
Optimized construction
Sandvik RD314’s modular construction and visual wear indicators ensure excellent serviceability, with service intervals of 500 percussion hours.
Sandvik RD314’s modular construction and visual wear indicators ensure excellent serviceability, with service intervals of 500 percussion hours.
Product specifications
Downloads
RD314 operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Hole size
- 43 - 51 mm
- Percussion power
- 14 kW
- Percussion rate
- 110 Hz
- Percussion pressure
- 120 - 180 bar
- Rotation (max.)
- 175 bar
- Hole size
- 43 - 51 mm
- Percussion power
- 14 kW
- Percussion rate
- 110 Hz
- Percussion pressure
- 120 - 180 bar
- Rotation (max.)
- 175 bar
- Rotation motor types
- OMS 100, OMS 125
- Weight
- 127 kg
