HL1060T
Request a quote
Top hammer rock drills
HL1060T
- Hole size
- 89 - 152 mm
- Percussion power
- 25 kW
- Percussion rate
- 38 Hz

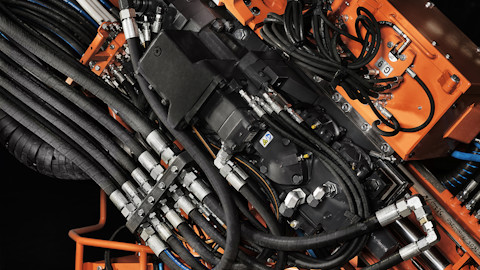

Sandvik HL1060T hydraulic rock drill is designed for surface drills and underground longhole drills. It is compatible with Pantera and DP1100i drill rigs and has a hydraulic actuator to control contact between the drill bit and rock.
-
Robust rock drill
This heavy-duty drill features independent rotations and separate flushing, which ensure maximum reliability. The equipped stabilizer controls rock/bit contact, achieving optimal drilling performance and a high drill steel lifetime.
Robust rock drill
This heavy-duty drill features independent rotations and separate flushing, which ensure maximum reliability. The equipped stabilizer controls rock/bit contact, achieving optimal drilling performance and a high drill steel lifetime.
This heavy-duty drill features independent rotations and separate flushing, which ensure maximum reliability. The equipped stabilizer controls rock/bit contact, achieving optimal drilling performance and a high drill steel lifetime.
-
Power extractor
The optional tube and rod power extractor enable the drill’s piston to hit the shank during pullback, transmitting percussive stress waves to the drill’s rods.
Power extractor
The optional tube and rod power extractor enable the drill’s piston to hit the shank during pullback, transmitting percussive stress waves to the drill’s rods.
The optional tube and rod power extractor enable the drill’s piston to hit the shank during pullback, transmitting percussive stress waves to the drill’s rods.
-
Range of rock drill versions
Different rock drill versions are realized through various optional modules, including a tube flushing device, T51 rods, 60 mm rods, tubes/rods power extractor and alternative rotation motor types.
Range of rock drill versions
Different rock drill versions are realized through various optional modules, including a tube flushing device, T51 rods, 60 mm rods, tubes/rods power extractor and alternative rotation motor types.
Different rock drill versions are realized through various optional modules, including a tube flushing device, T51 rods, 60 mm rods, tubes/rods power extractor and alternative rotation motor types.
Product specifications
HL1060T operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Hole size
- 89 - 152 mm
- Percussion power
- 25 kW
- Percussion rate
- 38 Hz
- Percussion pressure
- 90 - 160 bar
- Rotation (max.)
- 160 bar
- Hole size
- 89 - 152 mm
- Percussion power
- 25 kW
- Percussion rate
- 38 Hz
- Percussion pressure
- 90 - 160 bar
- Rotation (max.)
- 160 bar
- Rotation motor types
- OMT 400, OMT 500
- Weight
- 470 kg
