Surface top hammer drill rigs

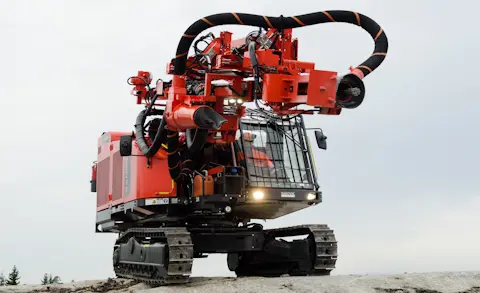

Ranger™ DX600
- Hole diameter
- 64.0 - 102.0 mm (2.5 - 4.0 in.)
- Rock drill
- 18 kW
- Flushing air capacity
- 6.2 m³/min up to 10 bar
Ranger™DX600 is a hydraulic, self-propelled and crawler-based surface rig with an ergonomic cabin and rod handling system. Typical applications include road cutting, pipeline drilling, foundation drilling and production drilling in medium size quarries.
Features
-
Revolving superstructure
Ranger™ DX600 features a revolving superstructure for large drilling coverage area of 17.6 m² (optionally 26.4 m²).
-
Stable and powerful tramming
Ranger™ DX600’s innovative counterweight solution affords powerful tramming and excellent stability on the toughest terrain. The ROPS and FOPS-certified cabin enhances operator safety.
-
Straight holes and fast penetration
Rock Pilot+ drilling control system allows for solid rock contact, straight holes and fast penetration in varying rock conditions.
Learn more about Ranger™ DX600 features
Operator safety and experience
Ranger™ DX600 features an ergonomic, high-visibility cabin and a rod handling system, prioritizing operator safety and experience.
Cut downtime and unnecessary maintenance costs
Decrease maintenance downtime and related costs through DX600’s high suction capacity dust collectors.
Product specifications
Ranger™ DX600 operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Hole diameter
- 64.0 - 102.0 mm (2.5 - 4.0 in.)
- Rock drill
- 18 kW
- Flushing air capacity
- 6.2 m³/min up to 10 bar
- Drill rod/tube diameter
- 38, 45 or 51 mm (1.5, 1.75 or 2 in.)
- Hydraulic rock drill
- HL650 (17.5 kW)
- Engine
- Caterpillar C7.1, 168 kW (225 hp) / 1 800 rpm (Tier 3 / Tier 4F /Stage V)
- Cabin
- Ergo cool
- Transport length
- 10.7 m (33.0 ft)
- Transport width
- 2.50 m (8.00 ft)
- Transport height
- 3.6 m (11.8 ft)
- Weight
- 15,600 kg (34,392 lb)
