RD525
Request a quote
Top hammer rock drills
RD525
- Hole size
- 43 - 64 mm
- Percussion power
- 25 kW
- Percussion rate
- 93 Hz

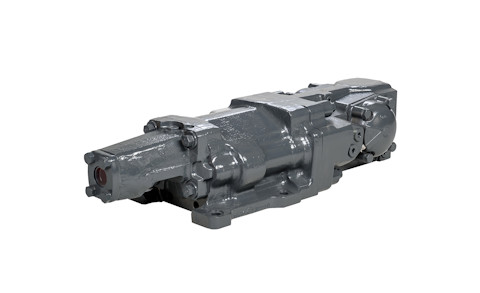

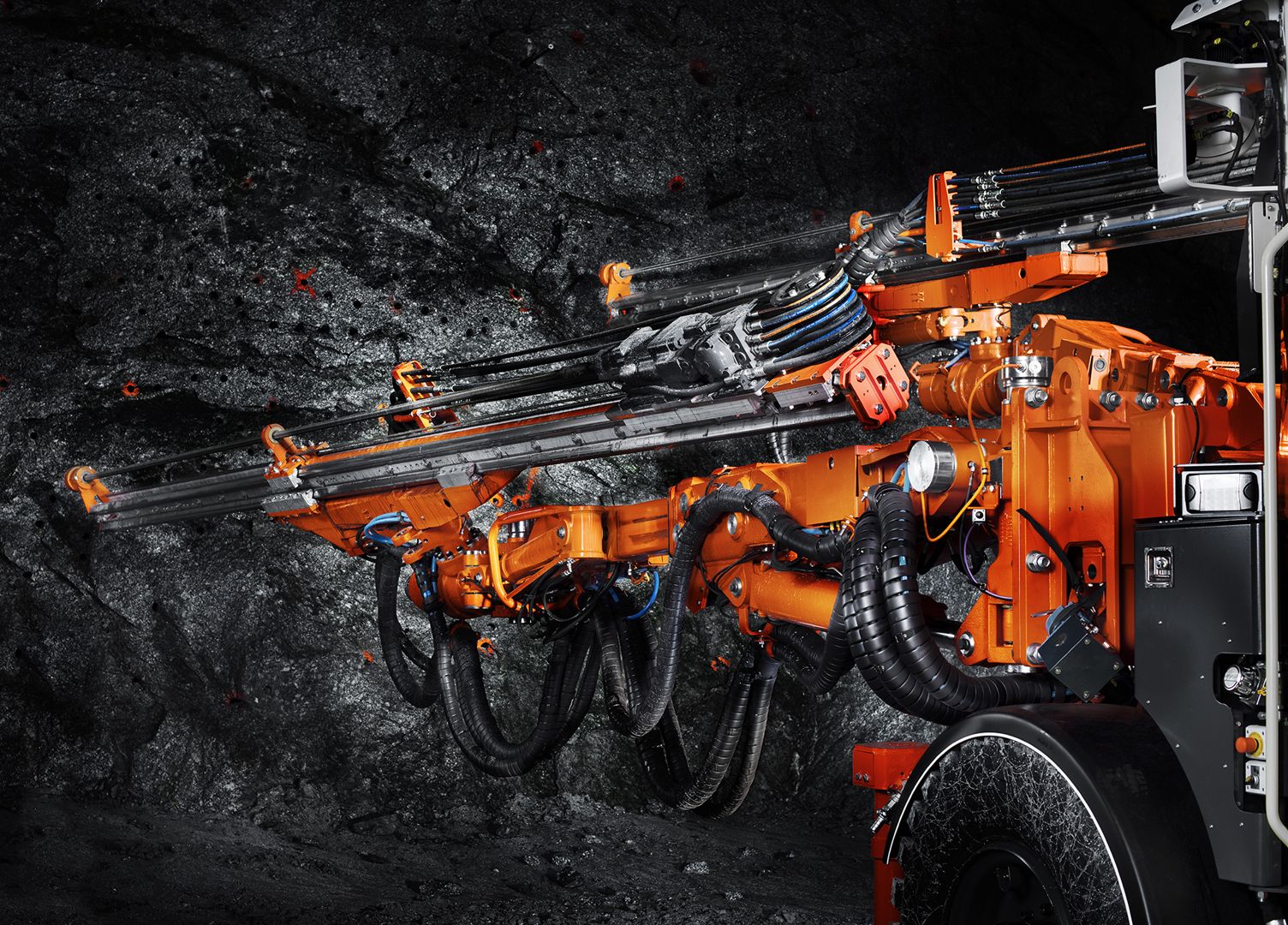

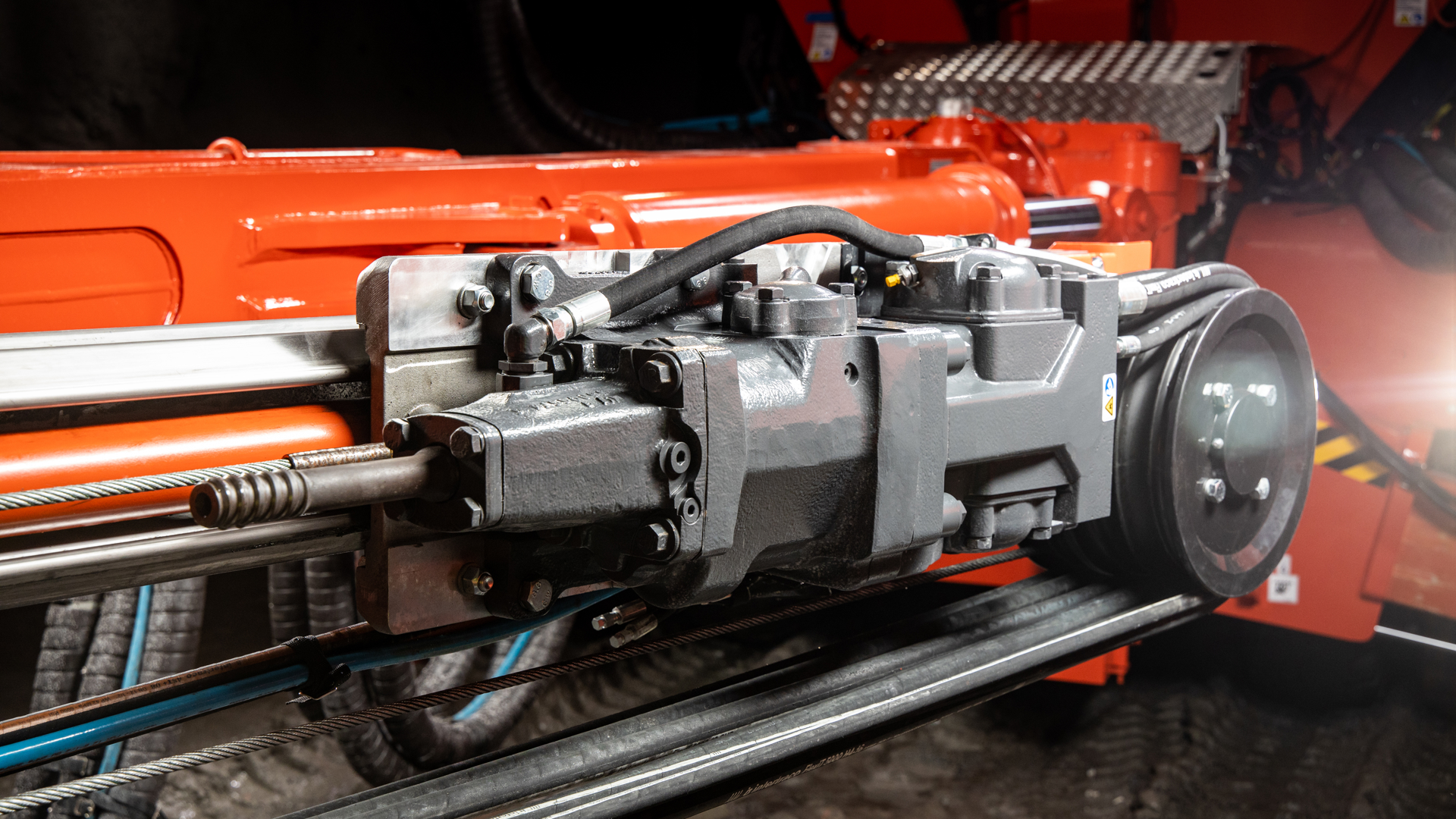

Sandvik RD525 hydraulic rock drill is engineered for face drilling applications in Sandvik mine development and tunneling jumbos. It is versatile, with suitability for bolt-hole, exploration and injection hole drilling tasks, with a sleek design for close reach near walls.
Features
-
High penetration and performance

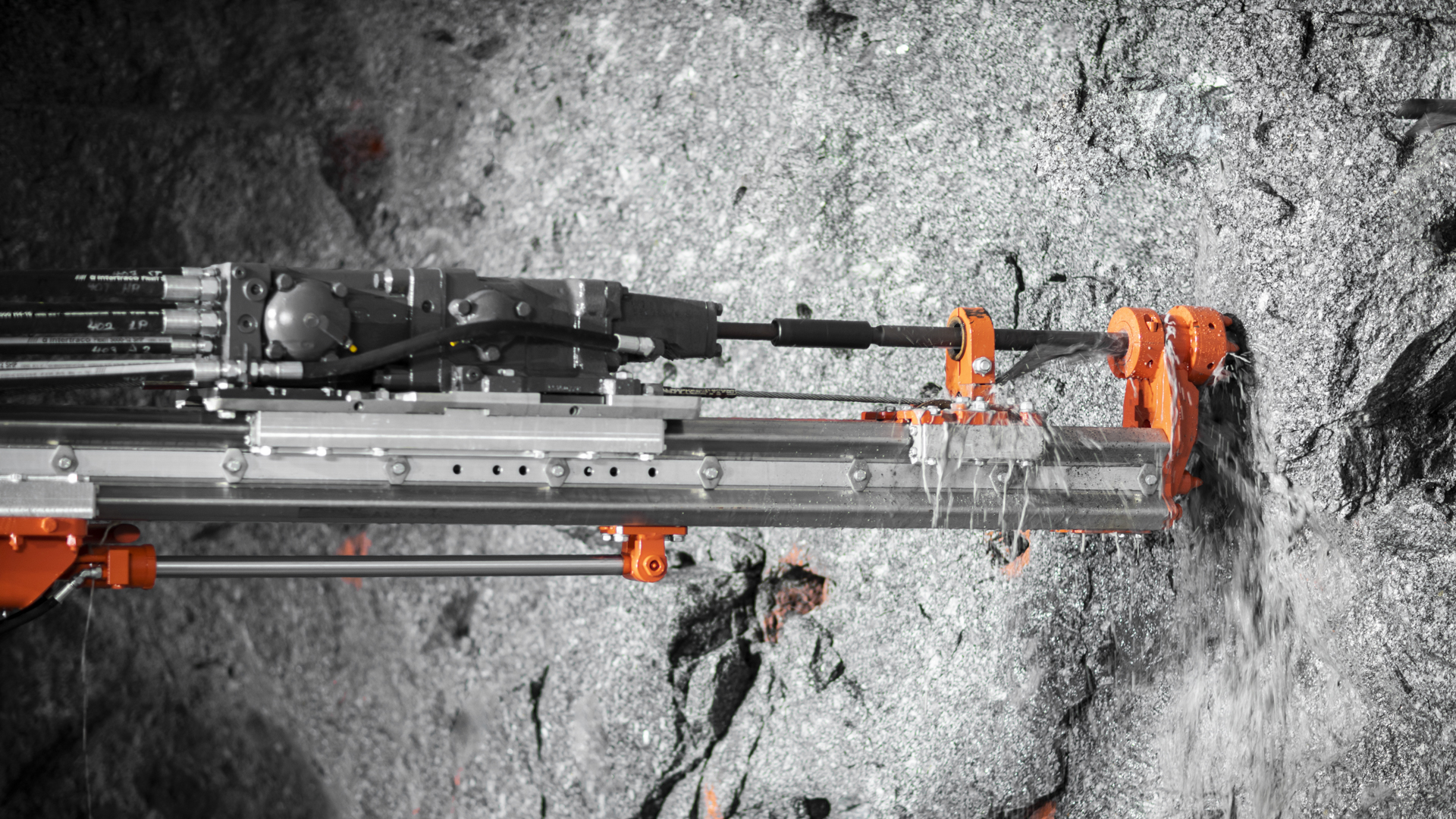

Sandvik RD525 rock drill provides an optimal penetration rate, hydraulic efficiency and overall high performance. A reliable choice for diverse drilling applications.
High penetration and performance
Sandvik RD525 rock drill provides an optimal penetration rate, hydraulic efficiency and overall high performance. A reliable choice for diverse drilling applications.
Sandvik RD525 rock drill provides an optimal penetration rate, hydraulic efficiency and overall high performance. A reliable choice for diverse drilling applications.
-
Sleek design

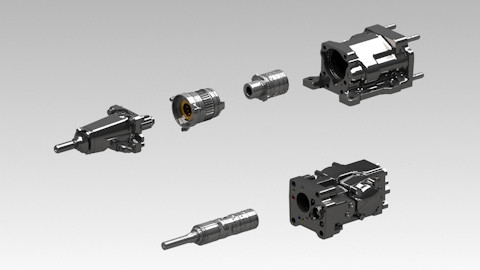

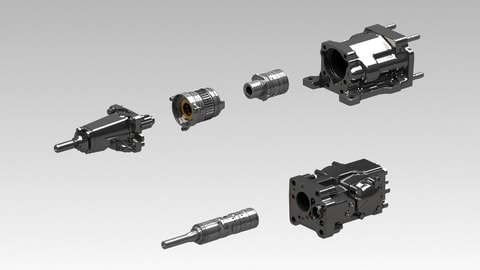

RD520 has a modular construction and visual wear indicators. It features very few pressurized seams between the functional modules, which increases drilling speed and reduces downtime. The rock drill offers performance with economical running costs.
Sleek design
RD520 has a modular construction and visual wear indicators. It features very few pressurized seams between the functional modules, which increases drilling speed and reduces downtime. The rock drill offers performance with economical running costs.
RD520 has a modular construction and visual wear indicators. It features very few pressurized seams between the functional modules, which increases drilling speed and reduces downtime. The rock drill offers performance with economical running costs.
-
Longer service interval

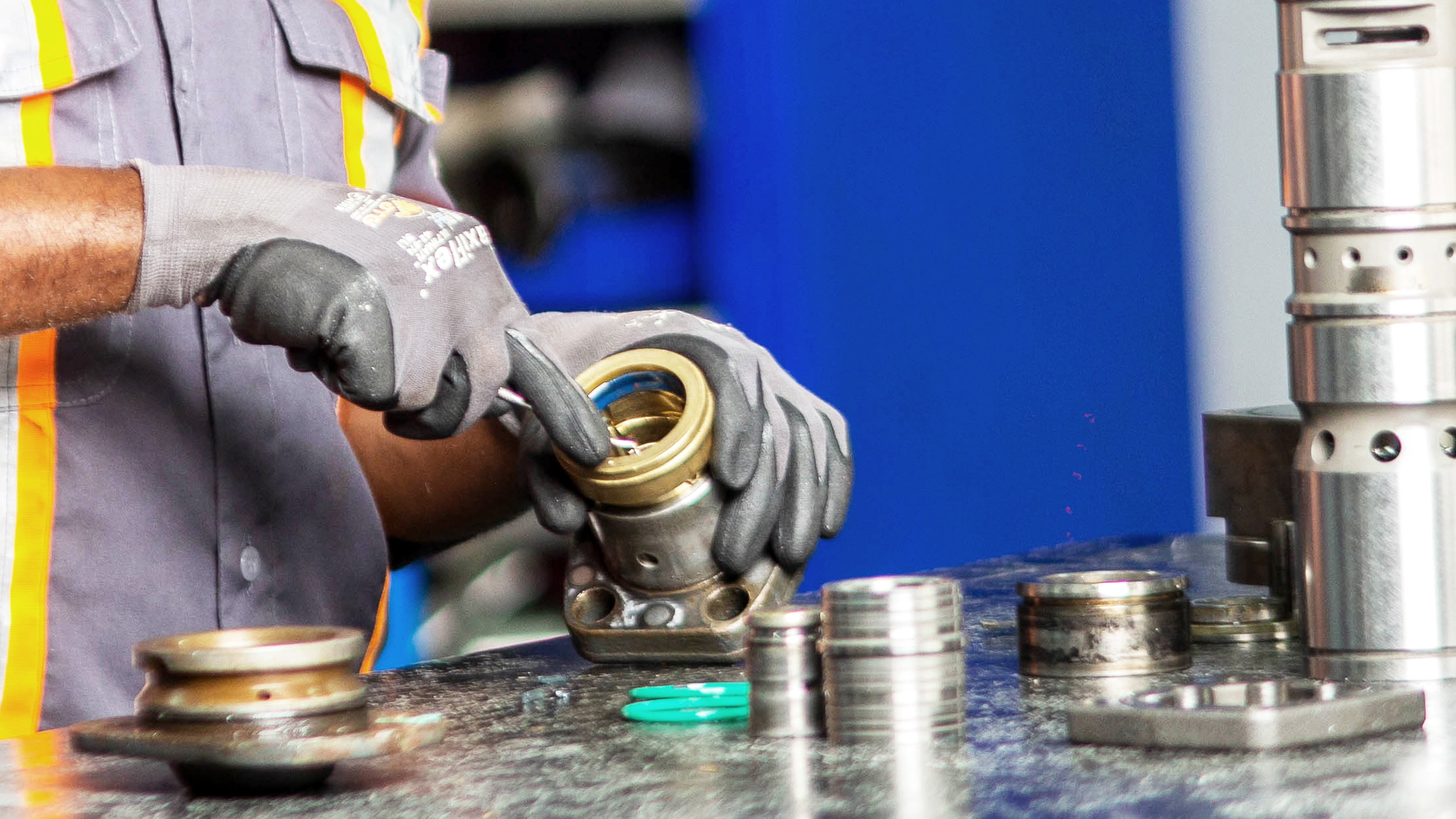

The rock drill can be updated to the latest year model with an upgrade kit that further improves the reliability, enabling a longer service interval.
Longer service interval
The rock drill can be updated to the latest year model with an upgrade kit that further improves the reliability, enabling a longer service interval.
The rock drill can be updated to the latest year model with an upgrade kit that further improves the reliability, enabling a longer service interval.
Product specifications
Downloads
RD525 operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Hole size
- 43 - 64 mm
- Percussion power
- 25 kW
- Percussion rate
- 93 Hz
- Percussion pressure
- 100 - 235 bar
- Rotation (max.)
- 175 bar
- Hole size
- 43 - 64 mm
- Percussion power
- 25 kW
- Percussion rate
- 93 Hz
- Percussion pressure
- 100 - 235 bar
- Rotation (max.)
- 175 bar
- Rotation motor types
- OMS 80, OMS 125, OMS 160
- Weight
- 225 kg
