DL422iE: Sandvik electric efficiency in underground drilling

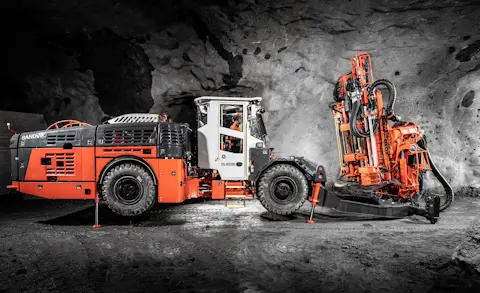

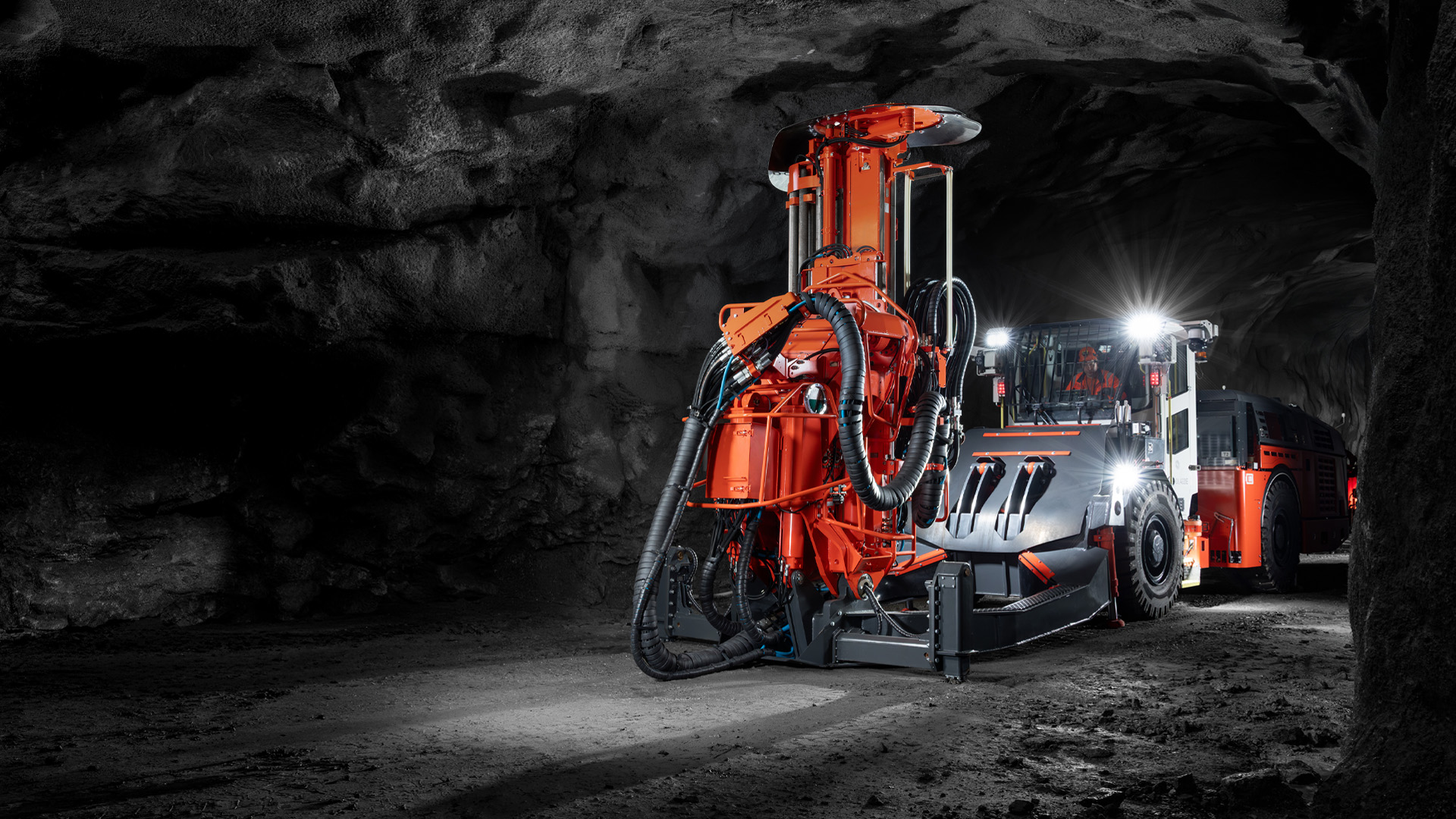

Sandvik DL422iE is a fully automated, battery-powered top hammer longhole drill, designed for underground mass mining in 4 x 3.5 meters (H x W) or larger production drifts. It reduces emissions while tramming, creating a healthier and safer working environment.

Features

Zero emissions while tramming

DL422iE is equipped with an electric driveline system including a battery package and electric motor for zero emissions while tramming. It also helps reduce thermal load and ventilation requirements underground.

Zero emissions while tramming

DL422iE is equipped with an electric driveline system including a battery package and electric motor for zero emissions while tramming. It also helps reduce thermal load and ventilation requirements underground.

DL422iE is equipped with an electric driveline system including a battery package and electric motor for zero emissions while tramming. It also helps reduce thermal load and ventilation requirements underground.
i-Class Control System

i-Class Control System enables advanced mine automation and teleremote solutions. Fully compatible with My Sandvik and AutoMine® systems.

i-Class Control System

i-Class Control System enables advanced mine automation and teleremote solutions. Fully compatible with My Sandvik and AutoMine® systems.

i-Class Control System enables advanced mine automation and teleremote solutions. Fully compatible with My Sandvik and AutoMine® systems.
Automatic drill bit changer

Part of the one-hole and fan automation offering, the optional automatic bit changer allows autonomous drilling of complete fans through shift changes. Revolver-type carousel capacity is 5 to 10 bits.

Automatic drill bit changer

Part of the one-hole and fan automation offering, the optional automatic bit changer allows autonomous drilling of complete fans through shift changes. Revolver-type carousel capacity is 5 to 10 bits.

Part of the one-hole and fan automation offering, the optional automatic bit changer allows autonomous drilling of complete fans through shift changes. Revolver-type carousel capacity is 5 to 10 bits.
Readiness for AutoMine® for Underground Drilling

AutoMine® for Underground Drilling is a tele-remote system enabling an operator to remotely control and simultaneously supervise a single or multiple automated Sandvik underground drills, in drilling and ring to ring tramming.

Readiness for AutoMine® for Underground Drilling

AutoMine® for Underground Drilling is a tele-remote system enabling an operator to remotely control and simultaneously supervise a single or multiple automated Sandvik underground drills, in drilling and ring to ring tramming.

AutoMine® for Underground Drilling is a tele-remote system enabling an operator to remotely control and simultaneously supervise a single or multiple automated Sandvik underground drills, in drilling and ring to ring tramming.
LFP chemistry

A retrofit kit allows to upgrade current SoNick drill rigs to LFP technology for improved performance.

LFP chemistry

A retrofit kit allows to upgrade current SoNick drill rigs to LFP technology for improved performance.

A retrofit kit allows to upgrade current SoNick drill rigs to LFP technology for improved performance.
Drill plan design

The longhole drill plan design can be done using Deswik UGDB. The plan is sent to the i-Series longhole drills directly or through Sandvik DrillConnect when connectivity is limited.

Drill plan design

The longhole drill plan design can be done using Deswik UGDB. The plan is sent to the i-Series longhole drills directly or through Sandvik DrillConnect when connectivity is limited.

The longhole drill plan design can be done using Deswik UGDB. The plan is sent to the i-Series longhole drills directly or through Sandvik DrillConnect when connectivity is limited.

Learn more about DL422iE features

ZR35 telescopic boom

The fully instrumented ZR35 telescopic boom offers accurate positioning and strong drilling stability.

Powerful HF1560ST Rock drill

With the powerful rock drill, you can achieve up to a 10% increase in the net penetration rate, improving drilling speed and efficiency.

Up to 20% higher equipment utilization

Teleremote drilling (option) allows for continuous, unmanned operation during shift changes/breaks to increase productivity and improve equipment utilization.

Product specifications

Download DL422iE(LFP)technical specification sheet (PDF)

Download BEV Drills brochure (PDF)

My Sandvik

DL422iE operating manual and spare parts

Operating manuals and spare parts can be found on the My Sandvik customer portal.

Go to My Sandvik

Boom coverage: 3 m
Hole length: Up to 54 m
Tramming type and distance: BEV - 5.3 km @ 5.5 km/h in 1:7 incline
Hole diameter: 76 - 127 mm
Boom type: Frame, horseshoe
Drift size (H x W): 4 x 3.5 m
Rod length: 1.22 - 1.83 m (4.00 - 6.00 ft)
Drilling power: HPP1560, 160kW
Controls type: iSOLO / SICA (Sandvik Intelligent Control System Architecture)
Automation and teleremote availability: One hole automation, fan automation (option), tele-remote drilling (option), tele-remote tramming (option), AutoMine® integration (option)
Weight: 33,000 kg (depending on options)

Boom coverage: 3 m
Hole length: Up to 54 m
Tramming type and distance: BEV - 5.3 km @ 5.5 km/h in 1:7 incline
Hole diameter: 76 - 127 mm
Boom type: Frame, horseshoe
Drift size (H x W): 4 x 3.5 m
Rod length: 1.22 - 1.83 m (4.00 - 6.00 ft)
Drilling power: HPP1560, 160kW
Controls type: iSOLO / SICA (Sandvik Intelligent Control System Architecture)
Automation and teleremote availability: One hole automation, fan automation (option), tele-remote drilling (option), tele-remote tramming (option), AutoMine® integration (option)
Weight: 33,000 kg (depending on options)

Watch DL422iE in action

Solid ground - Customer stories

Decarbonizing the mine

Mo i Rana, Dunderland Valley. Eyeing the future of mining, Rana Gruber is making a gear switch and replacing its entire underground diesel fleet with battery electric vehicles from Sandvik. The goal? Becoming the world’s first CO2 emission-free mine by the end of 2025.
