DL210

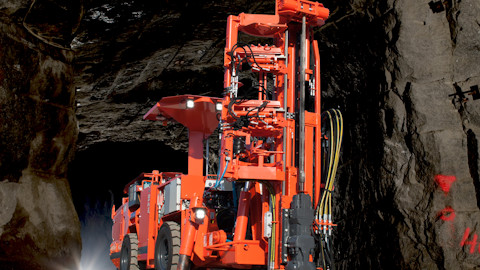

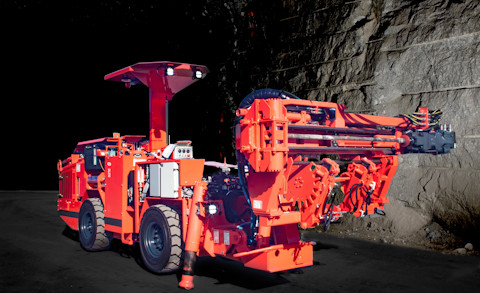

Sandvik DL210 is a compact and flexible longhole drill rig engineered for production drilling in narrow-vein underground mines. Designed for vertical and inclined plane rings and fans, it is capable of drilling holes with a diameter of 51 to 64 mm up to a depth of 20 meters.

Features

Accurate positioning

The robust and stable BSL360 longhole drilling boom has 1.5 m parallel drilling coverage and offers accurate positioning and sturdy feed anchorage, resulting in high-quality drilling.

Accurate positioning

The robust and stable BSL360 longhole drilling boom has 1.5 m parallel drilling coverage and offers accurate positioning and sturdy feed anchorage, resulting in high-quality drilling.

The robust and stable BSL360 longhole drilling boom has 1.5 m parallel drilling coverage and offers accurate positioning and sturdy feed anchorage, resulting in high-quality drilling.
Compact drill

The drill rig has a compact layout that is designed for good visibility and stability, increasing safety for the operator.

Compact drill

The drill rig has a compact layout that is designed for good visibility and stability, increasing safety for the operator.

The drill rig has a compact layout that is designed for good visibility and stability, increasing safety for the operator.
Easy access to service points

The service points are well protected but easy to access, speeding up maintenance and increasing productivity.

Easy access to service points

The service points are well protected but easy to access, speeding up maintenance and increasing productivity.

The service points are well protected but easy to access, speeding up maintenance and increasing productivity.

Learn more about DL210 features

Safe operating environment

The portable remote control ensures operator’s safety and improved visibilty when drilling for accurate control and hole set-up.

Product specifications

DL210 specification sheet (PDF)

My Sandvik

DL210 operating manual and spare parts

Operating manuals and spare parts can be found on the My Sandvik customer portal.

Go to My Sandvik

Boom coverage: 2 m
Hole length: Up to 20 m
Tramming type and distance: Hydrostatic transmission (diesel) D914L04 (55 kW Tier 4i Stage IIIA, MSHA)
Hole diameter: 51 - 64 mm
Boom type: Frame telescopic
Drift size (H x W): 2.7 x 2.7 m
Rod length: 0.90 - 1.50 m (3.00 - 5.00 ft)
Drilling power: HPP 545, 45 kW
Controls type: Umbilical remote control panel
Automation and teleremote availability: None
Weight: 8,900 kg (depending on options)
