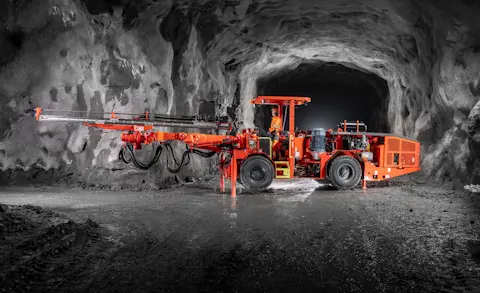

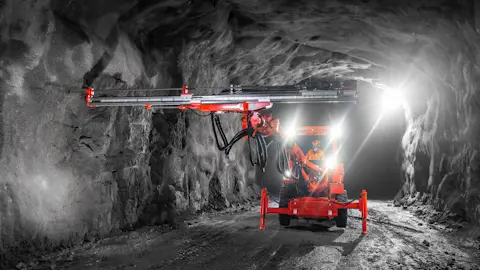

Sandvik DD311: accurate drilling solutions

Sandvik DD311 is available in three different versions, including DD311D and DD311DE. It is a medium size, single-boom jumbo designed for fast and accurate drilling within drifting and tunneling of 40 m² sections.

Features

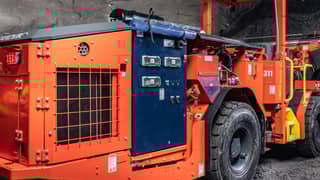

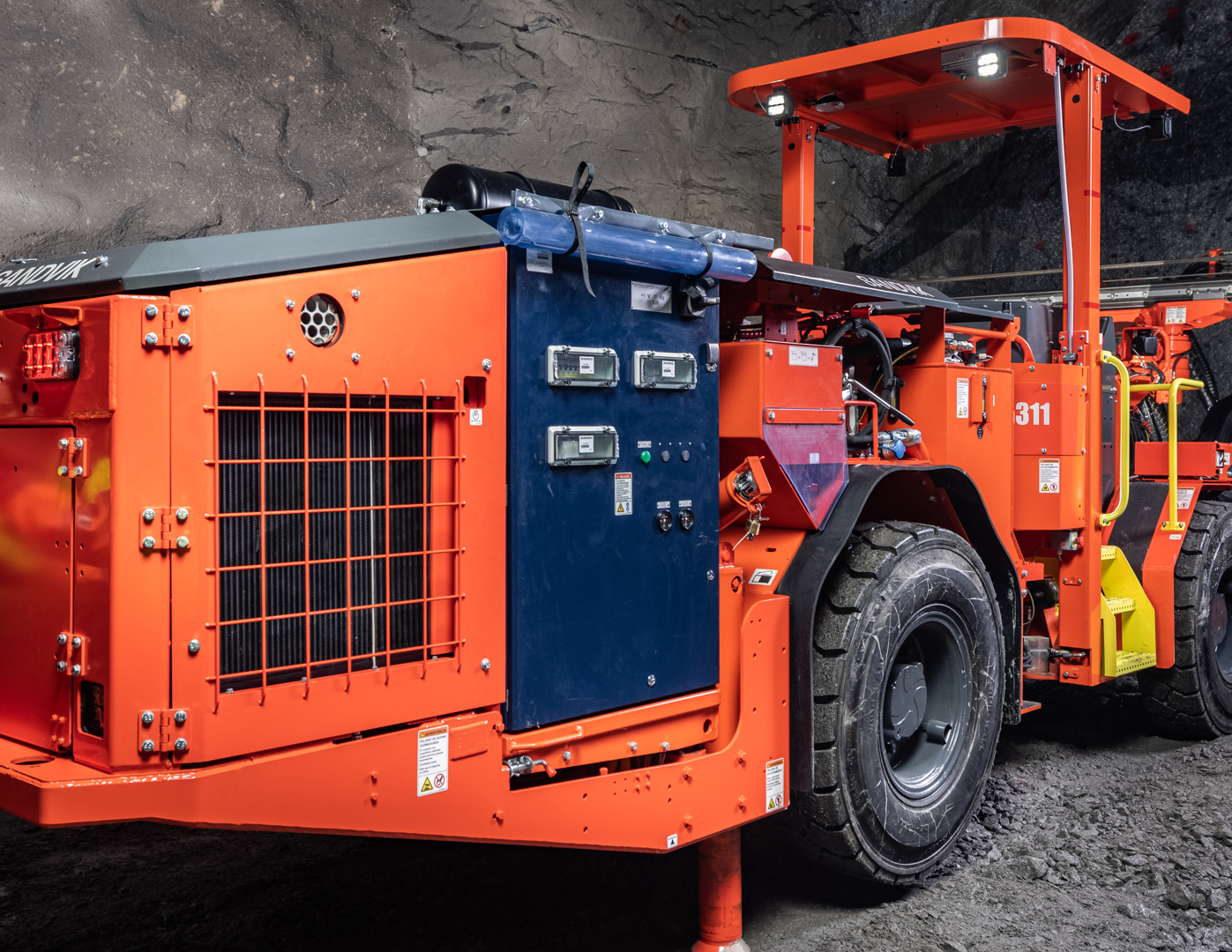

Compact carrier

The rig’s compact carrier features a FOPS/ROPS-certified cabin and can tram into small tunnels, while its powerful powertrain provides fast tramming.

Compact carrier

The rig’s compact carrier features a FOPS/ROPS-certified cabin and can tram into small tunnels, while its powerful powertrain provides fast tramming.

The rig’s compact carrier features a FOPS/ROPS-certified cabin and can tram into small tunnels, while its powerful powertrain provides fast tramming.

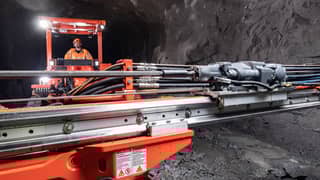

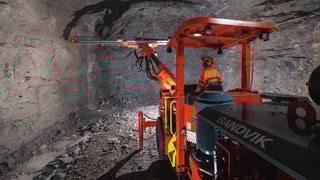

Fast and accurate drilling

DD311 uses hydraulic controls that enable high drilling accuracy of its rock drill to optimize performance and lower operating costs.

Fast and accurate drilling

DD311 uses hydraulic controls that enable high drilling accuracy of its rock drill to optimize performance and lower operating costs.

DD311 uses hydraulic controls that enable high drilling accuracy of its rock drill to optimize performance and lower operating costs.
Versatile drill

The development drill comes in three versions: DD311 (diesel tramming and electric drilling), DD311D (diesel engine for tramming and drilling for areas without electrical power) and DD311DE (diesel tramming and electric or diesel drilling).

Versatile drill

The development drill comes in three versions: DD311 (diesel tramming and electric drilling), DD311D (diesel engine for tramming and drilling for areas without electrical power) and DD311DE (diesel tramming and electric or diesel drilling).

The development drill comes in three versions: DD311 (diesel tramming and electric drilling), DD311D (diesel engine for tramming and drilling for areas without electrical power) and DD311DE (diesel tramming and electric or diesel drilling).

Learn more about DD311 features

Maintenance made easy

Safety automatic shutdowns protect the equipment by preventing failures. Main components are protected with covers to reduce exposure to damages and are accessible from ground level.

Product specifications

DD311 specification sheet (PDF)

DD311D specification sheet (PDF)

DD311DE specification sheet (PDF)

DD311 streamline package (PDF)

DD311 streamline package LAM (PDF)

My Sandvik

DD311 operating manual and spare parts

Operating manuals and spare parts can be found on the My Sandvik customer portal.

Go to My Sandvik

Coverage: 40 m²
Hole length: 3.44 - 4.66 m
Tramming type and distance: Hydrostatic transmission - Diesel engine - TCD2012 (74 kW, Tier 3, Stage IIIA, Canmet, China 2) Hydrostatic transmission - Diesel engine - TCD2.2 (55 kW, Tier 4F, Stage V)
Hole diameter: 43 - 64 mm
Number of booms: 1 x SB40
Drift size (H x W): 3 x 3 m
Feed length: Fixed TF500 12-16 ft or telescopic TFX 6-12 ft. to 8-14 ft.
Rock drill: RDX5 20kW
Voltage: 380 - 690 V (multi voltage)
Controls type: THC561, hydraulic controls
Weight: 15,000 kg (depending on options)

Coverage: 40 m²
Hole length: 3.44 - 4.66 m
Tramming type and distance: Hydrostatic transmission - Diesel engine - TCD2012 (74 kW, Tier 3, Stage IIIA, Canmet, China 2) Hydrostatic transmission - Diesel engine - TCD2.2 (55 kW, Tier 4F, Stage V)
Hole diameter: 43 - 64 mm
Number of booms: 1 x SB40
Drift size (H x W): 3 x 3 m
Feed length: Fixed TF500 12-16 ft or telescopic TFX 6-12 ft. to 8-14 ft.
Rock drill: RDX5 20kW
Voltage: 380 - 690 V (multi voltage)
Controls type: THC561, hydraulic controls
Weight: 15,000 kg (depending on options)
