DD210 Sandvik: versatile reliability underground

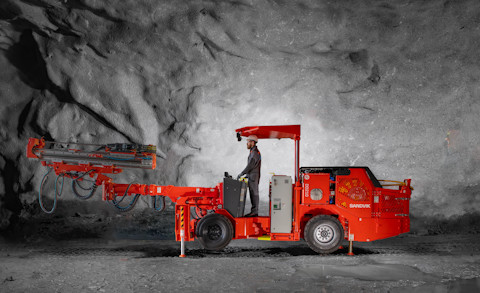

Sandvik DD210 is a compact, flexible single-boom electro-hydraulic jumbo for tunneling and mining development in cross sections up to 24 m². With its narrow vein carrier and compact telescopic drilling module, this robust and simple drill is ideal for operations in confined areas.

Features

Powerful rock drill

Achieve high-performance drilling, good drill steel economy and high machine reliability with the rig's powerful RDX5 rock drill and smooth drilling control system.

Powerful rock drill

Achieve high-performance drilling, good drill steel economy and high machine reliability with the rig's powerful RDX5 rock drill and smooth drilling control system.

Achieve high-performance drilling, good drill steel economy and high machine reliability with the rig's powerful RDX5 rock drill and smooth drilling control system.
Easy feed positioning

With its full automatic parallelism, a large optimum-shaped coverage and 360-degree rotation, the rig's B14F universal boom provides easy feed positioning and accurate face drilling.

Easy feed positioning

With its full automatic parallelism, a large optimum-shaped coverage and 360-degree rotation, the rig's B14F universal boom provides easy feed positioning and accurate face drilling.

With its full automatic parallelism, a large optimum-shaped coverage and 360-degree rotation, the rig's B14F universal boom provides easy feed positioning and accurate face drilling.
Compact drill

Sandvik DD210 is designed for good visibility and stability. Its heavy-duty articulated carrier ensures safe and stable maneuvering in small mine drifts and construction tunnels, thanks to its four-wheel drive transmission.

Compact drill

Sandvik DD210 is designed for good visibility and stability. Its heavy-duty articulated carrier ensures safe and stable maneuvering in small mine drifts and construction tunnels, thanks to its four-wheel drive transmission.

Sandvik DD210 is designed for good visibility and stability. Its heavy-duty articulated carrier ensures safe and stable maneuvering in small mine drifts and construction tunnels, thanks to its four-wheel drive transmission.

Learn more about DD210 features

Automatic functions

The operating environment and incorporated automatic functions of Sandvik DD210 allow the operator to concentrate on safe, fast and accurate drilling.

Accessible service points

All service points on Sandvik DD210 are well-protected yet easily accessible, facilitating daily maintenance and ensuring optimal performance.

Product specifications

DD210 specification sheet (PDF)

My Sandvik

DD210 operating manual and spare parts

Operating manuals and spare parts can be found on the My Sandvik customer portal.

Go to My Sandvik

Coverage: 24 m²
Hole length: 2.83 - 3.44 m
Tramming type and distance: Hydrostatic transmission - Diesel engine - D914L04 (52 kW, Tier3, CANMET)
Hole diameter: 43 - 64 mm
Number of booms: 1 x B14F
Drift size (H x W): 2.5 x 2.0 m
Feed length: Fixed TF500 10 to 12 ft. or telescopic CFX6-12 ft. or CFX-XS
Rock drill: RDX5 20kW
Voltage: 380 - 690 V (multi voltage)
Controls type: THC561, hydraulic controls
Weight: 9,100 kg (depending on options)

Coverage: 24 m²
Hole length: 2.83 - 3.44 m
Tramming type and distance: Hydrostatic transmission - Diesel engine - D914L04 (52 kW, Tier3, CANMET)
Hole diameter: 43 - 64 mm
Number of booms: 1 x B14F
Drift size (H x W): 2.5 x 2.0 m
Feed length: Fixed TF500 10 to 12 ft. or telescopic CFX6-12 ft. or CFX-XS
Rock drill: RDX5 20kW
Voltage: 380 - 690 V (multi voltage)
Controls type: THC561, hydraulic controls
Weight: 9,100 kg (depending on options)

Watch DD210 in action
