DS512i

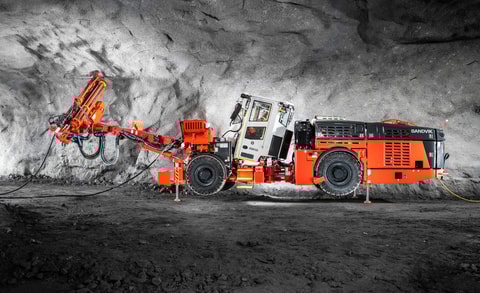

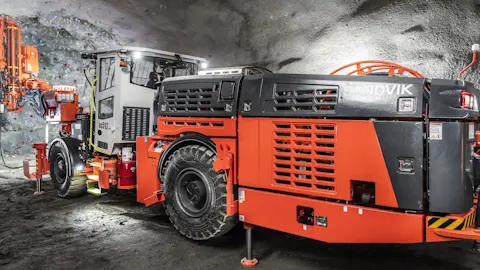

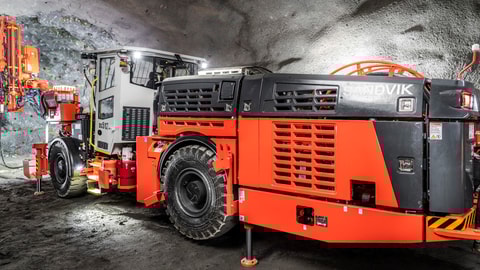

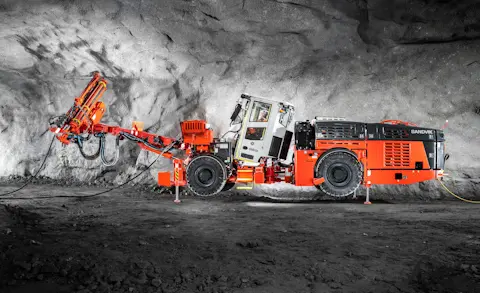

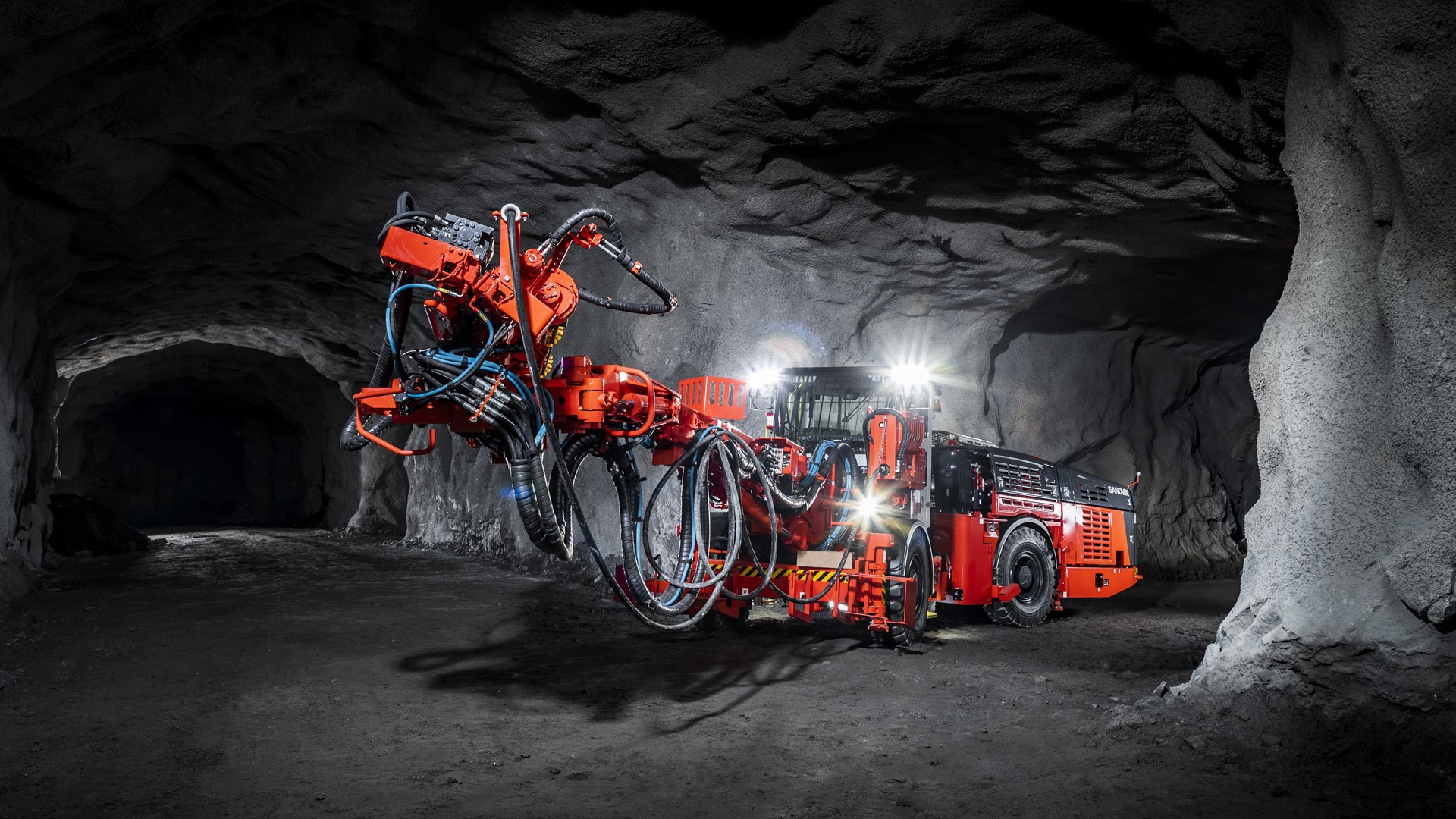

Sandvik DS512i is an automated rock bolting drill rig for underground mining operations. Equipped with a stable carrier, high-frequency rock drill, SICA control system and ergonomic cabin, the DS512i offers high levels of safety and efficiency in all rock reinforcement operations.

Features

Strong performance

Sandvik RD314 high frequency rock drill combined with the drilling control system optimize drilling penetration rates. The one bolt automation function of DS512i improves drilling productivity and extends operating lifetime of the drilling tools.

Strong performance

Sandvik RD314 high frequency rock drill combined with the drilling control system optimize drilling penetration rates. The one bolt automation function of DS512i improves drilling productivity and extends operating lifetime of the drilling tools.

Sandvik RD314 high frequency rock drill combined with the drilling control system optimize drilling penetration rates. The one bolt automation function of DS512i improves drilling productivity and extends operating lifetime of the drilling tools.
Intelligent drill controls

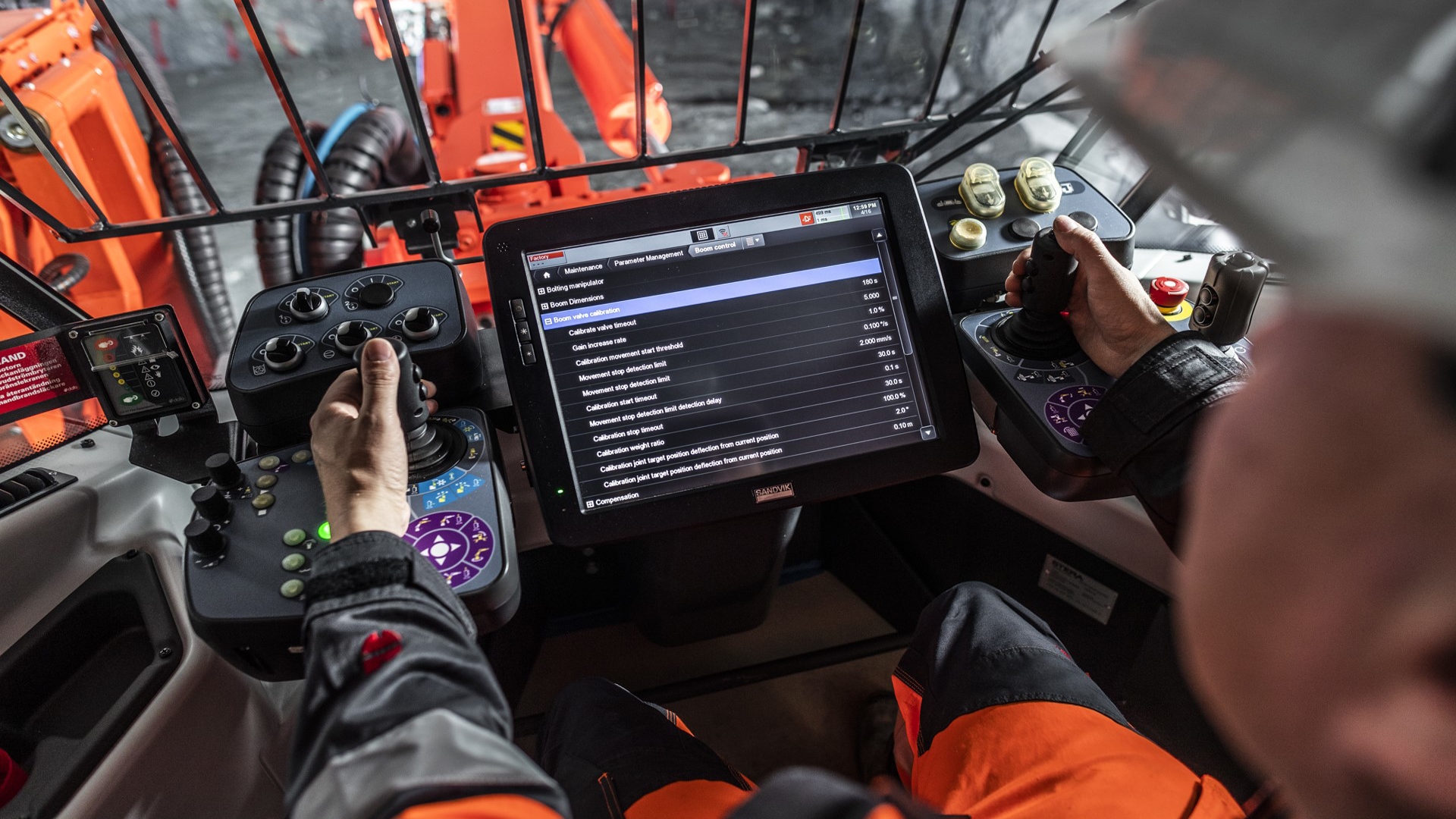

The SICA control system offers intelligent torque control as well as assistive and automatic technologies during drilling, grouting and bolt tightening for improved bolting process control. Different automation levels are available. (Silver, Gold, Platinum)

Intelligent drill controls

The SICA control system offers intelligent torque control as well as assistive and automatic technologies during drilling, grouting and bolt tightening for improved bolting process control. Different automation levels are available. (Silver, Gold, Platinum)

The SICA control system offers intelligent torque control as well as assistive and automatic technologies during drilling, grouting and bolt tightening for improved bolting process control. Different automation levels are available. (Silver, Gold, Platinum)

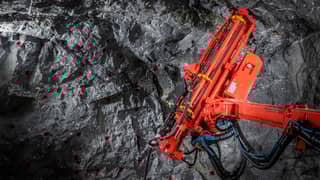

Upgraded BHi bolting head

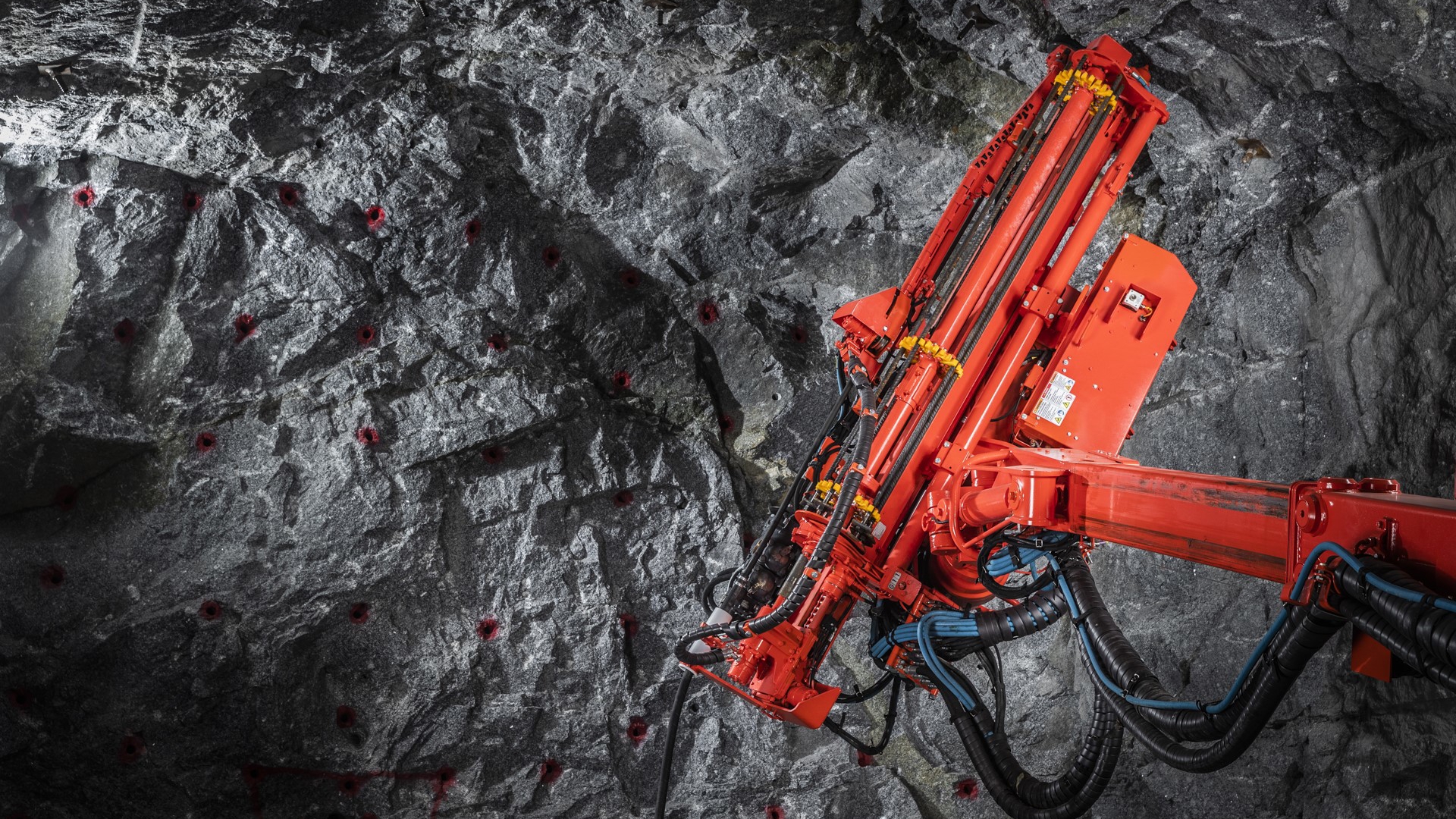

DS512i is equipped with an upgraded bolting head with different bolt lengths, providing an extensive bolt selection, while the eight-rock bolt carousel ensures DS512i is capable of installing different types of rock bolts ranging from 1.5m (5 ft.) to 6m (20 ft.) in length.

Upgraded BHi bolting head

DS512i is equipped with an upgraded bolting head with different bolt lengths, providing an extensive bolt selection, while the eight-rock bolt carousel ensures DS512i is capable of installing different types of rock bolts ranging from 1.5m (5 ft.) to 6m (20 ft.) in length.

DS512i is equipped with an upgraded bolting head with different bolt lengths, providing an extensive bolt selection, while the eight-rock bolt carousel ensures DS512i is capable of installing different types of rock bolts ranging from 1.5m (5 ft.) to 6m (20 ft.) in length.

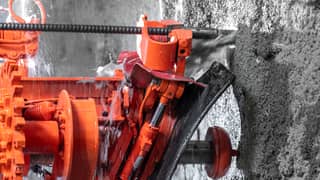

Fast and reliable support

The use of the optional pumpable resin system improves safety and enables faster cycle times in the bolting process. It offers excellent support in challenging ground conditions. This option supports Self-Drilling Bolts (SDB) and Hollow Bar Bolts (HBB). DSI Hollow Bar System and Mineral Bolt pumpable resin are optimized choices for bolting operations.

Fast and reliable support

The use of the optional pumpable resin system improves safety and enables faster cycle times in the bolting process. It offers excellent support in challenging ground conditions. This option supports Self-Drilling Bolts (SDB) and Hollow Bar Bolts (HBB). DSI Hollow Bar System and Mineral Bolt pumpable resin are optimized choices for bolting operations.

The use of the optional pumpable resin system improves safety and enables faster cycle times in the bolting process. It offers excellent support in challenging ground conditions. This option supports Self-Drilling Bolts (SDB) and Hollow Bar Bolts (HBB). DSI Hollow Bar System and Mineral Bolt pumpable resin are optimized choices for bolting operations.

Learn more about DS512i features

High parts commonality

DS512i has been developed based on a modularized concept leading to high levels of parts commonality with other Sandvik drill rigs, enabling lower levels of total cost of ownership.

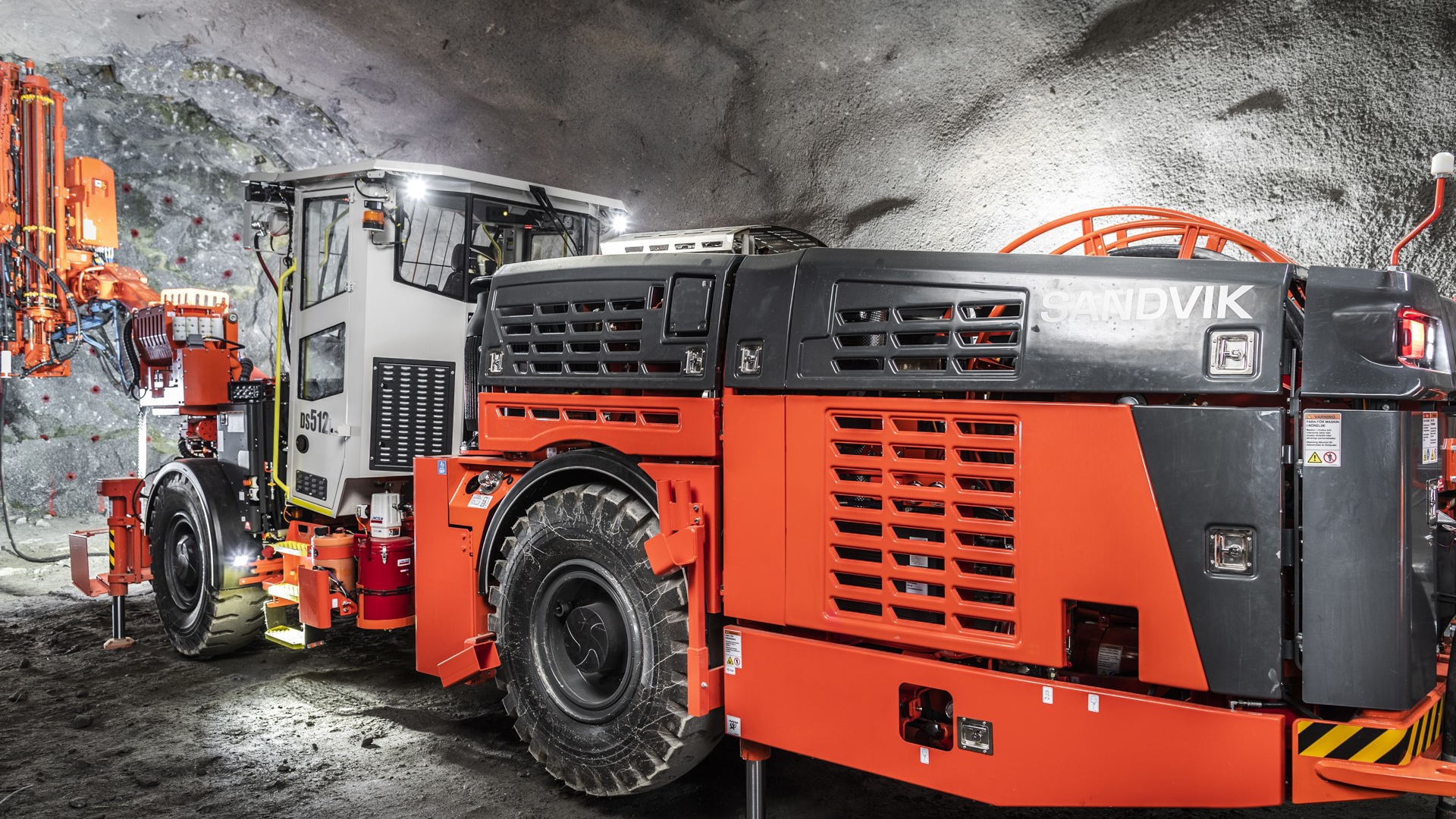

Modern and ergonomic cabin

DS512i’s new cabin is state of the art, with an ergonomic design and improved noise and dust isolation. The spacious, ergonomic operating environment has an interactive graphic user interface, enabling all bolting operations to be performed by a single operator in safety and comfort.

Product specifications

Download DS512i technical specification sheet (PDF)

My Sandvik

DS512i operating manual and spare parts

Operating manuals and spare parts can be found on the My Sandvik customer portal.

Go to My Sandvik

Bolting coverage: 9 x 5 m (optimum)
Hole size: 33 - 43 mm
Tramming type and distance: Hydrostatic transmission - Diesel engine - QSB4.5 (127 kW, Tier 3, Stage IIIA)
Bolt length: 1.5 - 6.0 m (5.0 - 20.0 ft.)
Bolt type: GCR, WI, S, BCS, M, K
Grouting method: Resin cartridges, bulk cement
Rock drill: RD314, 14 kW
Controls type: SICA (Sandvik Intelligent Control System)
Automation package: Silver (Standard), Gold (Optional), Platinum (Optional)
Weight: 29,000 kg (depending on options)
