DS412iE
Request a quote
Rock support drill rigs
DS412iE
- Bolting coverage
- 7 x 4.5 m (optimum)
- Hole size
- 33 - 43 mm
- Tramming type and distance
- BEV - 5.6 km @ 6 km/h in 1:7 incline
Sandvik DS412iE is a highly automated and productive battery-powered bolter for underground mining operations and civil construction tunneling. It reduces noise, thermal load making the underground working environment safer for the teams in operation.
Features
-
Intelligent power management system
Charging While Drilling technology enables battery charging to be carried out during normal drilling cycles to ensure maximum tramming energy is available. Additional electric power for drilling can be drawn from the onboard battery pack, increasing drilling productivity without compromising the maximum peak power load taken from mine electrics.
Intelligent power management system
Charging While Drilling technology enables battery charging to be carried out during normal drilling cycles to ensure maximum tramming energy is available. Additional electric power for drilling can be drawn from the onboard battery pack, increasing drilling productivity without compromising the maximum peak power load taken from mine electrics.
Charging While Drilling technology enables battery charging to be carried out during normal drilling cycles to ensure maximum tramming energy is available. Additional electric power for drilling can be drawn from the onboard battery pack, increasing drilling productivity without compromising the maximum peak power load taken from mine electrics.
-
Optimized rock reinforcement process
A wide selection of available bolt types and lengths combined with an automatic resin shooting and cement mixing system ensures a high-quality rock reinforcement process.
Optimized rock reinforcement process
A wide selection of available bolt types and lengths combined with an automatic resin shooting and cement mixing system ensures a high-quality rock reinforcement process.
A wide selection of available bolt types and lengths combined with an automatic resin shooting and cement mixing system ensures a high-quality rock reinforcement process.
-
i-Class control system
The control system enables advanced mine automation and future teleremote solutions, reducing the need for manual tasks. The high level of data collection during bolting provides the necessary knowledge to understand how drifts and tunnels are supported, along with the possibility to document it. Different automation levels are available. (Silver, Gold, Platinum)
i-Class control system
The control system enables advanced mine automation and future teleremote solutions, reducing the need for manual tasks. The high level of data collection during bolting provides the necessary knowledge to understand how drifts and tunnels are supported, along with the possibility to document it. Different automation levels are available. (Silver, Gold, Platinum)
The control system enables advanced mine automation and future teleremote solutions, reducing the need for manual tasks. The high level of data collection during bolting provides the necessary knowledge to understand how drifts and tunnels are supported, along with the possibility to document it. Different automation levels are available. (Silver, Gold, Platinum)
-

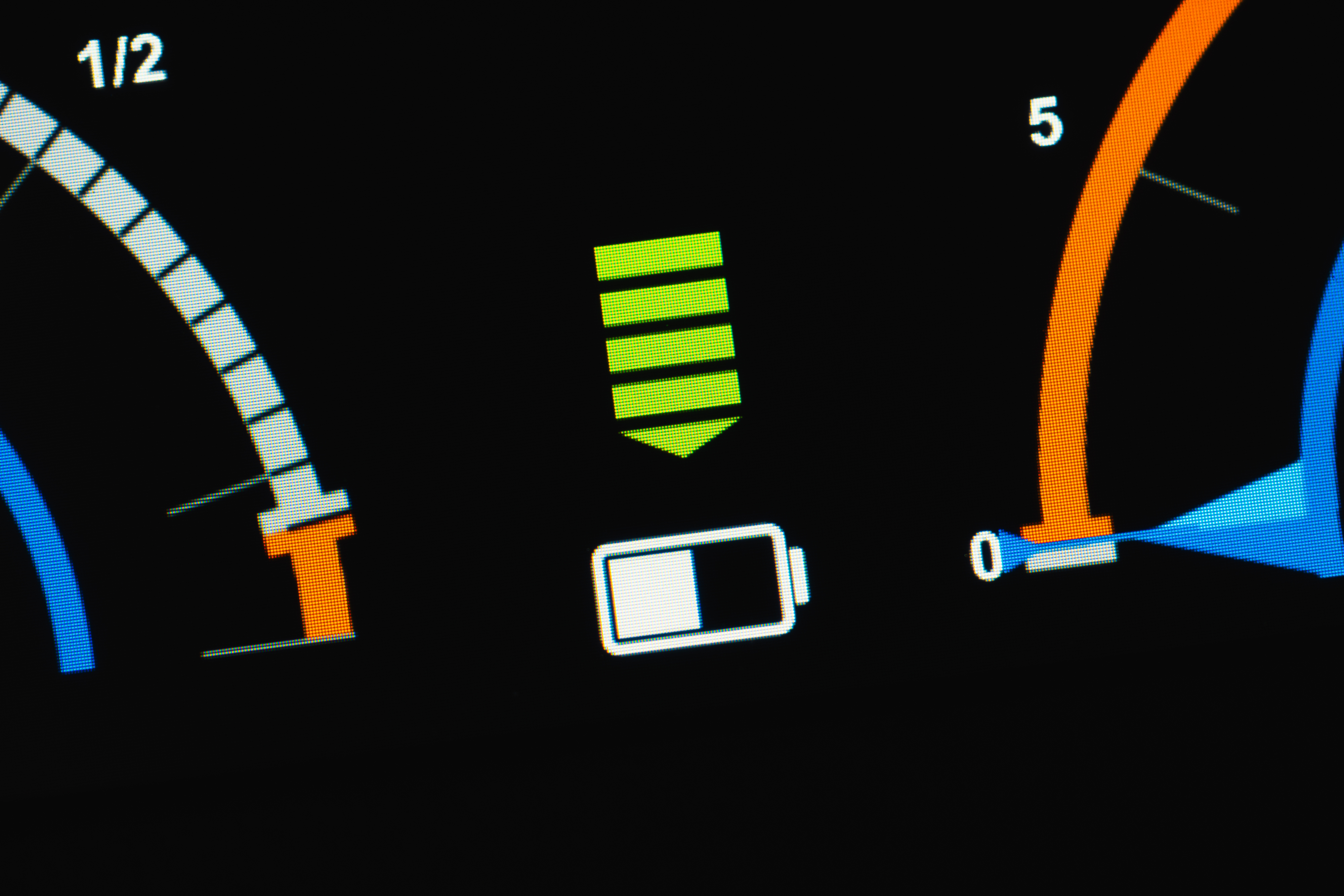

LFP chemistry
A retrofit kit allows to upgrade current SoNick drill rigs to LFP technology for improved performance.
LFP chemistry
A retrofit kit allows to upgrade current SoNick drill rigs to LFP technology for improved performance.
A retrofit kit allows to upgrade current SoNick drill rigs to LFP technology for improved performance.
-

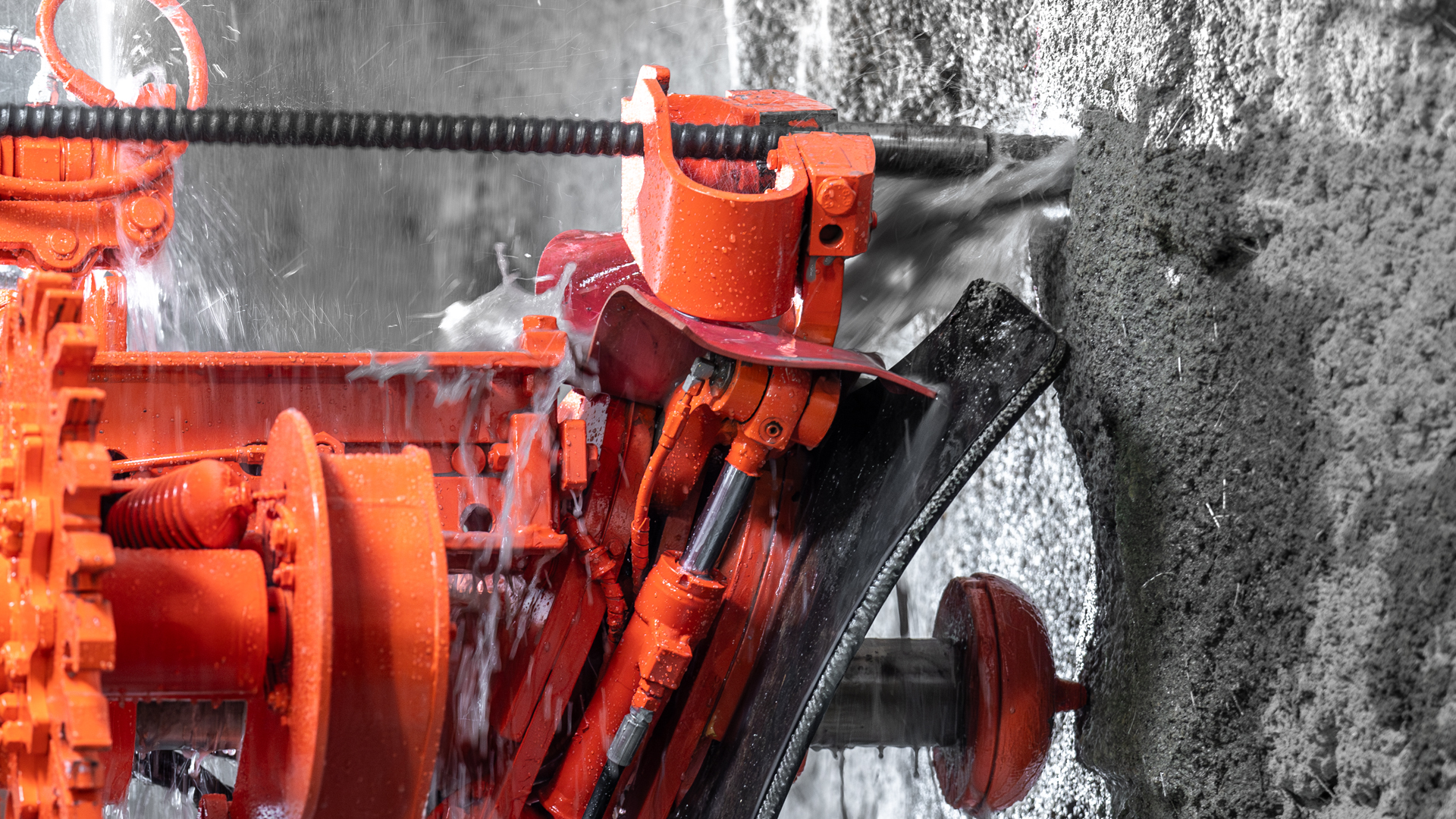

Fast and reliable support
The use of the optional pumpable resin system improves safety and enables faster cycle times in the bolting process. It offers excellent support in challenging ground conditions. This option supports Self-Drilling Bolts (SDB) and Hollow Bar Bolts (HBB). DSI Hollow Bar System and Mineral Bolt pumpable resin are optimized choices for bolting operations.
Fast and reliable support
The use of the optional pumpable resin system improves safety and enables faster cycle times in the bolting process. It offers excellent support in challenging ground conditions. This option supports Self-Drilling Bolts (SDB) and Hollow Bar Bolts (HBB). DSI Hollow Bar System and Mineral Bolt pumpable resin are optimized choices for bolting operations.
The use of the optional pumpable resin system improves safety and enables faster cycle times in the bolting process. It offers excellent support in challenging ground conditions. This option supports Self-Drilling Bolts (SDB) and Hollow Bar Bolts (HBB). DSI Hollow Bar System and Mineral Bolt pumpable resin are optimized choices for bolting operations.
Learn more about DS412iE features
Improved working environment
0% diesel emissions while tramming results in an improved environment for underground workers.
Safe and efficient
The new carrier, high-frequency rock drill, intelligent control system and ergonomic cabin offer high levels of safety and efficiency.
Easy maintenance
High parts commonality through the 400i-Class for optimized maintenance. Specialists are available 365 days a year to provide the best-suited choices to preserve and enhance your machine’s high performance throughout its lifetime. All Sandvik parts are genuine components, complemented by a range of robust tools.
Product specifications
DS412iE operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Bolting coverage
- 7 x 4.5 m (optimum)
- Hole size
- 33 - 43 mm
- Tramming type and distance
- BEV - 5.6 km @ 6 km/h in 1:7 incline
- Bolt length
- 1.5 - 3.0 m (5.0 - 10.0 ft.)
- Bolt type
- GCR, WI, S, M
- Bolting coverage
- 7 x 4.5 m (optimum)
- Hole size
- 33 - 43 mm
- Tramming type and distance
- BEV - 5.6 km @ 6 km/h in 1:7 incline
- Bolt length
- 1.5 - 3.0 m (5.0 - 10.0 ft.)
- Bolt type
- GCR, WI, S, M
- Grouting method
- Resin cartridges
- Rock drill
- RD314, 14kW
- Controls type
- SICA (Sandvik Intelligent Control System)
- Automation package
- Silver (Standard), Gold (Optional), Platinum (Optional)
- Weight
- 31,000 kg (depending on options)
