Rock support drill rigs
DS211L-M
- Bolting coverage
- 6.9 x 2.9 m (optimum)
- Hole size
- 22 - 45 mm
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - BF4M2012 (74 kW, Tier 2)

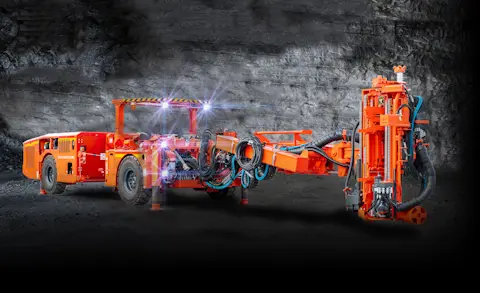

Sandvik DS211L-M is a low-profile bolter engineered for rock reinforcement in excavations with headroom as low as 2 meters (6.5 feet). The dedicated drilling system ensures maximum drilling performance, optimal reliability and steel economy.
Features
-
Fully mechanized drill
The fully mechanized drill rig can be handled by a single operator. It ensures safe access to the ore, while increasing production, avoiding dilution and optimizing excavation.
-
Radio remote operation for maximum safety
Radio remote operation allows operators to control DS211L-M from a safe distance, reducing their exposure to hazardous working conditions, such as falling rocks or unstable ground.
-

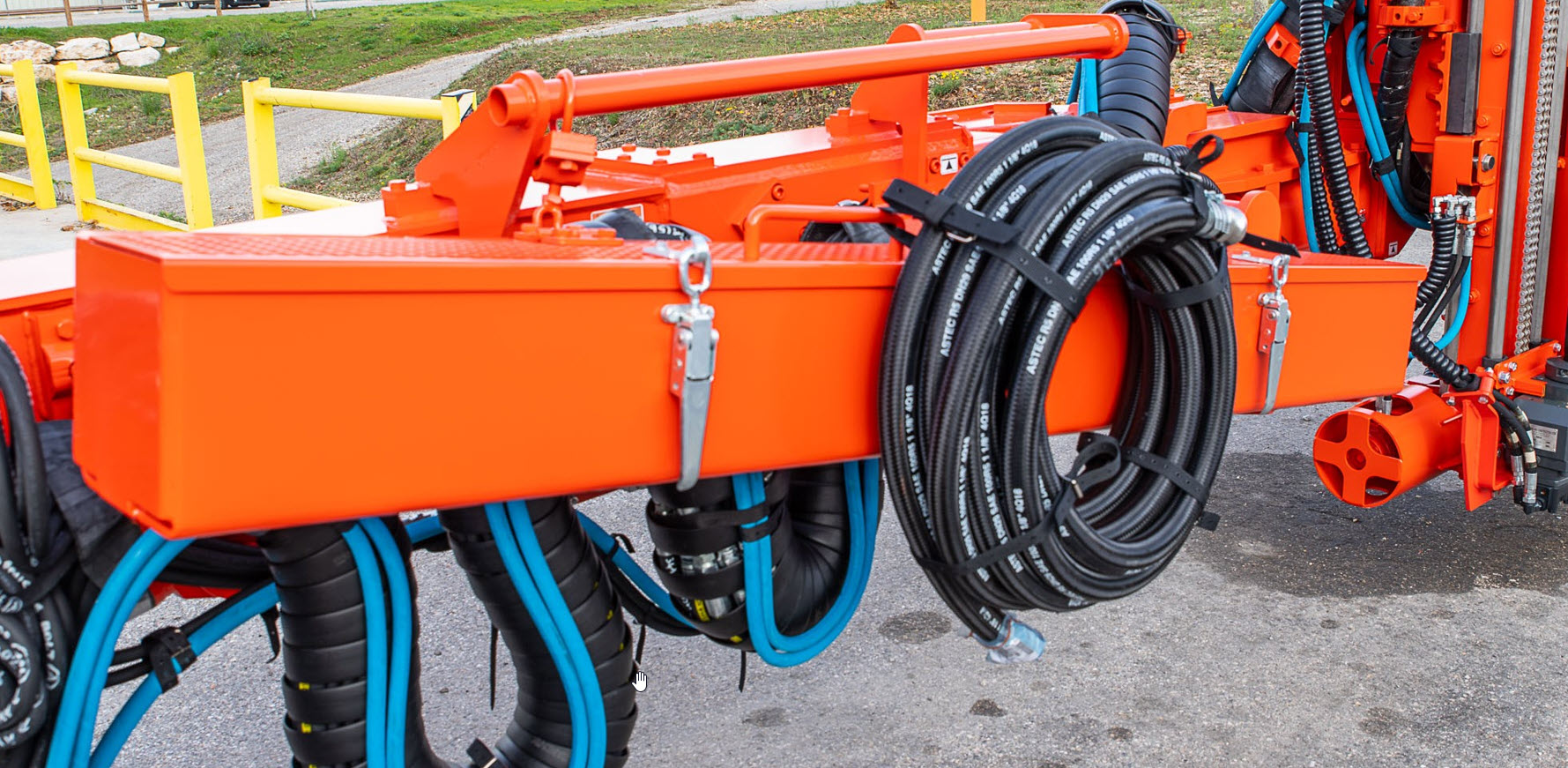

Robust telescopic boom
The telescopic boom allows installation of several bolt rows without moving the machine, ensuring increased productivity.
Learn more about DS211L-M features
Easy maneuvering
The V-shape layout offers visibility and balance while the four-wheel-drive articulated carrier ensures safe and fast maneuvering in tight conditions.
Easy maintenance
All the service points are well protected but easy to access from ground level.
Product specifications
DS211L-M operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Bolting coverage
- 6.9 x 2.9 m (optimum)
- Hole size
- 22 - 45 mm
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - BF4M2012 (74 kW, Tier 2)
- Bolt length
- 1.5 - 1.8 m (5.0 - 6.0 ft.)
- Bolt type
- GCR, GCC, M
- Grouting method
- Resin cartridges, cement cartridge
- Rock drill
- RD106, 6.5 kW
- Controls type
- THC561, hydraulic control
- Automation package
- None
- Weight
- 14,500 kg (depending on options)
