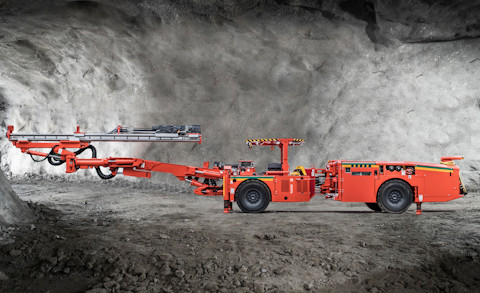

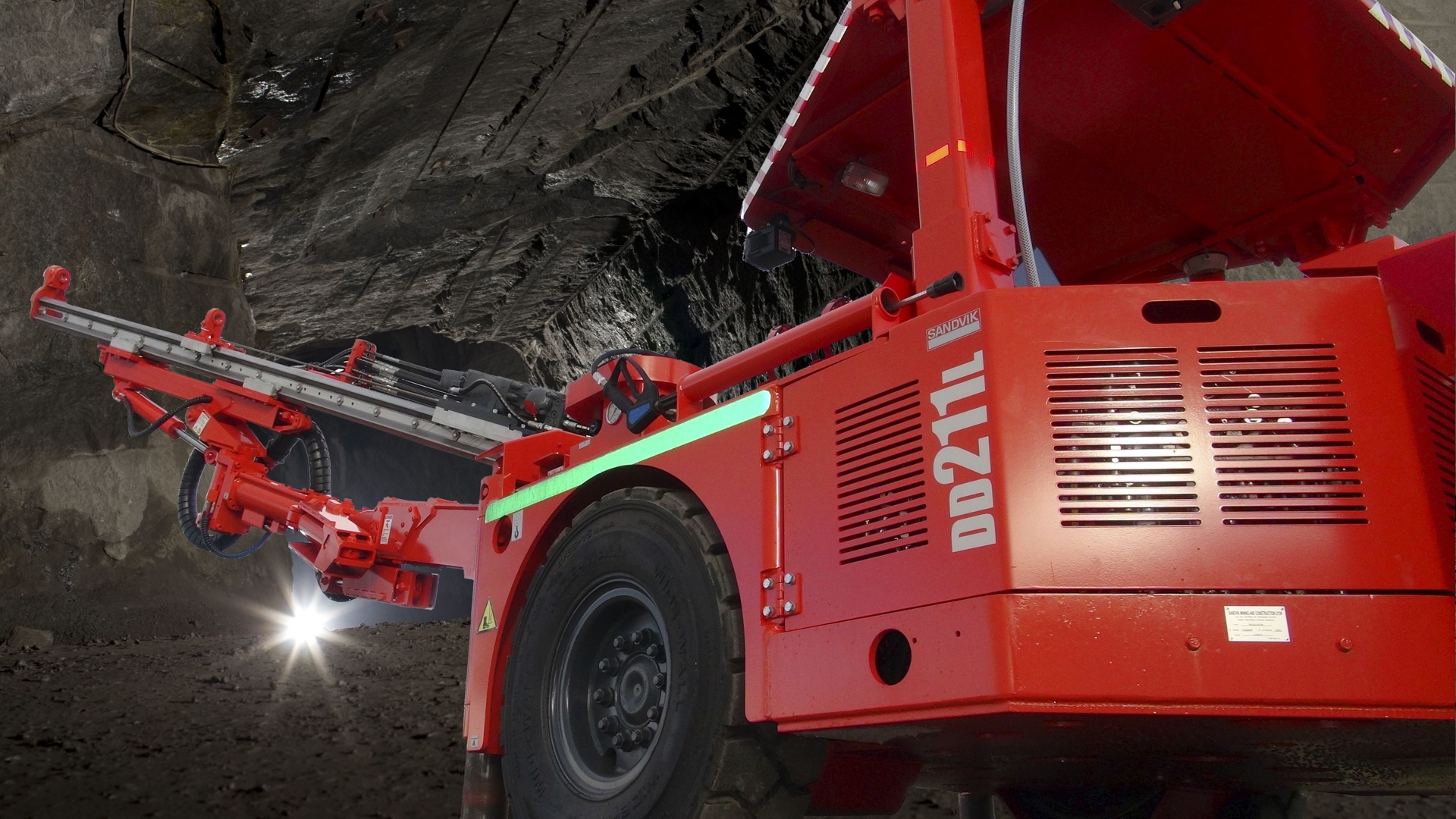

Sandvik DD211L Single Boom Development Drill Rig

Sandvik DD211L is an electro-hydraulic development drill engineered for excavations with headroom as low as 2 meters (6.5 ft). It has a robust universal boom with 360-degree rotation and full automatic parallelism for fast, easy face drilling and cross-cutting.

Features

High drilling performance

The drilling system ensures high performance with drill steel economy for safe, fast and accurate drilling.

High drilling performance

The drilling system ensures high performance with drill steel economy for safe, fast and accurate drilling.

The drilling system ensures high performance with drill steel economy for safe, fast and accurate drilling.
Reliability

Strong boom & feed structure. Safety automatic shutdowns protect the equipment. All the service points are well protected but easy to access from ground level.

Reliability

Strong boom & feed structure. Safety automatic shutdowns protect the equipment. All the service points are well protected but easy to access from ground level.

Strong boom & feed structure. Safety automatic shutdowns protect the equipment. All the service points are well protected but easy to access from ground level.

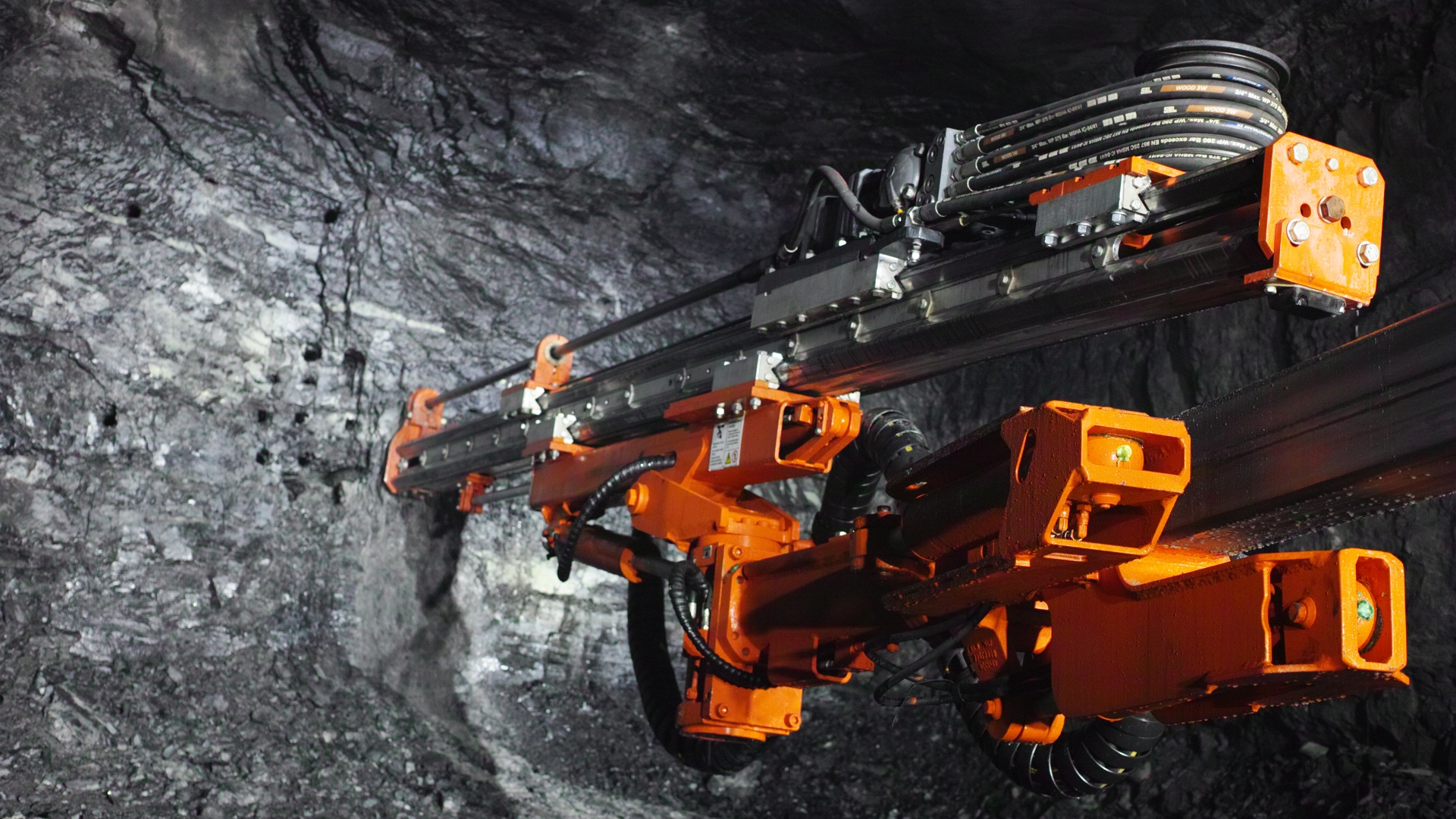

Robust boom

The hose layout ensures maximum protection in excavations with headroom as low as 2 meters (6.5 ft), while the powerful four-wheel-drive provides fast and safe maneuvering.

Robust boom

The hose layout ensures maximum protection in excavations with headroom as low as 2 meters (6.5 ft), while the powerful four-wheel-drive provides fast and safe maneuvering.

The hose layout ensures maximum protection in excavations with headroom as low as 2 meters (6.5 ft), while the powerful four-wheel-drive provides fast and safe maneuvering.

Learn more about DD211L features

V-shape layout

The V-shape design offers excellent balance and improved visibility, affording a good view of the operating environment.

Product specifications

Download DD211L specification sheet (PDF)

My Sandvik

DD211L operating manual and spare parts

Operating manuals and spare parts can be found on the My Sandvik customer portal.

Go to My Sandvik

Coverage: 36 m²
Hole length: Up to 4.7 m
Tramming type and distance: Hydrostatic transmission - Diesel engine - BF4M2012 (74 kW, Tier 2)
Hole diameter: 43 - 64 mm
Number of booms: 1 x B26XLS-NV
Drift size min (H x W): 2.5 x 2.5 m
Feed length: Fixed TF500 10 to 16 ft. or telescopic TFX 6-12 ft. to 8-14 ft.
Rock drill: RDX5 20kW
Voltage: 380 - 575V (± 10%)
Controls type: THC561, hydraulic control
Weight: 14,000 kg (depending on options)

Coverage: 36 m²
Hole length: Up to 4.7 m
Tramming type and distance: Hydrostatic transmission - Diesel engine - BF4M2012 (74 kW, Tier 2)
Hole diameter: 43 - 64 mm
Number of booms: 1 x B26XLS-NV
Drift size min (H x W): 2.5 x 2.5 m
Feed length: Fixed TF500 10 to 16 ft. or telescopic TFX 6-12 ft. to 8-14 ft.
Rock drill: RDX5 20kW
Voltage: 380 - 575V (± 10%)
Controls type: THC561, hydraulic control
Weight: 14,000 kg (depending on options)
