Diesel loaders
Toro® LH202
- Dimensions (LxWxH)
- 6,200x1,500x2,100 mm
- Capacity
- 3,000 kg
- Bucket range
- 1.3 - 1.5 m³

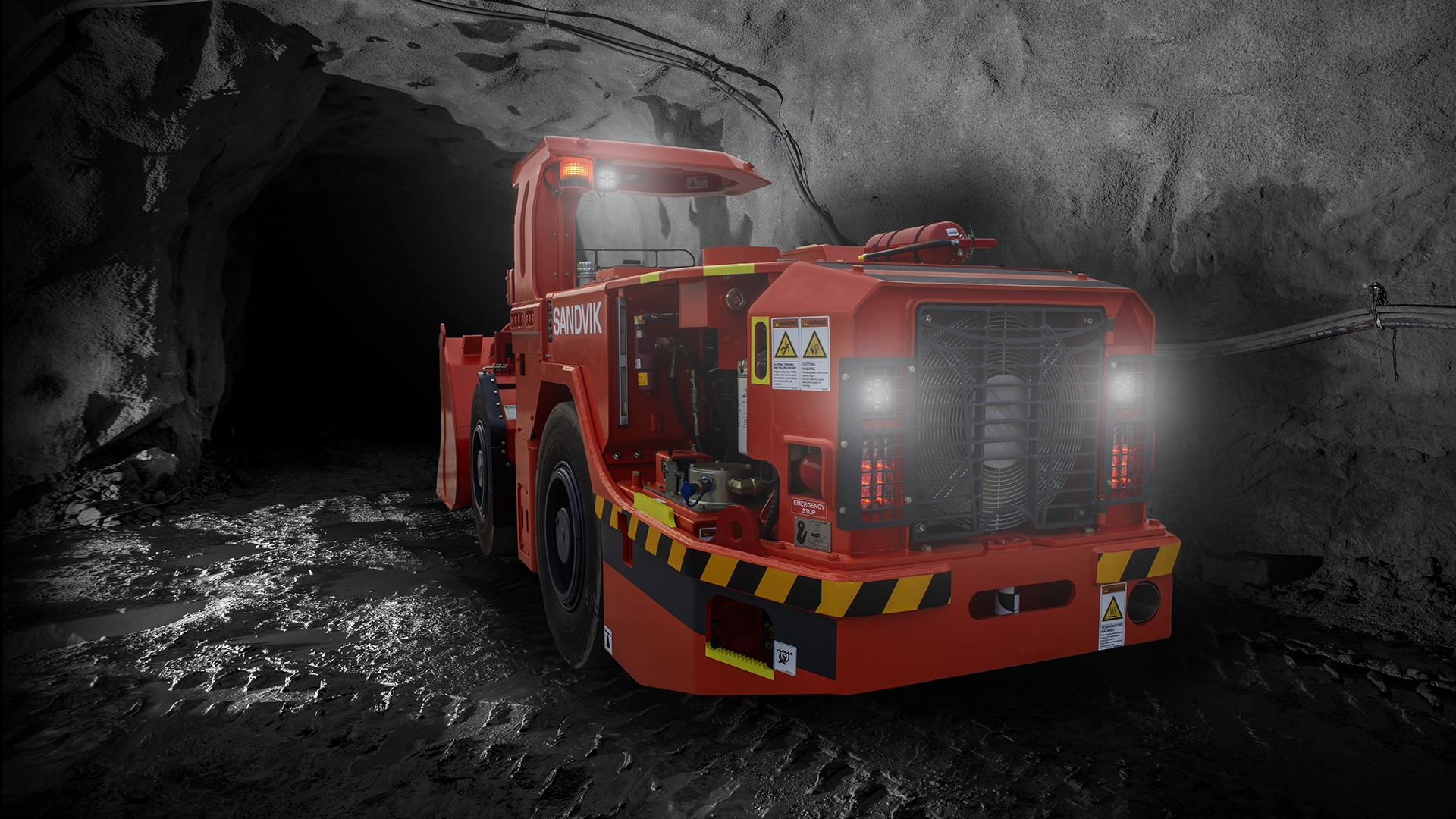

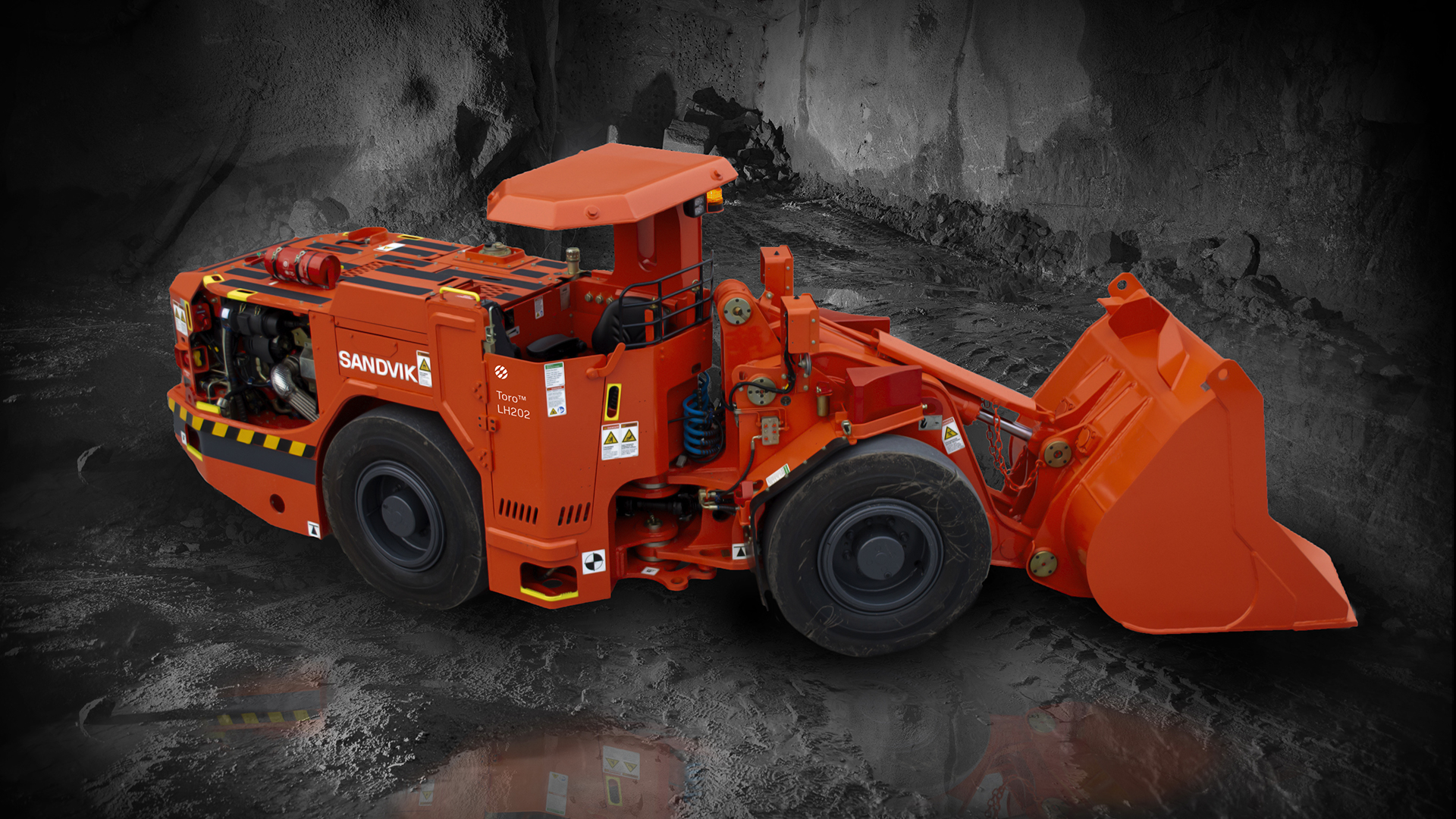

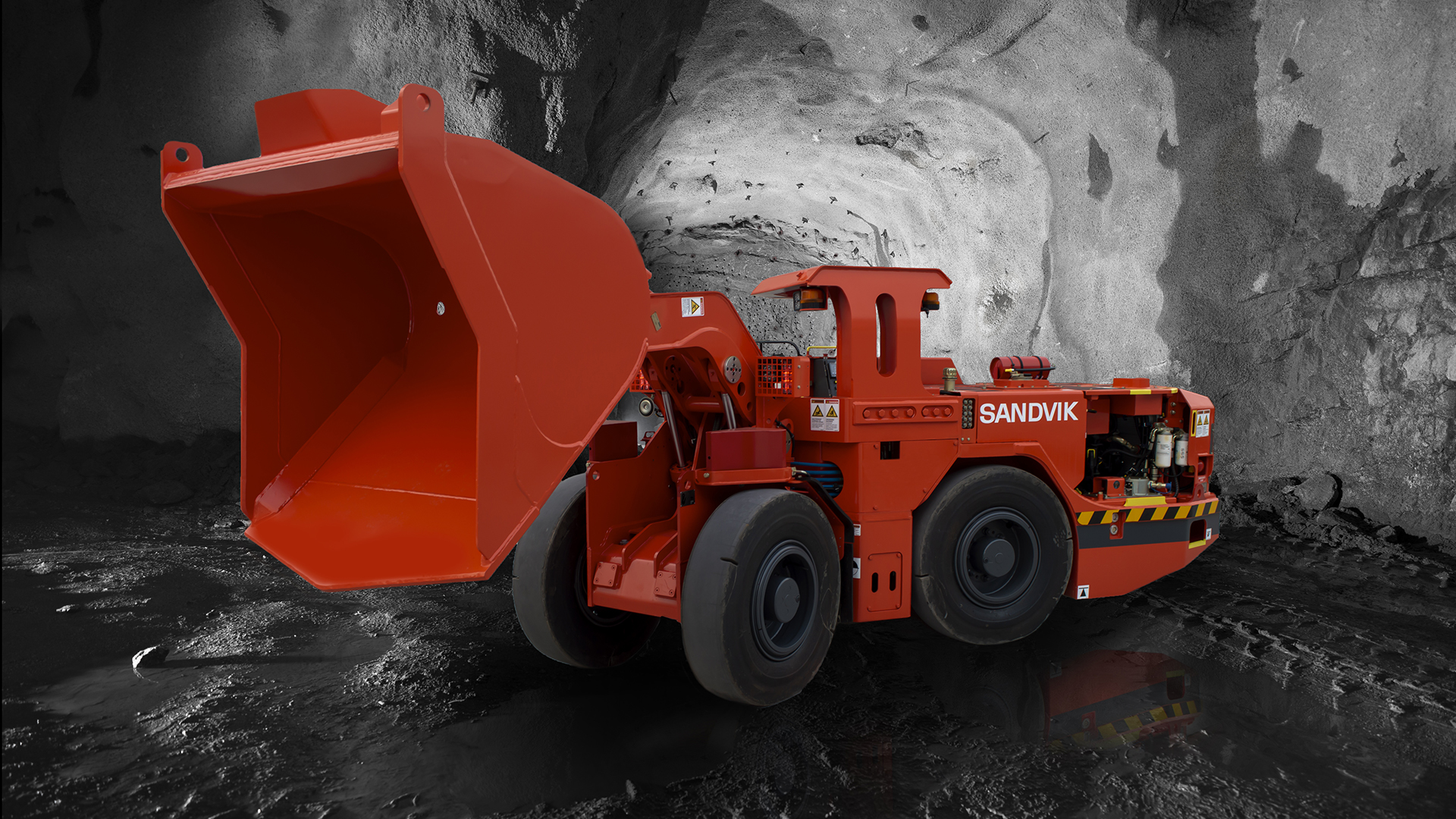

Toro® LH202 loader is designed for narrow-vein mining, prioritizing productivity in underground conditions. It has a compact structure, a 3-tonne payload capacity and optimization for tunnel widths of 2 - 2.5 meters. In addition to mining, the loader is well suited for small-scale civil infrastructure projects and construction sites.
-
Narrow size
The smallest unit on the market to provide 3 tonne payload capacity to ensure best operational efficiency in narrow mine environment.
-
Two engine options
Two engine options
LH202 standard engine is a Tier 2 engine from Deutz. The optional engine is a Deutz Stage IV engine with DPF technology ensuring lowest possible emission levels. -
Improved powertrain results
The advanced hydrostatic powertrain technology has two speed areas. With no transmission, there is less stress on the drivetrain and no risk of gear misuse. This reduces machine failures and unplanned maintenance costs.
Product specifications
LH202 operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Dimensions (LxWxH)
- 6,200x1,500x2,100 mm
- Capacity
- 3,000 kg
- Bucket range
- 1.3 - 1.5 m³
- Break out force, lift
- 5,810 kg
- Break out force, tilt
- 6,425 kg
- Operating weight *
- 8,800 kg
- Maximum driving speed (Level / loaded)
- 10.0 km/h
*Unit weight is dependent on the selected options
