TIM 1400 instrumentation system for boom surface drills

TIM 1400 is a simple, robust and reliable instrumentation system for boom surface drills.

Description

TIM 1400 is a simple, robust and reliable instrumentation system for boom surface drills. There are several versions of the system available:

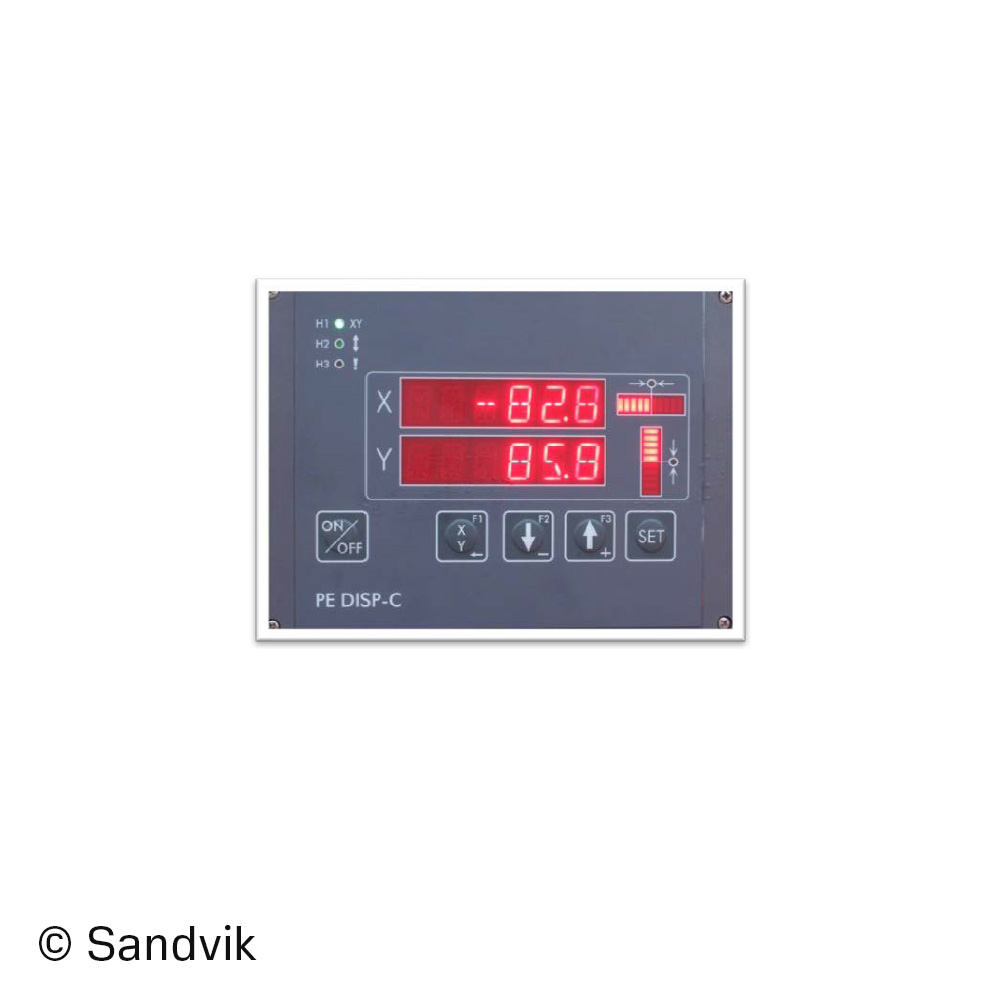

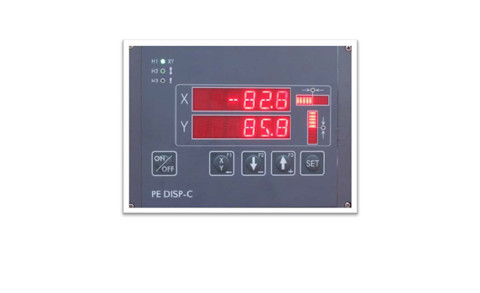

•TIM 1402 - The display shows feed angles in reference of boom and feed swings. It’s possible to set hole inclination as a reference for next holes. This feature works only when the rig is not moved between holes. The display unit is equipped with LED display showing accuracy of the feed alignment towards reference inclination.
•TIM 1403 - Displays the current drilled hole depth, penetration rate and counter of total drilled meter as additional feature.
•TIM 1404 - The most evolved version. In addition to the feed angles and hole depth information, the system adjusts feed inclination to the reference inclination automatically. Automatic feed alignment works only within boom coverage area without moving carrier between holes.
Advantages

-Fast aligning for vertical holes
-Better blasting quality and even floor
-Simple and clear user interface.
-Robust design
Customer values

-Improve productivity and drilling quality.
-Easy to use and maintain. Require minimum training.
