In-the-hole longhole drill rigs
DU311-T
- Parallel coverage
- 0.762 m
- Longhole diameter
- 89 - 254 mm (4 - 10 in.)
- Drill pipe length
- 1.22 - 1.83 m (4.00 - 6.00 ft)

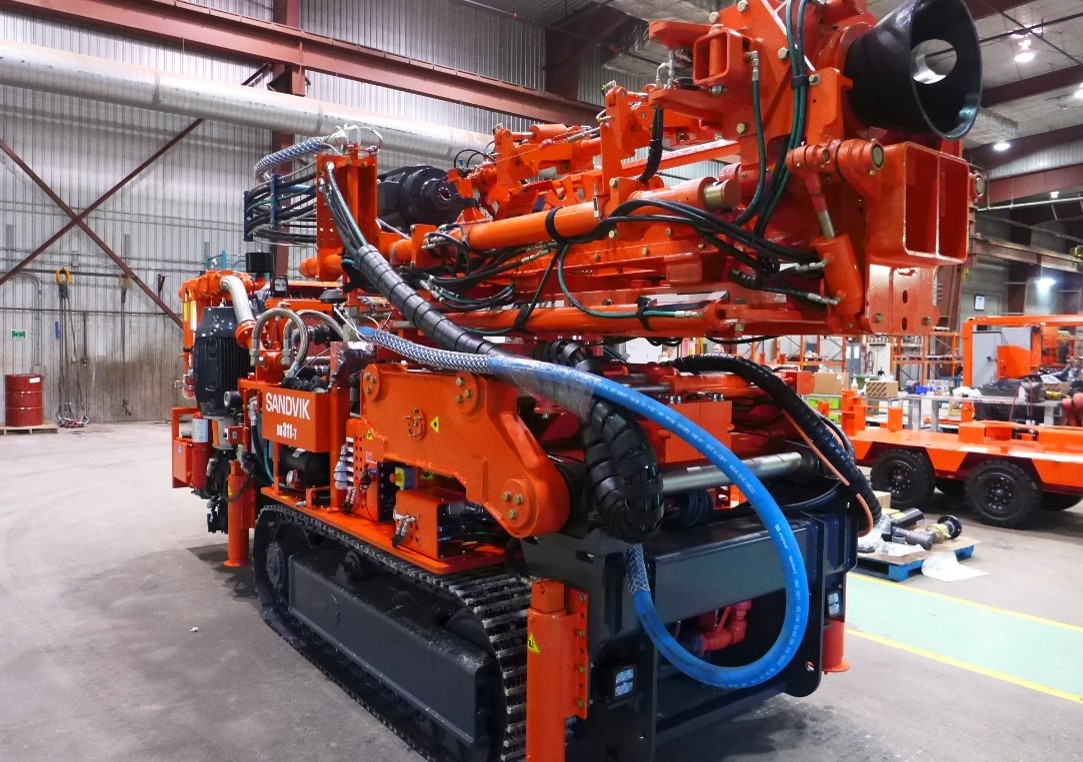

Sandvik DU311-T is a compact, track-mounted, in-the-hole (ITH) longhole drill fitted with an onboard booster and designed for underground mining in 3.2 x 3.2 meter or larger production drifts. This compact production drill can be used with the Sandvik Raise Bore Hammer for slot or ventilation raises, ore passes, waste chutes or service holes. It can also drill vertical and inclined fans and single or parallel longholes up to 150 m in depth.
Features
-
Optimal production drilling
The compact drill is an optimal size for production drilling and service support in narrow mine drifts and is available in configuration for reverse circulation.
Optimal production drilling
The compact drill is an optimal size for production drilling and service support in narrow mine drifts and is available in configuration for reverse circulation.
The compact drill is an optimal size for production drilling and service support in narrow mine drifts and is available in configuration for reverse circulation.
-
Robust rotation head
The drill has a robust RH6230 rotation head with spined piston and a rotation speed of 0 - 60 rpm.
Robust rotation head
The drill has a robust RH6230 rotation head with spined piston and a rotation speed of 0 - 60 rpm.
The drill has a robust RH6230 rotation head with spined piston and a rotation speed of 0 - 60 rpm.
-
Robust tracks
The carrier is equipped with triple grouser tracks, offering high levels of stability and increased weight distribution when tramming in mine drifts.
Robust tracks
The carrier is equipped with triple grouser tracks, offering high levels of stability and increased weight distribution when tramming in mine drifts.
The carrier is equipped with triple grouser tracks, offering high levels of stability and increased weight distribution when tramming in mine drifts.
-
Raise boring
The drill can be fitted with Sandvik Raise Bore Hammer for production drilling, service support and mechanized slot raising in 3 x 3 m or larger headings.
Raise boring
The drill can be fitted with Sandvik Raise Bore Hammer for production drilling, service support and mechanized slot raising in 3 x 3 m or larger headings.
The drill can be fitted with Sandvik Raise Bore Hammer for production drilling, service support and mechanized slot raising in 3 x 3 m or larger headings.
Product specifications
Downloads
- Parallel coverage
- 0.762 m
- Longhole diameter
- 89 - 254 mm (4 - 10 in.)
- Drill pipe length
- 1.22 - 1.83 m (4.00 - 6.00 ft)
- Drift size (H x W)
- 3.2 x 3.2 m
- Drill pipe diameter
- 79 - 127 mm (3 - 5 in.)
- Parallel coverage
- 0.762 m
- Longhole diameter
- 89 - 254 mm (4 - 10 in.)
- Drill pipe length
- 1.22 - 1.83 m (4.00 - 6.00 ft)
- Drift size (H x W)
- 3.2 x 3.2 m
- Drill pipe diameter
- 79 - 127 mm (3 - 5 in.)
- Tramming type and distance
- Hydrostatic transmission - Electric & diesel engine (option)
- Drilling power
- HP45, 45 kW
- Controls type
- CAN (Control Area Network)
- Weight
- 18,000 kg
