DS221L
Request a quote
Cable bolters
DS221L
- Bolting coverage
- 6.1 x 2.8 m
- Hole length
- Up to 6 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - BF4M2012 (74kW, Tier 2)

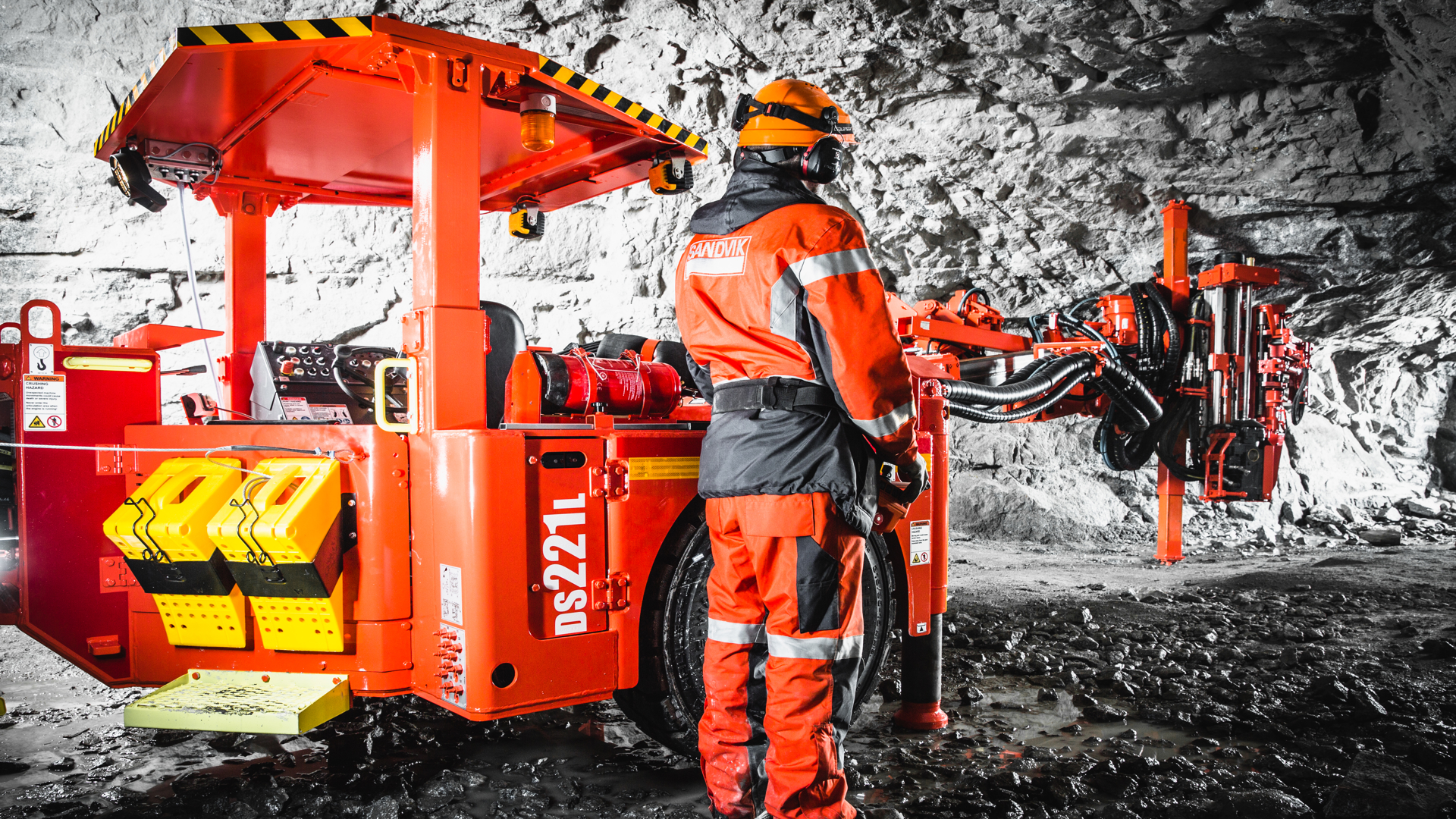

Sandvik DS221L is a low-profile cable bolter with one-hole automation. It is a rock reinforcement drill rig designed to work in galleries as low as two meters in underground mines and tunnels. Its variety of features ensures reliable, more efficient and precise bolting and reduces the risk of unsteady and hazardous results.
Features
-
Immediate rock support

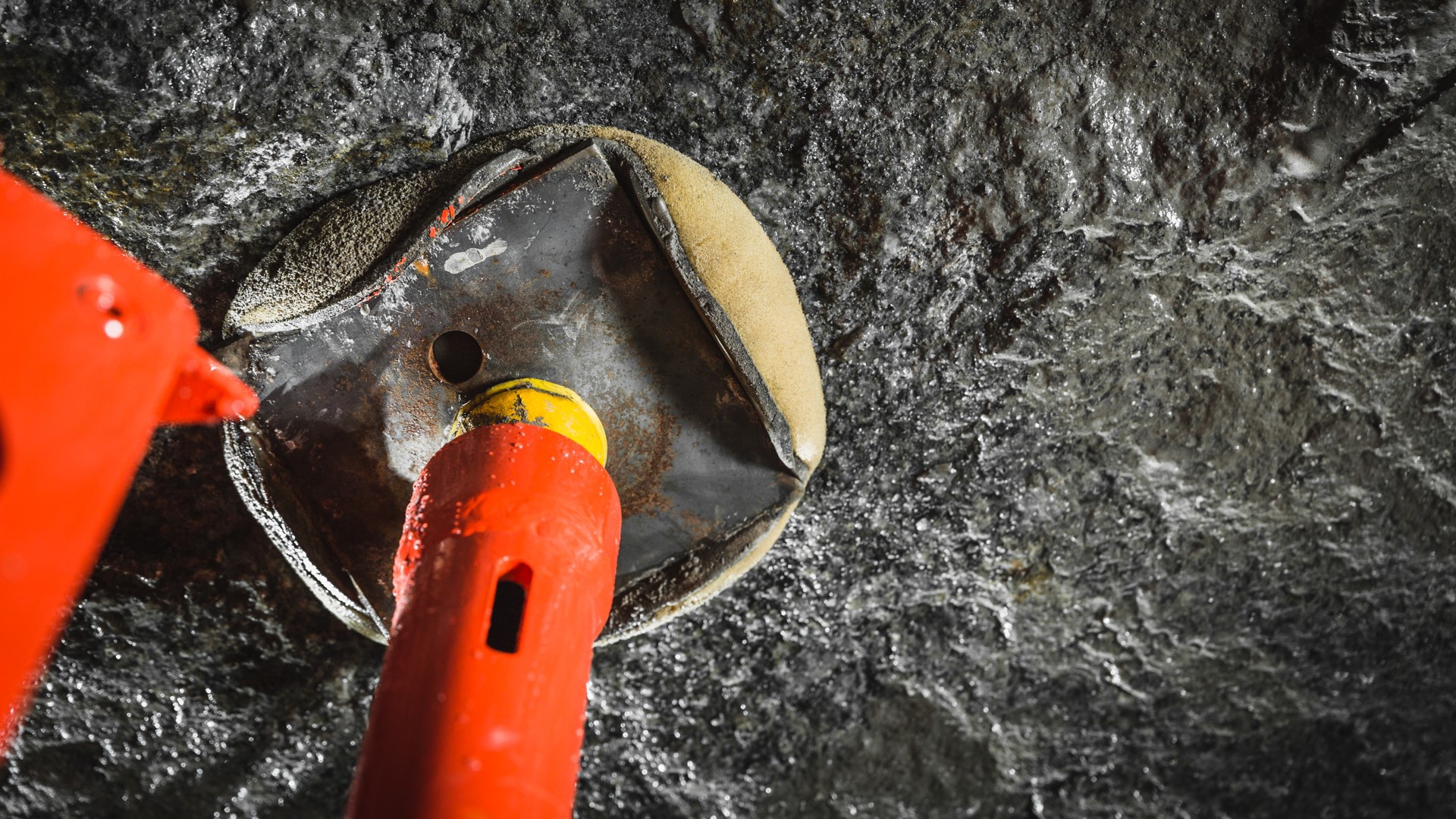

The pre-tensioned cable bolt installation offers immediate rock support and a safer environment for the operator to perform the post-grouting.
Immediate rock support
The pre-tensioned cable bolt installation offers immediate rock support and a safer environment for the operator to perform the post-grouting.
The pre-tensioned cable bolt installation offers immediate rock support and a safer environment for the operator to perform the post-grouting.
-
One-hole automation

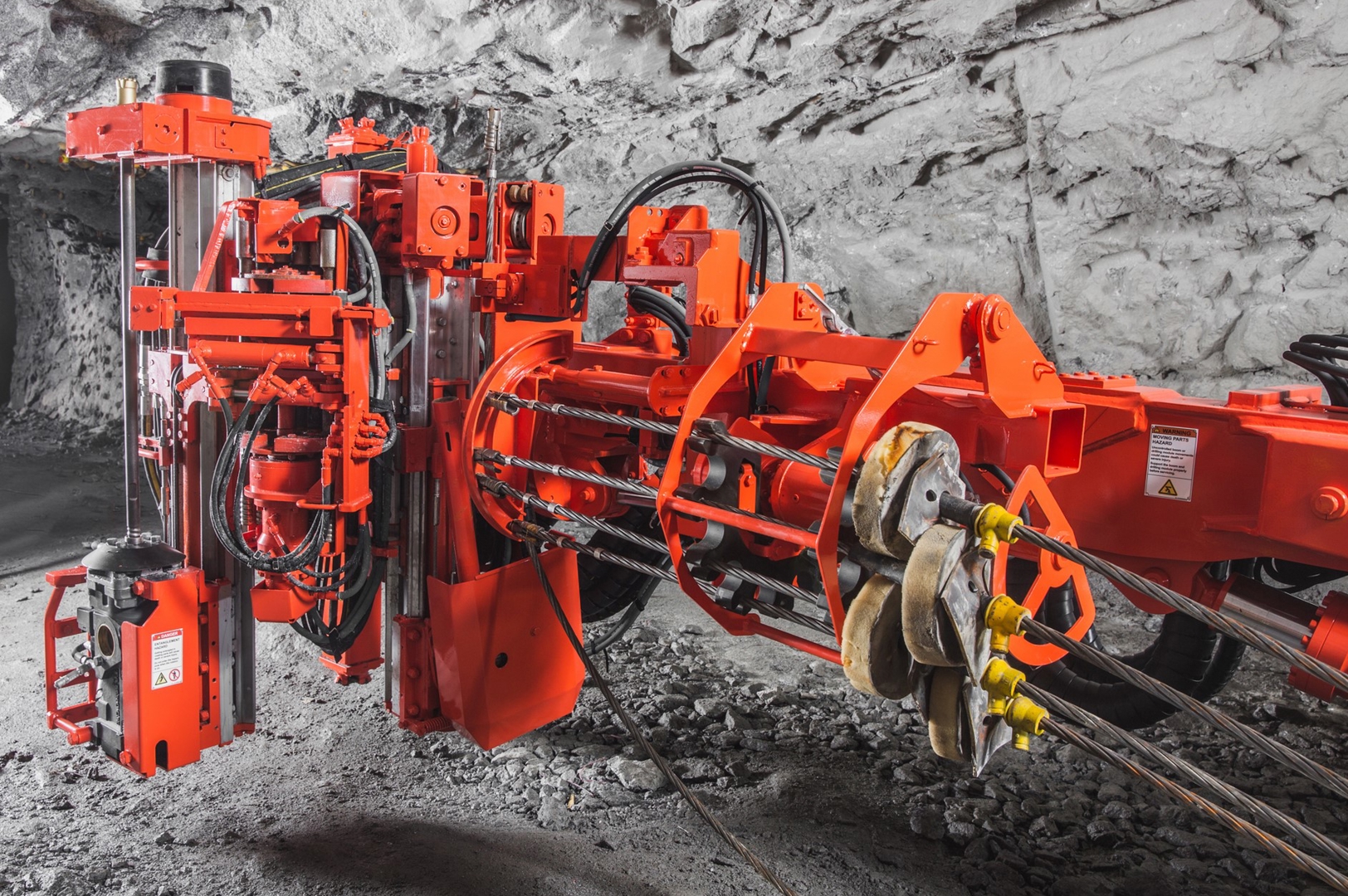

One-hole automation means the bolter can drill holes automatically, making the bolting process more efficient.
One-hole automation
One-hole automation means the bolter can drill holes automatically, making the bolting process more efficient.
One-hole automation means the bolter can drill holes automatically, making the bolting process more efficient.
-
Safe working environment

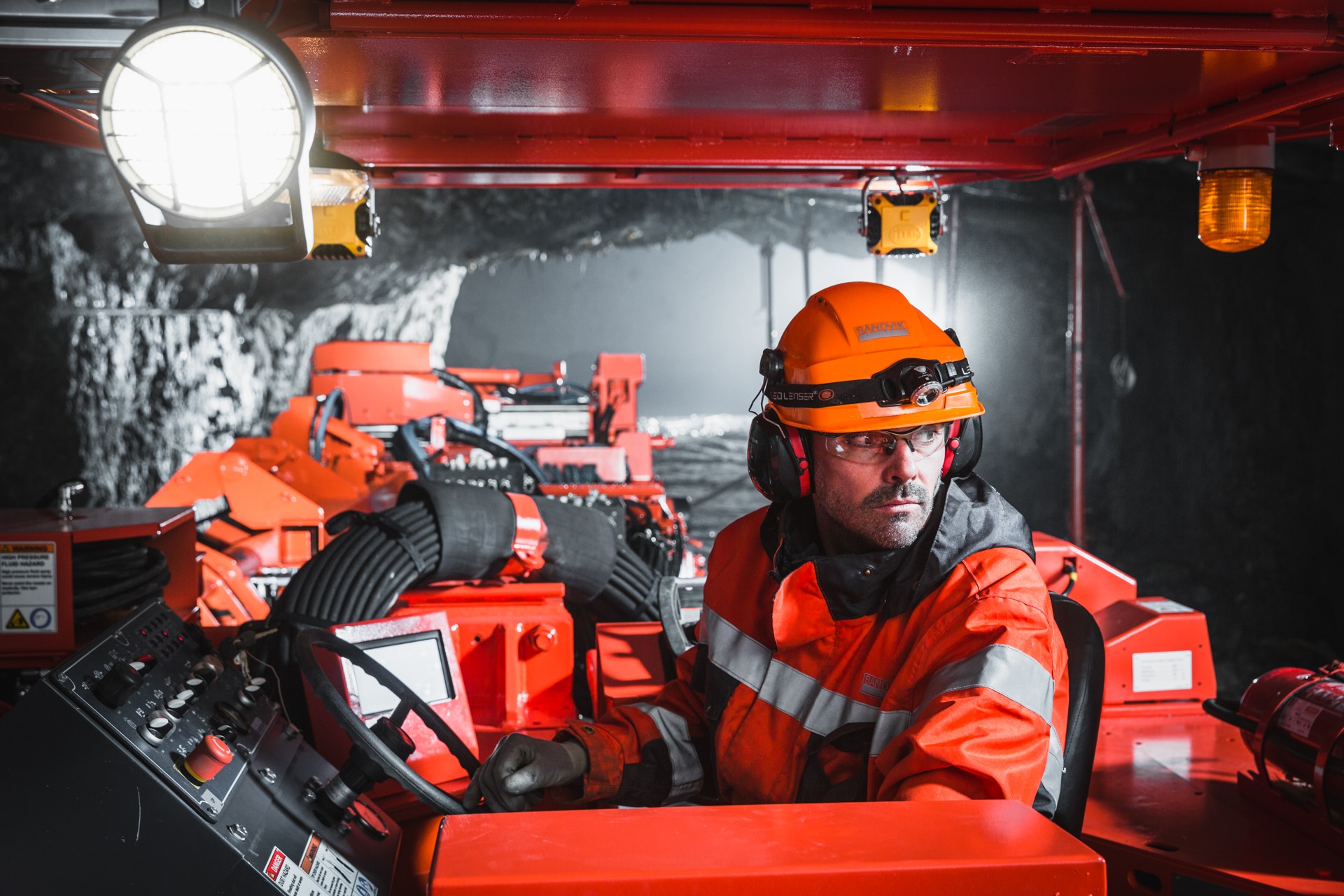

The operator is protected by a FOPS/ROPS canopy and can safely perform bolting operations away from the dangerous area by using the remote control panel.
Safe working environment
The operator is protected by a FOPS/ROPS canopy and can safely perform bolting operations away from the dangerous area by using the remote control panel.
The operator is protected by a FOPS/ROPS canopy and can safely perform bolting operations away from the dangerous area by using the remote control panel.
Learn more about DS221L features
Improved ergonomics
No more manual rod handling and no restriction on the operator’s physical strength.
Easy maintenance
Daily and routine checks can be done from the ground. The components commonality with other products in the 211L range make logistics easier.
Product specifications
Downloads
DS221L operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Bolting coverage
- 6.1 x 2.8 m
- Hole length
- Up to 6 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - BF4M2012 (74kW, Tier 2)
- Hole diameter
- 38 - 48 mm
- Steel strand diameter
- 18.0 mm
- Bolting coverage
- 6.1 x 2.8 m
- Hole length
- Up to 6 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - BF4M2012 (74kW, Tier 2)
- Hole diameter
- 38 - 48 mm
- Steel strand diameter
- 18.0 mm
- Rock drill
- RD314, 14kW
- Controls type
- THC561, hydraulic control
- Automation package
- None
- Weight
- 17,000.000 kg
