DR416iE
Request a quote
Rotary blasthole drill rigs
DR416iE
- Hole diameter
- 270.00 - 406.00 mm (10.63 - 16.00 in.)
- Weight on bit
- Up to 65,770 kg (145,000 lbs)
- Single pass hole depth
- Up to 21 m (69 ft)

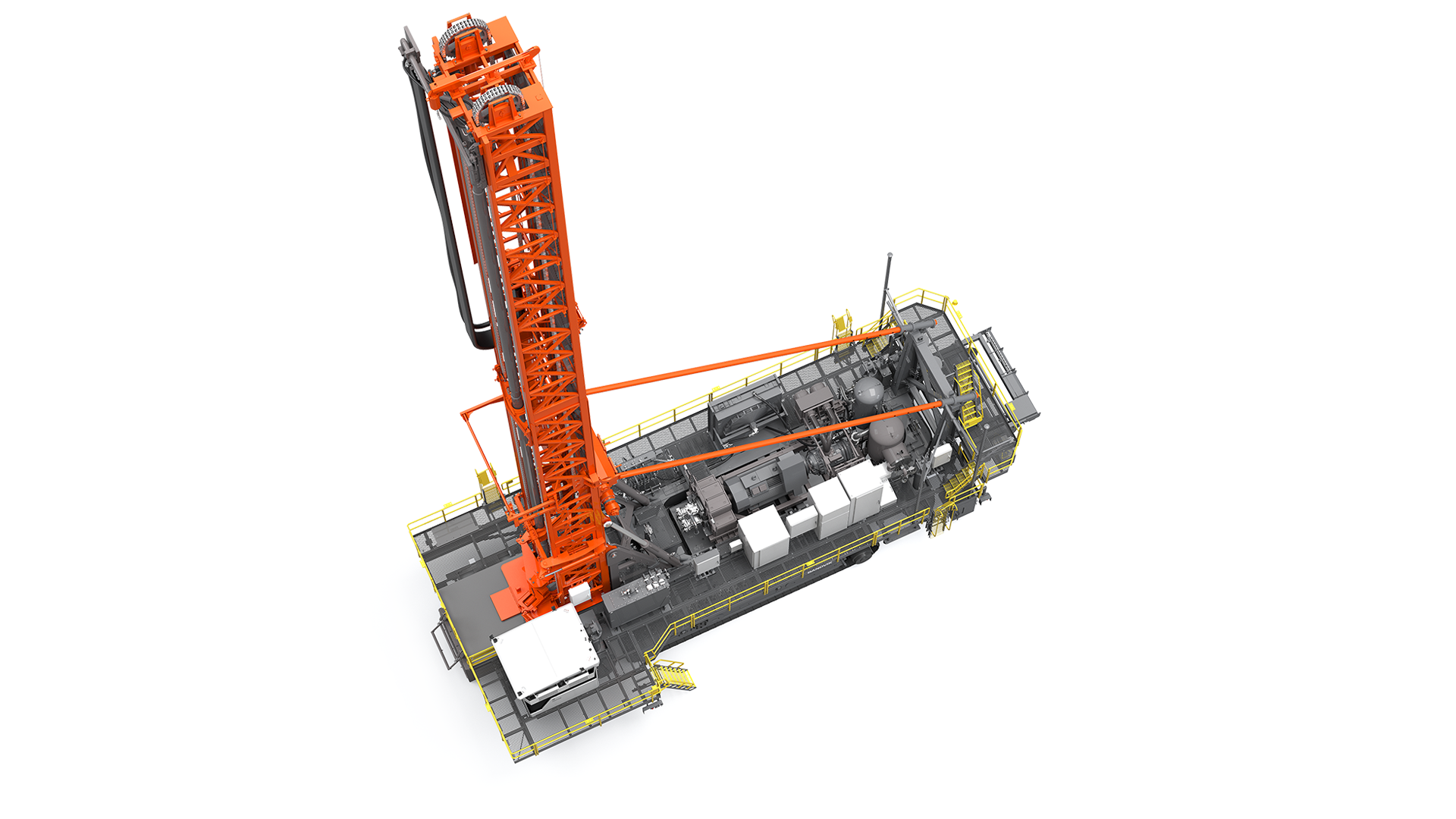

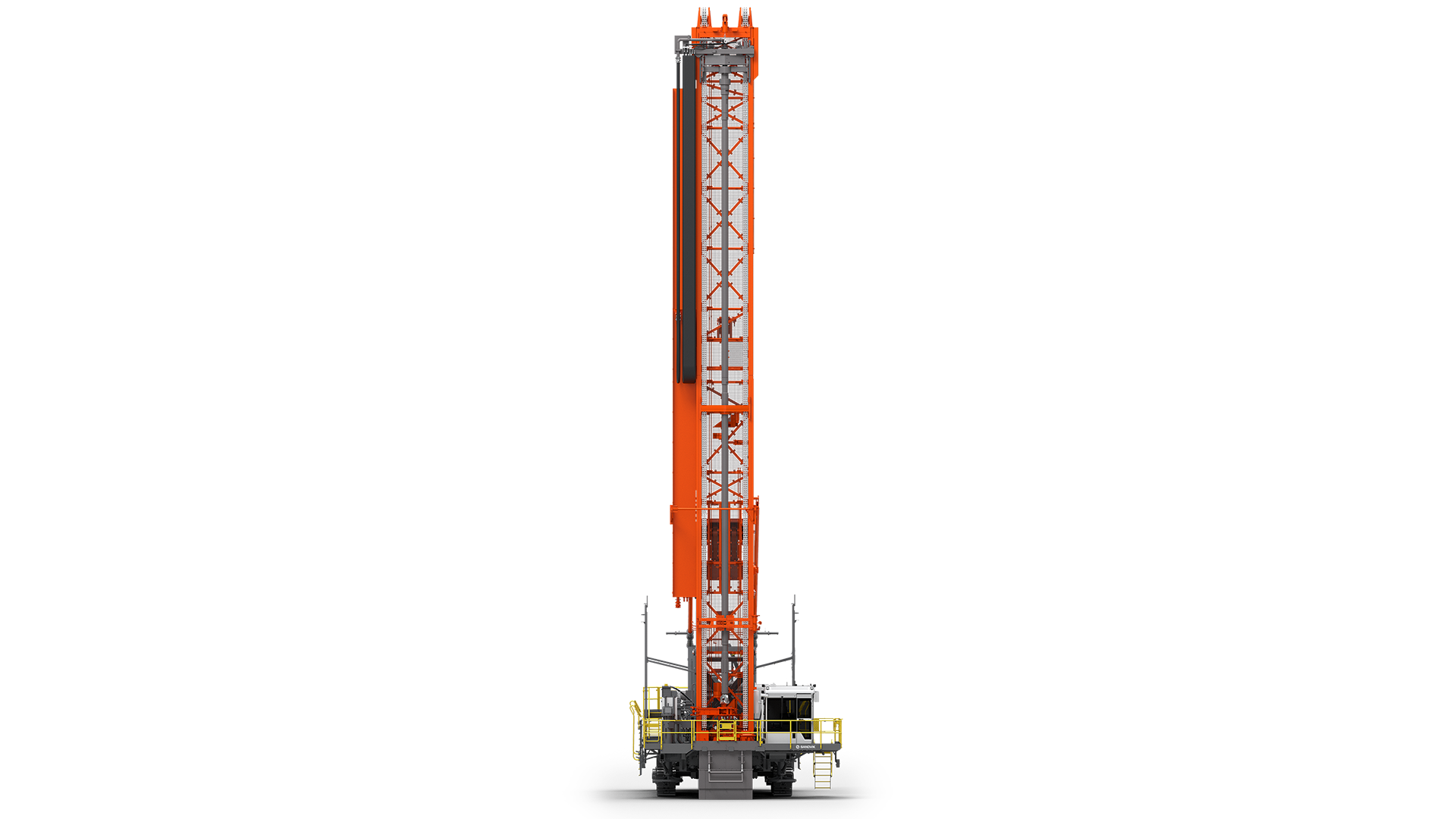

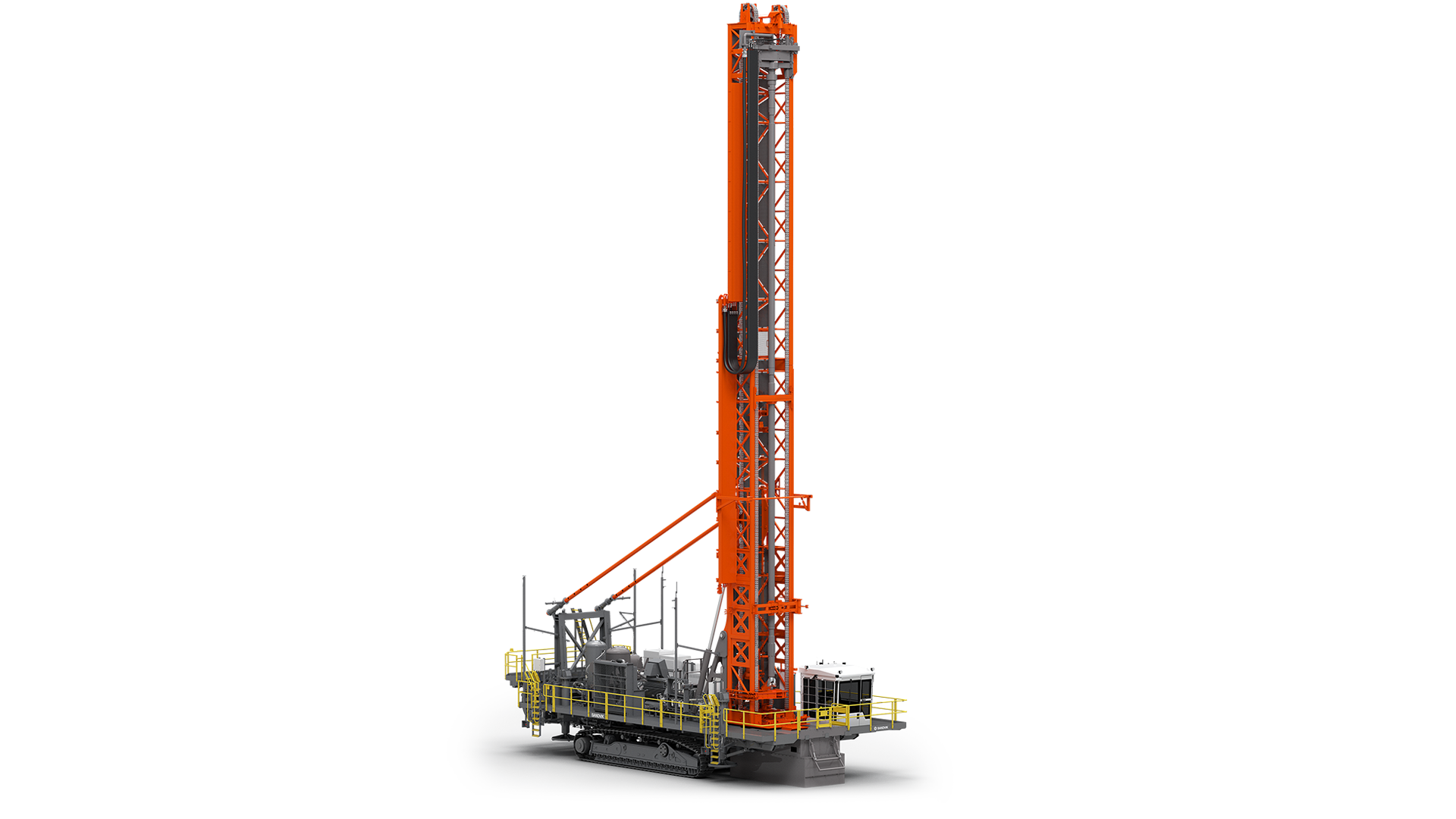

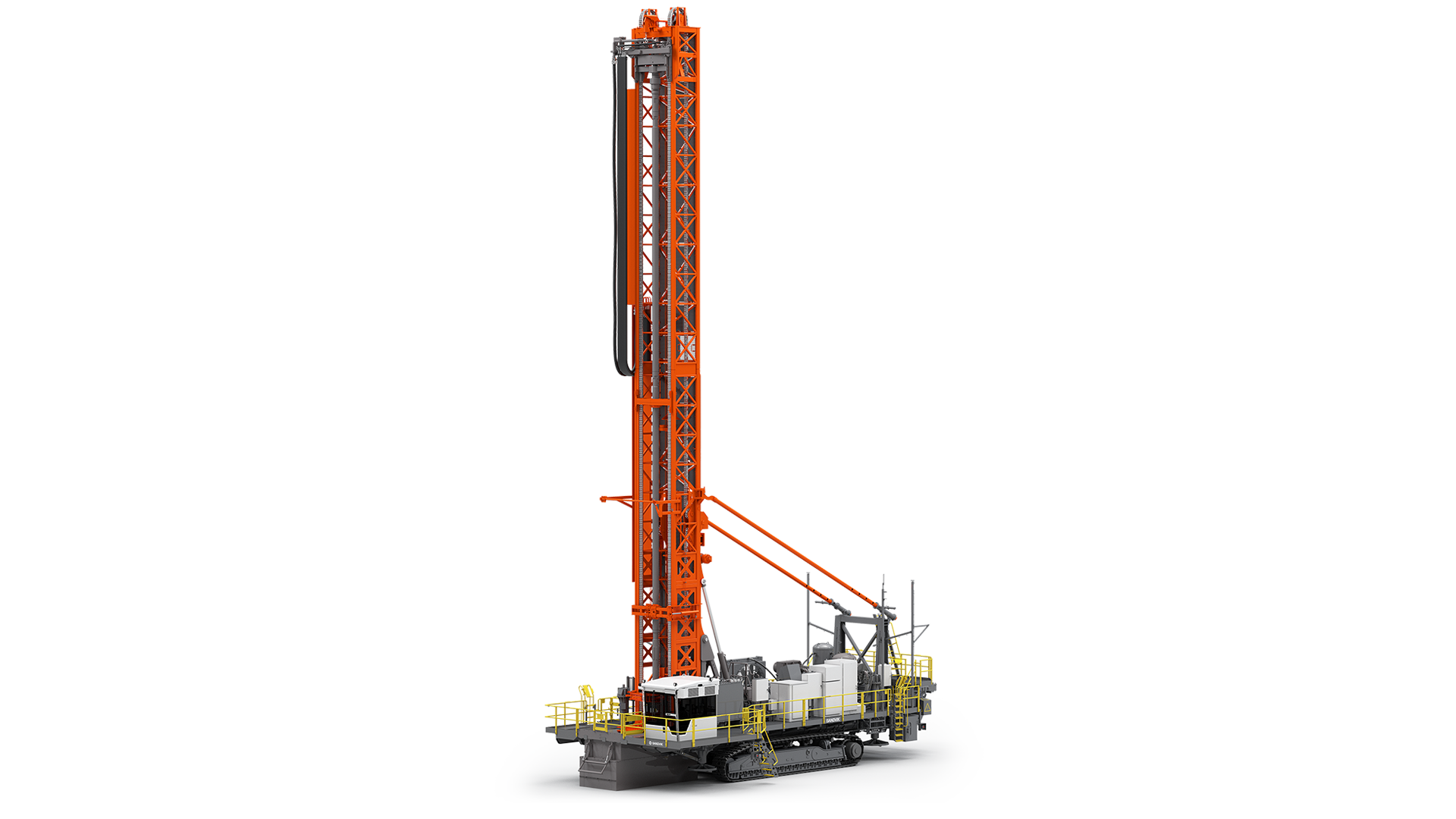

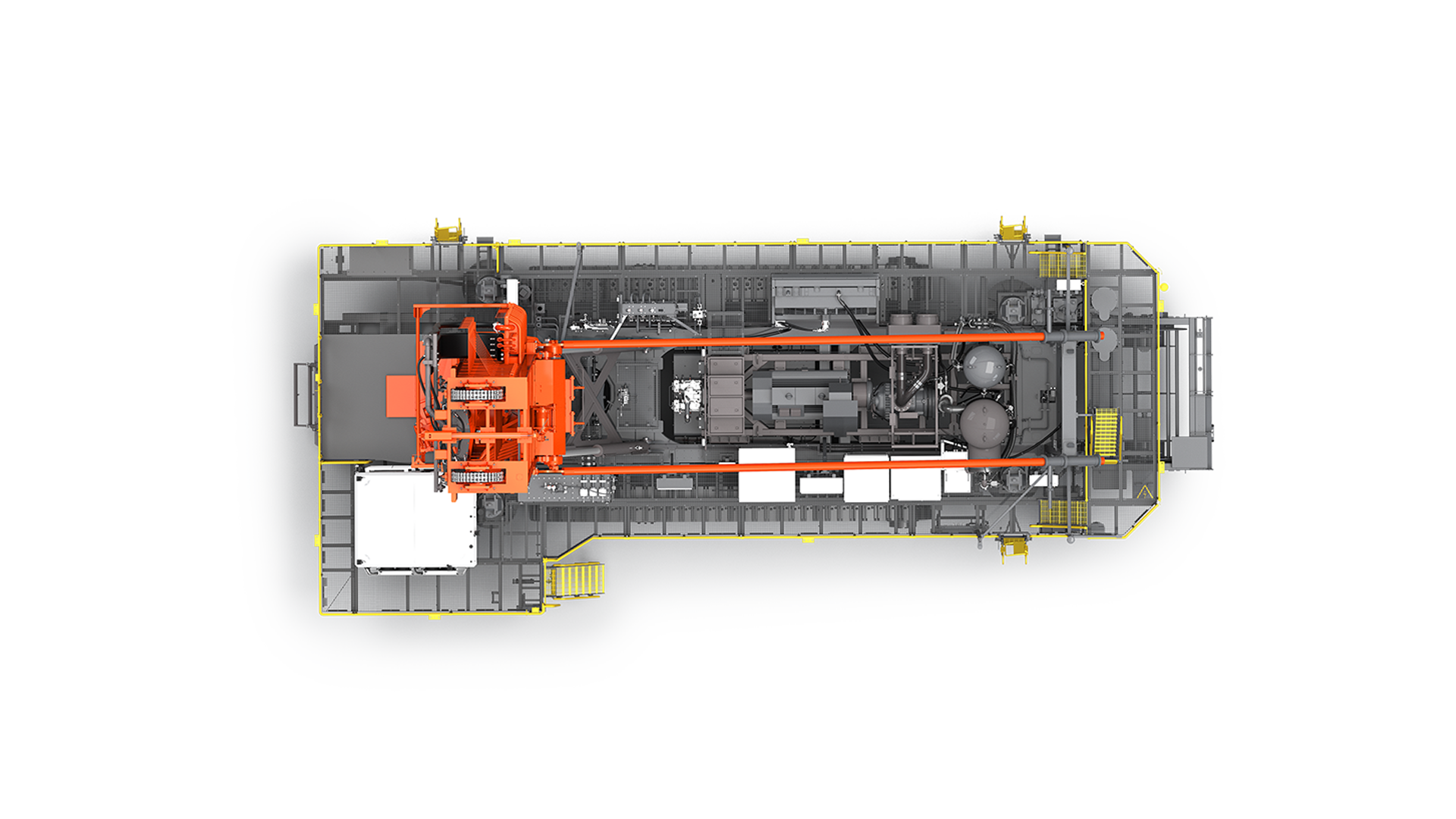

Sandvik DR416iE blasthole drill rig delivers a single-pass capacity of 21 meters (69 ft), the longest in its class along with a maximum depth of 42.4 meters (139ft) across all recommended pipe diameters. It combines power with intelligence and delivers a reliable, high-yielding production environment.
Features
-
Multi-voltage, multi-frequency power pack with soft starter
Sandvik iSeries electric rotary drills comes with flexibility in terms of electric motor. The electric motor is multi-voltage (4160-7200 V) and 50/60Hz rated to cover the global power supply needs. Onboard Soft starter is standard to reduce impact on mine power grid and affect the work on other machines.
Multi-voltage, multi-frequency power pack with soft starter
Sandvik iSeries electric rotary drills comes with flexibility in terms of electric motor. The electric motor is multi-voltage (4160-7200 V) and 50/60Hz rated to cover the global power supply needs. Onboard Soft starter is standard to reduce impact on mine power grid and affect the work on other machines.
Sandvik iSeries electric rotary drills comes with flexibility in terms of electric motor. The electric motor is multi-voltage (4160-7200 V) and 50/60Hz rated to cover the global power supply needs. Onboard Soft starter is standard to reduce impact on mine power grid and affect the work on other machines.
-
Cable reel-optional
Optional 420m cable reel to connect to mine substation.
Cable reel-optional
Optional 420m cable reel to connect to mine substation.
Optional 420m cable reel to connect to mine substation.
-
Traveling centralizer
The traveling centralizer reduces pipe flex, leading to improved drilling accuracy and straighter holes. It also reduces vibration, creating a more comfortable operating environment.
Traveling centralizer
The traveling centralizer reduces pipe flex, leading to improved drilling accuracy and straighter holes. It also reduces vibration, creating a more comfortable operating environment.
The traveling centralizer reduces pipe flex, leading to improved drilling accuracy and straighter holes. It also reduces vibration, creating a more comfortable operating environment.
Learn more about DR416iE features
Performance and productivity
Sandvik Intelligent Control System Architecture (SICA) provides real-time feedback on the machine’s performance and health, with tools for drill planning, reporting and analysis, improving availability and productivity.
iDrill technology
The iDrill technology is a scalable automation platform, which provides automation options and digital services designed to speed up production and support mine operations.
Product specifications
- Hole diameter
- 270.00 - 406.00 mm (10.63 - 16.00 in.)
- Weight on bit
- Up to 65,770 kg (145,000 lbs)
- Single pass hole depth
- Up to 21 m (69 ft)
- Drilling method
- Rotary
- Max. hole depth
- Up to 42.40 m (139.00 ft)
- Hole diameter
- 270.00 - 406.00 mm (10.63 - 16.00 in.)
- Weight on bit
- Up to 65,770 kg (145,000 lbs)
- Single pass hole depth
- Up to 21 m (69 ft)
- Drilling method
- Rotary
- Max. hole depth
- Up to 42.40 m (139.00 ft)
- Pull down force
- Up to 534 kN (120,000 lbf)
- Electric motor
- ABB 1,044 kW (1,400 hp) / 4,160V, 6,600V, 7,200V / 50/60 hZ Soft starter standard
- Compressor
- 109 m3 per min @ 5.9 bar (3,850 CFM @ 85 psi)
All performance figures are theoretical and at 100% systems efficiency.
