LH209L

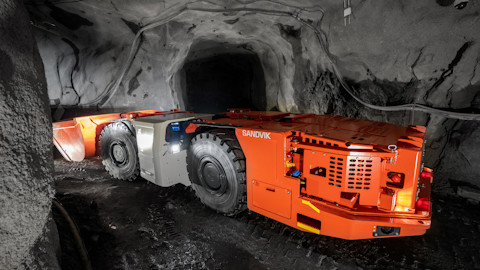

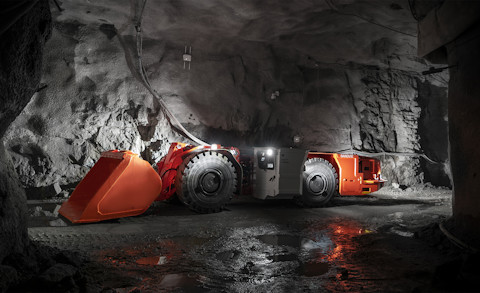

Toro® LH209L loader is a robust and dependable low-profile loader. It offers the largest payload capacity (at 9,600 kg) in its size class and is designed for underground mining operations with headrooms as low as 1.8 meters.

Features

Low-profile design

LH209L is purposefully designed for efficient operation in underground mines with limited heights. Its robust structure has reinforced rear sections to withstand ground and roof impacts common in low-profile operations.

Low-profile design

LH209L is purposefully designed for efficient operation in underground mines with limited heights. Its robust structure has reinforced rear sections to withstand ground and roof impacts common in low-profile operations.

LH209L is purposefully designed for efficient operation in underground mines with limited heights. Its robust structure has reinforced rear sections to withstand ground and roof impacts common in low-profile operations.
Easy to navigate

Thanks to its small envelope size and turning radius, the loader is easy to navigate in confined spaces.

Easy to navigate

Thanks to its small envelope size and turning radius, the loader is easy to navigate in confined spaces.

Thanks to its small envelope size and turning radius, the loader is easy to navigate in confined spaces.
Straightforward servicing

All required daily checks can be done conveniently on the ground level. The loader’s 7 inch display provides operators with crucial information about the loader's condition, so that proactive measures can be taken to prevent damage and unplanned downtime.

Straightforward servicing

All required daily checks can be done conveniently on the ground level. The loader’s 7 inch display provides operators with crucial information about the loader's condition, so that proactive measures can be taken to prevent damage and unplanned downtime.

All required daily checks can be done conveniently on the ground level. The loader’s 7 inch display provides operators with crucial information about the loader's condition, so that proactive measures can be taken to prevent damage and unplanned downtime.

Product specifications

Download LH209L technical specification sheet (PDF)

Download load and haul stage V engine technology (PDF)

My Sandvik

LH209L operating manual and spare parts

Operating manuals and spare parts can be found on the My Sandvik customer portal.

Go to My Sandvik

Dimensions (LxWxH): 10,000 x 3,500 x 1,700 mm
Capacity: 9,600 kg
Bucket range: 4.6 - 5.4 m³
Break out force, lift: 20,160 kg
Break out force, tilt: 17,540 kg
Operating weight *: 25,800 kg
Maximum driving speed (Level/loaded): 20.8 km/h

*Unit weight is dependent on the selected options
