Sandvik Alpha® 360
Request a quote
Top hammer drilling tools
Sandvik Alpha® 360
- Rod length
- 3.7 - 6.1 m
- Bit size
- 48 - 64 mm
- Reaming bit size
- 102 - 127 mm

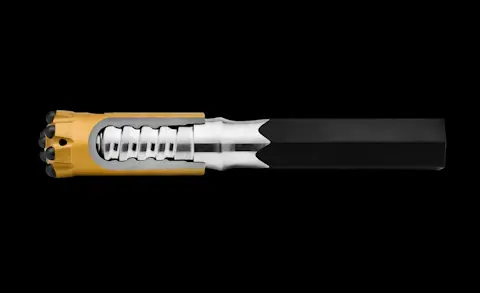

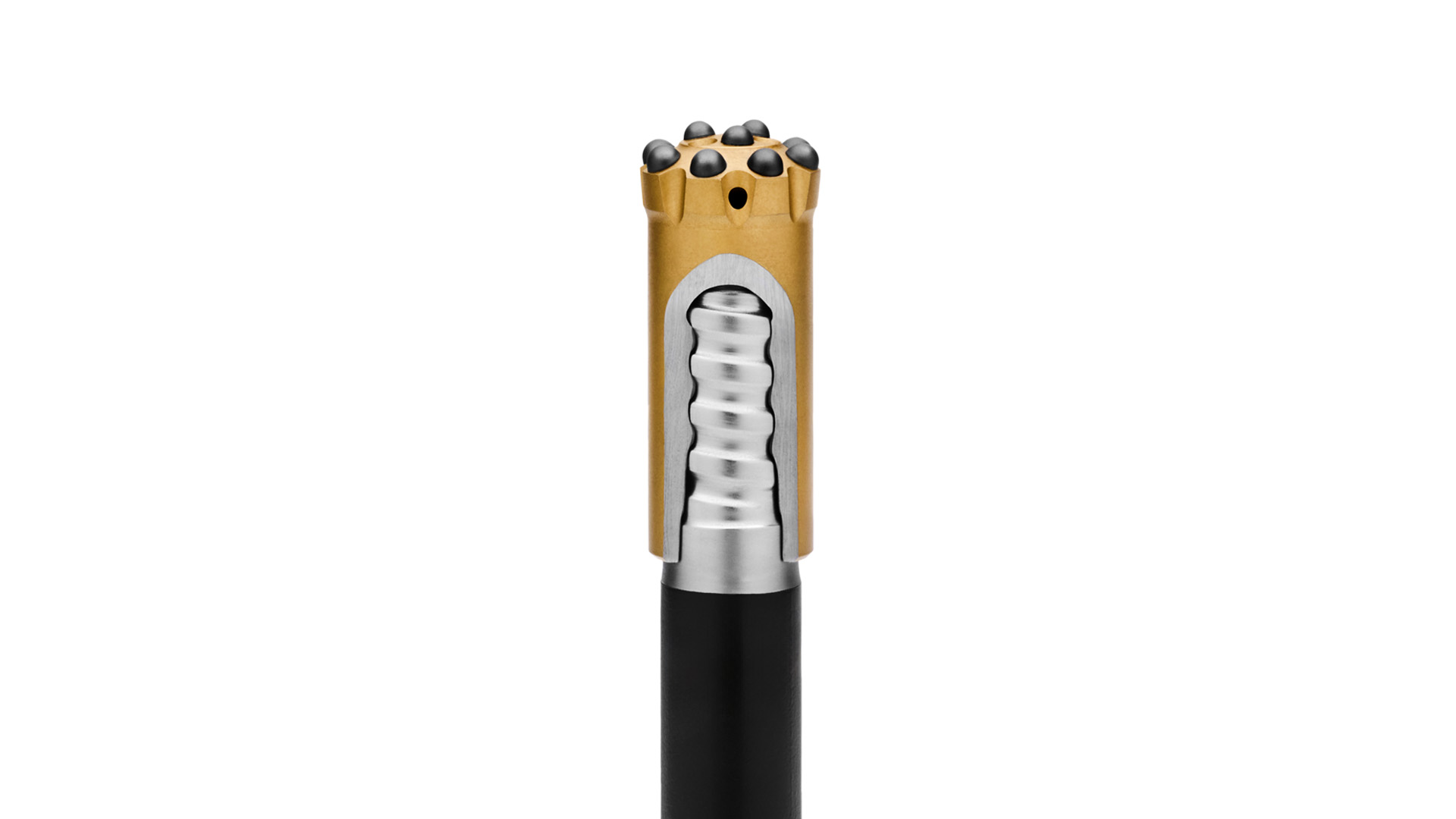

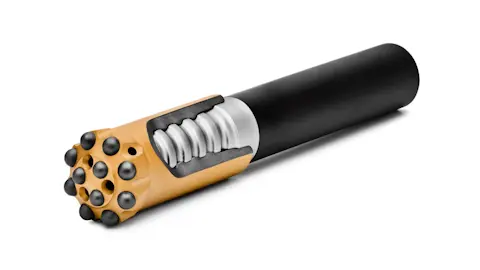

Sandvik Alpha® 360 is an addition to the unique Sandvik Alpha® system. Its robust design offers double the lifespan compared to industry standard solutions, making it suitable for various drilling conditions. It combines durability with precise hole accuracy, resulting in increased productivity for tunneling and mine development.
Features
-
Improved design

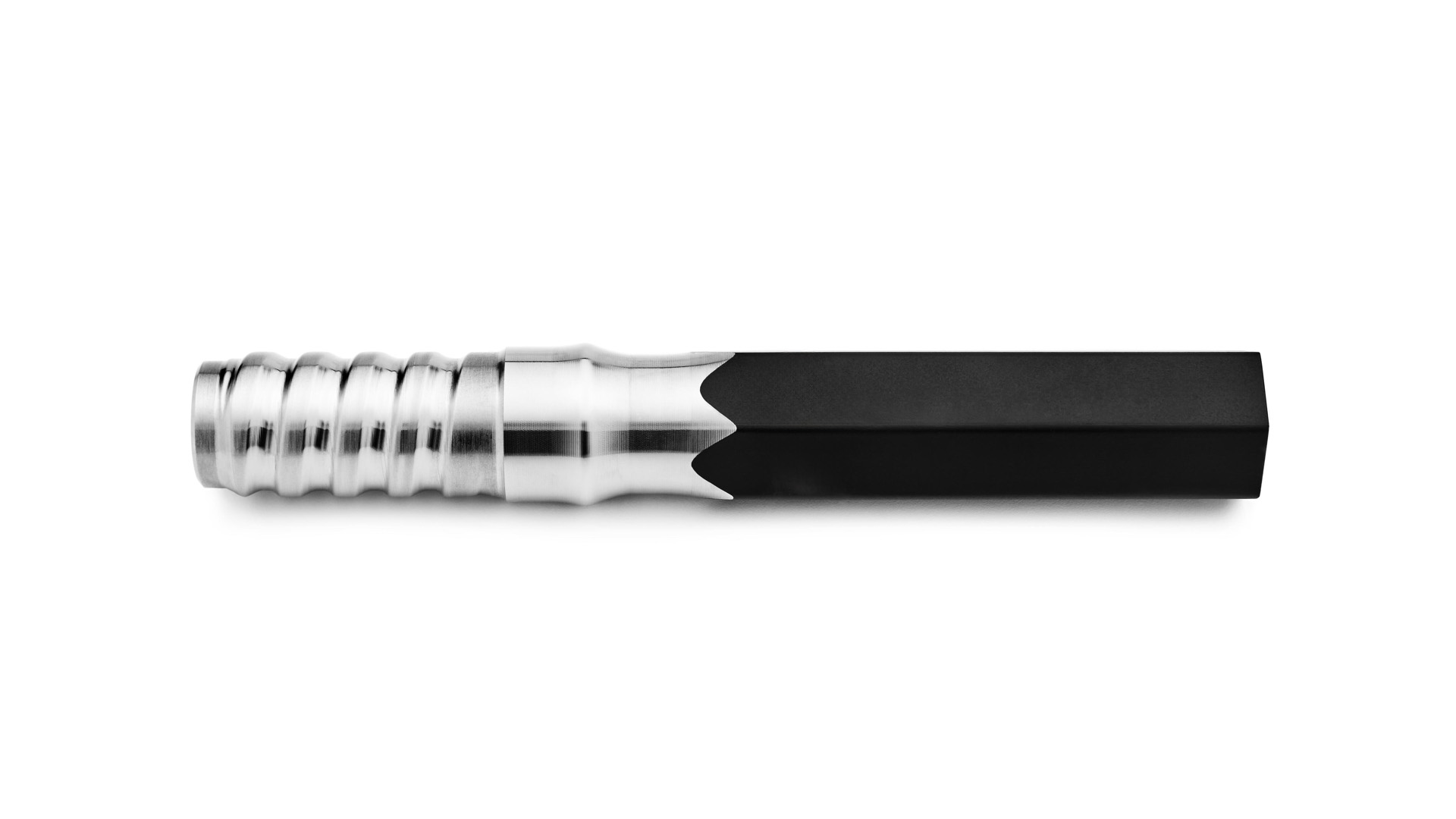

The tool combines a robust short thread with a sturdy guide system. This increases resistance to bending stresses, improves bit guidance and ensures effective energy transfer.
Improved design
The tool combines a robust short thread with a sturdy guide system. This increases resistance to bending stresses, improves bit guidance and ensures effective energy transfer.
The tool combines a robust short thread with a sturdy guide system. This increases resistance to bending stresses, improves bit guidance and ensures effective energy transfer.
-
Higher productivity
High drilling precision in straight and parallel holes increases advance per blast. The design of the tools enables high-precision collaring in complex rock formations and against uneven surfaces, which enhances productivity in challenging conditions.
Higher productivity
High drilling precision in straight and parallel holes increases advance per blast. The design of the tools enables high-precision collaring in complex rock formations and against uneven surfaces, which enhances productivity in challenging conditions.
High drilling precision in straight and parallel holes increases advance per blast. The design of the tools enables high-precision collaring in complex rock formations and against uneven surfaces, which enhances productivity in challenging conditions.
-
Focus on sustainability
Increased service life, lower cost per meter and less time spent changing tools means a lower carbon footprint, reducing global emissions.
Focus on sustainability
Increased service life, lower cost per meter and less time spent changing tools means a lower carbon footprint, reducing global emissions.
Increased service life, lower cost per meter and less time spent changing tools means a lower carbon footprint, reducing global emissions.
Product specifications
Downloads
Sandvik Alpha® 360 operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Rod length
- 3.7 - 6.1 m
- Bit size
- 48 - 64 mm
- Reaming bit size
- 102 - 127 mm
- Thread design
- Asymmetric
- PowerCarbide®
- Yes
Efficient rental collaboration
Related Products and Services
Equipment
Surface drill rigs
Designed to work in the toughest operating conditions, our surface drill rigs combine power with precision and are designed for efficiency and operator comfort.
Equipment
Underground drill rigs
Available in a variety of feed lengths, boom configurations and size classes, our underground drill rigs maximize productivity while delivering the lowest cost per meter.
Services
Rock tools services
In addition to supplying your operation with the premium brand of rock tools, our range of added services and digital solutions support your drilling operations, everyday – all year round.
Our range of top hammer drilling tools
Top hammer Golden Shank
- Rod length
- m
- Bit size
- mm
- Reaming bit size
- mm
- Diameter
- 38 - 90 mm
- Length
- 435 - 835 mm
- Thread
- T38, T45, ST58, ST68, CT67

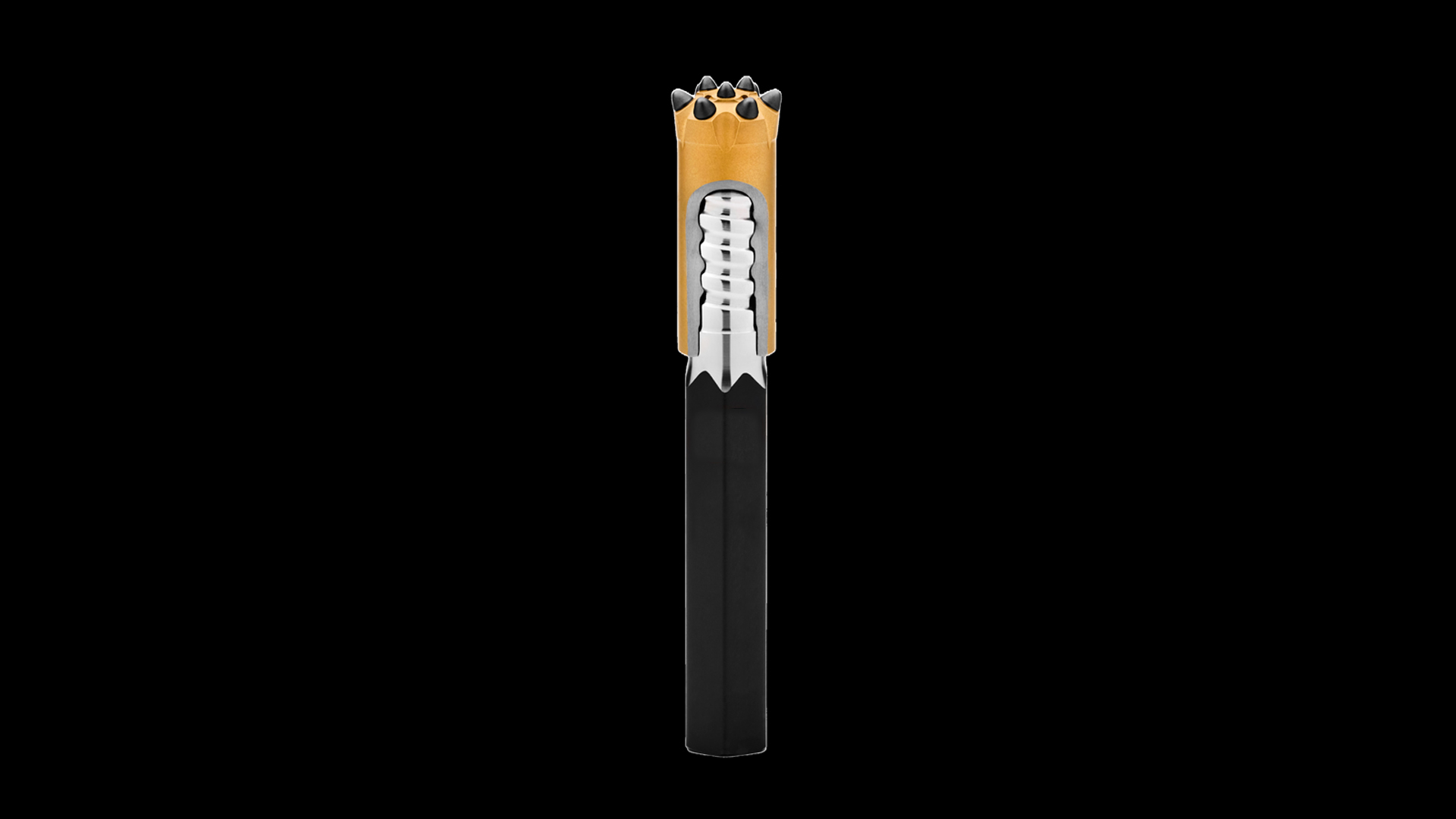

Sandvik Alpha® 340
