Dynamic solid bolts
Versabolt™
- Bar diameter
- ⌀20 mm / ⌀22 mm
- Standard length
- 1.8 - 3.5 m
- Yield strength
- ⌀20mm: 164 kN – 18 tons / ⌀22mm: 193 kN – 21.7 tons
The Versabolt™ is a versatile and high-performance anchoring solution designed to adapt to a wide range of underground conditions. The bolt is engineered for flexibility and reliability. The innovative design allows for efficient installation and ensures robust support.
Features
-
Versatile
The Versabolt™ is designed for ground support conditions that are subject to static or dynamic stresses where conventional bolting techniques are too rigid.
Versatile
The Versabolt™ is designed for ground support conditions that are subject to static or dynamic stresses where conventional bolting techniques are too rigid.
The Versabolt™ is designed for ground support conditions that are subject to static or dynamic stresses where conventional bolting techniques are too rigid.
-
Specialized steel
The bolt is made from specialized steel with both high tensile strength and elongation properties.
Specialized steel
The bolt is made from specialized steel with both high tensile strength and elongation properties.
The bolt is made from specialized steel with both high tensile strength and elongation properties.
-
Absorbs energy
In the first phase of loading the bolt will behave similarly to resin rebar. When the yield point is exceeded the steel plastically deforms which allows for controlled deformation of the rock mass. This allows the bolt to absorb the energy of a rock burst or squeezing ground.
Absorbs energy
In the first phase of loading the bolt will behave similarly to resin rebar. When the yield point is exceeded the steel plastically deforms which allows for controlled deformation of the rock mass. This allows the bolt to absorb the energy of a rock burst or squeezing ground.
In the first phase of loading the bolt will behave similarly to resin rebar. When the yield point is exceeded the steel plastically deforms which allows for controlled deformation of the rock mass. This allows the bolt to absorb the energy of a rock burst or squeezing ground.
Product specifications
Downloads
- Bar diameter
- ⌀20 mm / ⌀22 mm
- Standard length
- 1.8 - 3.5 m
- Yield strength
- ⌀20mm: 164 kN – 18 tons / ⌀22mm: 193 kN – 21.7 tons *
Safe, efficient bolting – Seamlessly integrated with Dual Controls
New pumpable resin package for Dual Controls

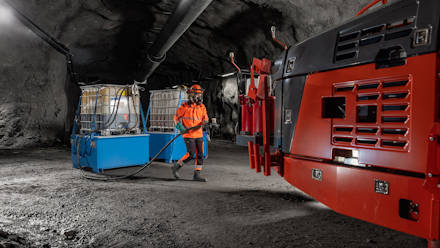

The new pumpable resin package for Dual Controls enhances bolt installation, giving operators full control in challenging ground. It’s fully compatible with Versabolt™ for dynamic conditions, as well as DSI Hollow Bar System / Self-Drilling Bolts, and Resin Roof Bolts.
Mineral Bolt technology for demanding ground conditions
The Mineral Bolt resin is engineered for demanding ground conditions. Compatible with Sandvik Dual Controls’ new pumpable resin system and manual injection, it cures fast and performs consistently—making bolting safer and faster underground.
Post-grouting installation for high productivity
The DSI Hollow Bar System are self-drilling bolts and designed for post-grouting installation to maximize productivity and safety, even in complex geology and are also compatible with new pumpable resin system. Ideal for deep mining, block caving, and rehabilitation projects.
Our range of rebar bolts
Manx Bolt
- Bar diameter
- Ø 21.7 mm
- Standard length
- 0.6 - 3.0 m
- Yield strength
- Minimum: 600 MPa – 200 kN / Typical: 650 MPa – 240 kN
