Solid bolts
Solid bolts are crucial components of secure and reliable ground support in mining and tunneling operations. The bolts are designed to withstand high stress environments, ensuring structural integrity even in challenging conditions.
10 results
-
INSTaL and Resin boltingMining boltsINSTaL and Resin bolting
- Bar diameter
- ⌀16 mm / ⌀18 mm / ⌀20 mm
- Yield strength
- 500 MPa
- Ulimate load
- ⌀16 mm: 140 kN / ⌀18 mm: 178 kN / ⌀20 mm: 220 MPa
-
Manx BoltRebar boltManx Bolt
- Bar diameter
- Ø 21.7 mm
- Standard length
- 0.6 - 3.0 m
- Yield strength
- Minimum: 600 MPa – 200 kN / Typical: 650 MPa – 240 kN
-
INSTa-RBMining boltsINSTa-RB
- Bar diameter
- ⌀14.5 mm / ⌀16 mm
- Yield strength
- ⌀14.5 mm: 450 MPa / ⌀16 mm: 500 MPa
- Ultimate tensile strength
- ⌀14.5 mm: 590 MPa / ⌀16 mm: 700 MPa
-
Double Corrosion Protection (DCP) boltsFully threaded boltsDouble Corrosion Protection (DCP) bolts
- Bar diameter
- ⌀20 mm / ⌀25 mm / ⌀32 mm
- Yield strength
- ⌀22 / 25 mm: 500 MPa / ⌀32 mm: 450 MPa
- Ultimate tensile strength
- ⌀22 / 25 mm: 700 MPa / ⌀32 mm: 620 MPa
-
Paddle BoltMining boltsPaddle Bolt
- Bar diameter
- ⌀18 mm / ⌀20 mm / ⌀25 mm
- Yield strength
- 500 MPa
- Yield load
- ⌀18 mm: 127 kN / ⌀20 mm: 157 kN / ⌀25 mm: 245 kN
-
Resin Roof BoltMining boltsResin Roof Bolt
- Bar diameter
- ⌀16 mm / ⌀18 mm / ⌀20 mm / ⌀22 mm / ⌀25 mm
- Yield strength
- ⌀16 / 18 / 20 / 25 mm: 500 MPa / ⌀22 mm: 600 MPa HS
- Ultimate tensile strength
- 700 MPa
-
Yield-Lok® BoltDynamic solid boltsYield-Lok® Bolt
- Bar diameter
- ⌀18 mm
- Shear strength
- 120 kN
- Ultimate tensile load
- 200 kN
-

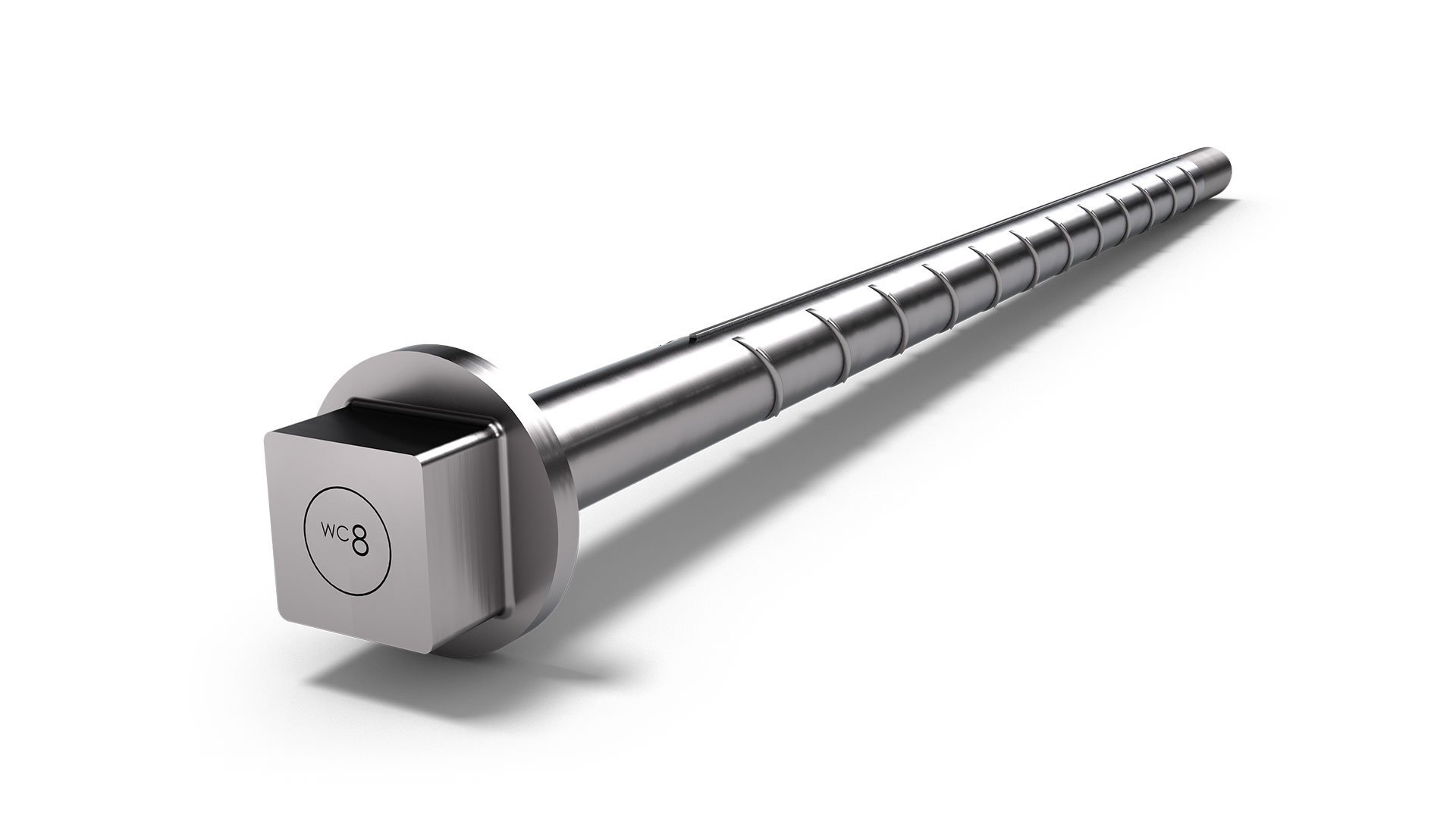

Forged Head Rebar BoltForged headsForged Head Rebar Bolt
- Bar diameter
- ⌀20 mm / ⌀22 mm / ⌀25 mm
- Standard length
- 1 - 3 m
- Yield strength
- Ø 20 mm: 26,400 lbs (117 kN) / Ø 22 mm: 36,100 lbs (161 kN)
-
Posimix Dynamic Resin BoltDynamic solid boltsPosimix Dynamic Resin Bolt
- Bar diameter
- ⌀20 mm / ⌀24mm
- Standard length
- 1.5 - 3.0 m
- Yield strength
- ⌀20mm: 615 MPa – 185 kN / ⌀24mm: 615 MPa – 266 kN
-
Versabolt™Dynamic solid boltsVersabolt™
- Bar diameter
- ⌀20 mm / ⌀22 mm
- Standard length
- 1.8 - 3.5 m
- Yield strength
- ⌀20mm: 164 kN – 18 tons / ⌀22mm: 193 kN – 21.7 tons
