Mechanical Anchor Bolt
Request a quote
Mining bolts
Mechanical Anchor Bolt
- Bar diameter
- ⌀14.5 mm / ⌀16 mm
- Yield strength
- ⌀14.5 mm: 450 MPa / ⌀16 mm: 500 MPa
- Ultimate tensile strength
- ⌀14.5 mm: 590 MPa / ⌀16 mm: 700 MPa
The Mechanical Anchor Bolt provides additional rock face support and is commonly used with wire mesh and support sheeting. It installs easily without grout or resin using standard equipment, ensuring a user-friendly application.
Features
-
Secure installation
The mechanical anchor features an expansion shell for quick and simple installation. Once in place, the expansion unit locks securely, preventing any movement and ensuring reliable rock face support.
Secure installation
The mechanical anchor features an expansion shell for quick and simple installation. Once in place, the expansion unit locks securely, preventing any movement and ensuring reliable rock face support.
The mechanical anchor features an expansion shell for quick and simple installation. Once in place, the expansion unit locks securely, preventing any movement and ensuring reliable rock face support.
-
Easy adaption
The anchor is compatible with standard equipment for a user-friendly installation. Optional grouting with grout feed and breather pipes enhances stability when needed.
Easy adaption
The anchor is compatible with standard equipment for a user-friendly installation. Optional grouting with grout feed and breather pipes enhances stability when needed.
The anchor is compatible with standard equipment for a user-friendly installation. Optional grouting with grout feed and breather pipes enhances stability when needed.
-
Versatile for various applications
Compatible with various drill sizes, bar diameters, and expansion shells for flexible installation.
Versatile for various applications
Compatible with various drill sizes, bar diameters, and expansion shells for flexible installation.
Compatible with various drill sizes, bar diameters, and expansion shells for flexible installation.
Product specifications
- Bar diameter
- ⌀14.5 mm / ⌀16 mm
- Yield strength
- ⌀14.5 mm: 450 MPa / ⌀16 mm: 500 MPa *
- Ultimate tensile strength
- ⌀14.5 mm: 590 MPa / ⌀16 mm: 700 MPa
- Ultimate tensile load
- ⌀14.5 mm: 97.3 kN / ⌀16 mm: 140 kN
Our range of mining bolts
INSTaL and Resin bolting
- Bar diameter
- ⌀16 mm / ⌀18 mm / ⌀20 mm
- Yield strength
- 500 MPa
- Ulimate load
- ⌀16 mm: 140 kN / ⌀18 mm: 178 kN / ⌀20 mm: 220 MPa
INSTa-RB
- Bar diameter
- ⌀14.5 mm / ⌀16 mm
- Yield strength
- ⌀14.5 mm: 450 MPa / ⌀16 mm: 500 MPa
- Ultimate tensile strength
- ⌀14.5 mm: 590 MPa / ⌀16 mm: 700 MPa
Paddle Bolt
- Bar diameter
- ⌀18 mm / ⌀20 mm / ⌀25 mm
- Yield strength
- 500 MPa
- Yield load
- ⌀18 mm: 127 kN / ⌀20 mm: 157 kN / ⌀25 mm: 245 kN

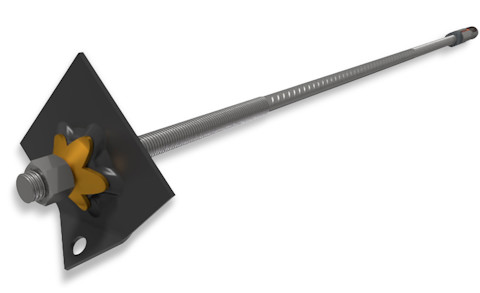

Resin Roof Bolt
- Bar diameter
- ⌀16 mm / ⌀18 mm / ⌀20 mm / ⌀22 mm / ⌀25 mm
- Yield strength
- ⌀16 / 18 / 20 / 25 mm: 500 MPa / ⌀22 mm: 600 MPa HS
- Ultimate tensile strength
- 700 MPa
