Titan Bolt
- Cable diameter
- ⌀28 mm
- Yield strength
- 550 kN
- Tensile strength
- 605 kN

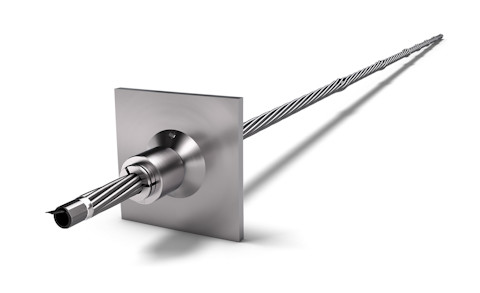

The Titan Bolt is a Ø28 mm high-tension, hollow cable bolt engineered for top-down grouting in combination with in-cycle resin cartridge point anchoring. Its flexible, hollow core enables direct grout delivery to the top of the bolt via a grouting lance through the central tube.
Features
-
Integrated grouting and anchoring
Central grout tube and hex drive enable efficient top-down grouting and resin cartridge anchoring.
Integrated grouting and anchoring
Central grout tube and hex drive enable efficient top-down grouting and resin cartridge anchoring.
Central grout tube and hex drive enable efficient top-down grouting and resin cartridge anchoring.
-
Secure pre-tensioning
Compatible with barrel and wedge assembly for reliable collar fastening and load transfer.
Secure pre-tensioning
Compatible with barrel and wedge assembly for reliable collar fastening and load transfer.
Compatible with barrel and wedge assembly for reliable collar fastening and load transfer.
-
Enhanced load distribution
Ø36 mm resin and grout bulbs spaced along the cable ensure optimal anchorage and controlled grout flow.
Enhanced load distribution
Ø36 mm resin and grout bulbs spaced along the cable ensure optimal anchorage and controlled grout flow.
Ø36 mm resin and grout bulbs spaced along the cable ensure optimal anchorage and controlled grout flow.
Product specifications
Downloads
- Cable diameter
- ⌀28 mm
- Yield strength
- 550 kN
- Tensile strength
- 605 kN
- Elongation (500mm free length)
- 6 %
- Mass per meter
- 3.0 kg
- Cable diameter
- ⌀28 mm
- Yield strength
- 550 kN
- Tensile strength
- 605 kN
- Elongation (500mm free length)
- 6 %
- Mass per meter
- 3.0 kg
- Cable (strand) diameter
- Ø28 mm
- Resin anchor bulbs
- 3 x nominal Ø36mm bulbs with 300mm spacing
- Grout anchor bulbs
- 500mm spacing
Product specification may vary by region. Please download the data sheet specific to your region. For questions, contact us via the form on our website or the contact details provided in the data sheet. Always confirm key specifications with your local representative. Corresponding certificates and documents can be found here.
