EziTen Cable Bolt
Request a quote
Discrete
EziTen Cable Bolt
- Cable diameter
- ⌀21.8 mm
- Yield strength
- Minimum: 495 kN / Typical: 525 kN
- Tensile strength
- Minimum: 573 kN / Typical: 595 kN

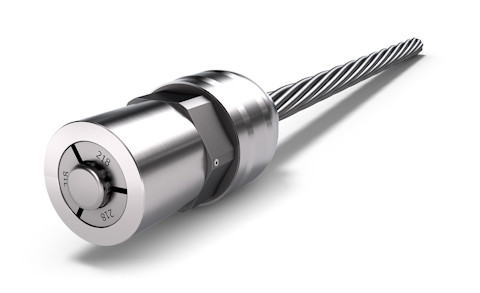

The EziTen cable bolt is a mechanically tensioned Ø21.8 mm solution for reliable ground support. Available with plain (EULA) and indented (EULN) strands, it achieves precise pretension using a standard bolting machine - no hydraulic tensioner needed. Its internal thrust bearing eliminates cable torsion for optimal tension. Delivered pre-assembled, EziTen enables fast, simple installation into standard holes.
Features
-
No hydraulic tensioner needed
Achieve precise pretension using a standard bolting machine—no specialised equipment required.
No hydraulic tensioner needed
Achieve precise pretension using a standard bolting machine—no specialised equipment required.
Achieve precise pretension using a standard bolting machine—no specialised equipment required.
-
Torsion-free installation
An internal thrust bearing eliminates cable torsion, ensuring optimal tension performance.
Torsion-free installation
An internal thrust bearing eliminates cable torsion, ensuring optimal tension performance.
An internal thrust bearing eliminates cable torsion, ensuring optimal tension performance.
-
Fast, ready-to-install system
Pre-assembled for quick installation into standard holes with plain or indented strand options.
Fast, ready-to-install system
Pre-assembled for quick installation into standard holes with plain or indented strand options.
Pre-assembled for quick installation into standard holes with plain or indented strand options.
Product specifications
- Cable diameter
- ⌀21.8 mm
- Yield strength
- Minimum: 495 kN / Typical: 525 kN
- Tensile strength
- Minimum: 573 kN / Typical: 595 kN
- Elongation on 600mm Gauge Length
- Minimum: 3.5% / Typical: 5.7%-6.4%
- Mass per metre (cable only)
- 2.4 kg
- Cable diameter
- ⌀21.8 mm
- Yield strength
- Minimum: 495 kN / Typical: 525 kN
- Tensile strength
- Minimum: 573 kN / Typical: 595 kN
- Elongation on 600mm Gauge Length
- Minimum: 3.5% / Typical: 5.7%-6.4%
- Mass per metre (cable only)
- 2.4 kg
- Fittings mass
- 2.4 kg
- Tail length
- Minimum: 145 mm / Typical: 145 to 210 mm
- Product diameter
- Ø72 mm
- Installation dolly
- Ø72 mm
- Shear pin break-out torque
- Range of 160 to 280 Nm
Product specification may vary by region. Please download the data sheet specific to your region. For questions, contact us via the form on our website or the contact details provided in the data sheet. Always confirm key specifications with your local representative. Corresponding certificates and documents can be found here.
Our range of discrete cable bolts
CableLok Barrel
- Cable diameter
- ⌀15.24 mm / ⌀18 mm
- UTS cable
- ⌀15.24 mm: 250 kN / ⌀18 mm: 380 kN
- Expansion shell
- 32, 35, 38, 43, 48, 65
CableLok Bolt
- Cable diameter
- ⌀12.70 mm / ⌀15.24 mm / ⌀18 mm (standard)
- UTS cable
- ⌀12.70 mm: 160 kN / ⌀15.24 mm: 250 kN / ⌀18 mm (standard): 350 kN
- Expansion shell
- 35, 38, 43, 65 (standard)
