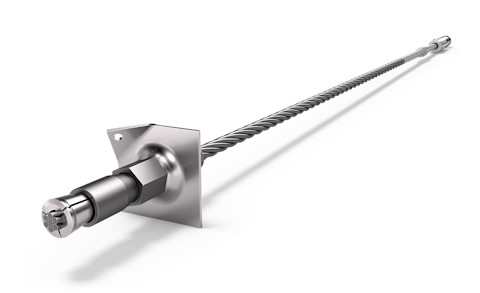

CableLok Bolt
Request a quote
Discrete
CableLok Bolt
- Cable diameter
- ⌀12.70 mm / ⌀15.24 mm / ⌀18 mm (standard)
- UTS cable
- ⌀12.70 mm: 160 kN / ⌀15.24 mm: 250 kN / ⌀18 mm (standard): 350 kN
- Expansion shell
- 35, 38, 43, 65 (standard)
The CableLok Bolt is engineered as a rotationally tensioned anchor, offering exceptional flexibility and high tensile strength through its seven-strand cable design. It is compatible with installation using T-spanners or mechanical bolters, ensuring efficient and reliable deployment.
Features
-
High performance in tensioning
High tensile strength from seven-strand cables, designed as a rotationally tensioned anchor to ensure optimal load transfer.
High performance in tensioning
High tensile strength from seven-strand cables, designed as a rotationally tensioned anchor to ensure optimal load transfer.
High tensile strength from seven-strand cables, designed as a rotationally tensioned anchor to ensure optimal load transfer.
-
Customizable solution for mining and geotechnics
Available as resin or mechanical anchors with customizable lengths and cable options.
Customizable solution for mining and geotechnics
Available as resin or mechanical anchors with customizable lengths and cable options.
Available as resin or mechanical anchors with customizable lengths and cable options.
-
Versatile and flexible
Compatible with various hole sizes and expansion shells, allowing angled installations.
Versatile and flexible
Compatible with various hole sizes and expansion shells, allowing angled installations.
Compatible with various hole sizes and expansion shells, allowing angled installations.
Product specifications
Downloads
- Cable diameter
- ⌀12.70 mm / ⌀15.24 mm / ⌀18 mm (standard)
- UTS cable
- ⌀12.70 mm: 160 kN / ⌀15.24 mm: 250 kN / ⌀18 mm (standard): 350 kN
- Expansion shell
- 35, 38, 43, 65 (standard)
Our range of discrete cable bolts
EziTen Cable Bolt
- Cable diameter
- ⌀21.8 mm
- Yield strength
- Minimum: 495 kN / Typical: 525 kN
- Tensile strength
- Minimum: 573 kN / Typical: 595 kN
CableLok Barrel
- Cable diameter
- ⌀15.24 mm / ⌀18 mm
- UTS cable
- ⌀15.24 mm: 250 kN / ⌀18 mm: 380 kN
- Expansion shell
- 32, 35, 38, 43, 48, 65
