Leopard™ DI610i
Request a quote
Surface down-the-hole drill rigs
Leopard™ DI610i
- Hole diameter
- 115.0 - 203.0 mm (4.5 - 8.0 in.)
- DTH-hammer
- 4, 5 and 6 in.
- Flushing air capacity
- 28.3 m³/min at 24 bar

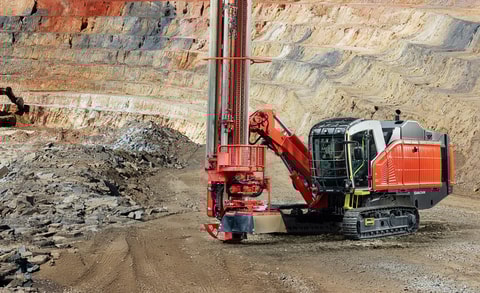

Leopard™ DI610i is a diesel-powered, self-contained, crawler-mounted down-the-hole drill rig built for demanding high-capacity production drilling applications in surface mining. Fast to train, simple to run, and built with proven components, it delivers reliable performance and low operating costs from day one.
Features
-
Optimized total cost of ownership
The Leopard™ DI610i is purpose-built to deliver high productivity with an optimized total cost of ownership. Its streamlined configuration and efficient systems keep operating costs low while ensuring reliable performance shift after shift. Designed as a fit-to-purpose solution for 6″ hammer drilling, it features the HTRH6 rotation head, a field-proven CAT C15 diesel engine, and a GHH compressor optimized for this application. Automated load and temperature control support efficient operation, while standard water injection with an 850-liter capacity ensures consistent drilling conditions.
Optimized total cost of ownership
The Leopard™ DI610i is purpose-built to deliver high productivity with an optimized total cost of ownership. Its streamlined configuration and efficient systems keep operating costs low while ensuring reliable performance shift after shift. Designed as a fit-to-purpose solution for 6″ hammer drilling, it features the HTRH6 rotation head, a field-proven CAT C15 diesel engine, and a GHH compressor optimized for this application. Automated load and temperature control support efficient operation, while standard water injection with an 850-liter capacity ensures consistent drilling conditions.
The Leopard™ DI610i is purpose-built to deliver high productivity with an optimized total cost of ownership. Its streamlined configuration and efficient systems keep operating costs low while ensuring reliable performance shift after shift. Designed as a fit-to-purpose solution for 6″ hammer drilling, it features the HTRH6 rotation head, a field-proven CAT C15 diesel engine, and a GHH compressor optimized for this application. Automated load and temperature control support efficient operation, while standard water injection with an 850-liter capacity ensures consistent drilling conditions.
-
Performance you can rely on
The Leopard™ DI610i builds on the trusted Leopard™ DI650i platform and proven components to deliver stable, reliable performance. Its excellent stability, boom reach, and collaring height enable efficient operation, while the new MicroFeed system brings an unprecedented level of precision to feed control. Easy to service and designed for demanding production environments, it’s a rig you can depend on every day.
Performance you can rely on
The Leopard™ DI610i builds on the trusted Leopard™ DI650i platform and proven components to deliver stable, reliable performance. Its excellent stability, boom reach, and collaring height enable efficient operation, while the new MicroFeed system brings an unprecedented level of precision to feed control. Easy to service and designed for demanding production environments, it’s a rig you can depend on every day.
The Leopard™ DI610i builds on the trusted Leopard™ DI650i platform and proven components to deliver stable, reliable performance. Its excellent stability, boom reach, and collaring height enable efficient operation, while the new MicroFeed system brings an unprecedented level of precision to feed control. Easy to service and designed for demanding production environments, it’s a rig you can depend on every day.
-
Easy to learn. Easy to operate.
Leopard™ DI610i offers a smooth learning path from training to production. Operators begin with the new SimDriller+ program to practice key tasks safely and learn the same assisting automation sequences used in real drilling. Training continues in the spacious iCab, which allows a trainer to guide the operator directly in the cabin. In daily work, the operator assisting automation sequences reduce repetitive tasks and ensure consistent, accurate operation.
Easy to learn. Easy to operate.
Leopard™ DI610i offers a smooth learning path from training to production. Operators begin with the new SimDriller+ program to practice key tasks safely and learn the same assisting automation sequences used in real drilling. Training continues in the spacious iCab, which allows a trainer to guide the operator directly in the cabin. In daily work, the operator assisting automation sequences reduce repetitive tasks and ensure consistent, accurate operation.
Leopard™ DI610i offers a smooth learning path from training to production. Operators begin with the new SimDriller+ program to practice key tasks safely and learn the same assisting automation sequences used in real drilling. Training continues in the spacious iCab, which allows a trainer to guide the operator directly in the cabin. In daily work, the operator assisting automation sequences reduce repetitive tasks and ensure consistent, accurate operation.
Product specifications
- Hole diameter
- 115.0 - 203.0 mm (4.5 - 8.0 in.)
- DTH-hammer
- 4, 5 and 6 in.
- Flushing air capacity
- 28.3 m³/min at 24 bar
- Drill rod/tube diameter
- 89, 102, 114 and 127 (3.5, 4, 4.5 and 5 in.)
- Rotary head
- HTRH6
- Hole diameter
- 115.0 - 203.0 mm (4.5 - 8.0 in.)
- DTH-hammer
- 4, 5 and 6 in.
- Flushing air capacity
- 28.3 m³/min at 24 bar
- Drill rod/tube diameter
- 89, 102, 114 and 127 (3.5, 4, 4.5 and 5 in.)
- Rotary head
- HTRH6
- Engine type
- Caterpillar C15 (Tier 3)
- Engine output power
- 403 kW / 1800 rpm
- Cabin
- iCab
- Production capacity
- 2,1 Mt/a, one shift
- Transport length
- 12 m
- Transport width
- 3.0 m
- Transport height
- 4.2 m
- Weight
- 27,100 kg (59,745 lb)
Learn more about Leopard™ DI610i features
Spacious iCab with trainer seat
Sandvik’s iCab is designed for clarity, comfort, and control. It offers a spacious working environment with a trainer seat and room for on-the-job guidance from behind the operator’s seat.
SimDriller+ training program
The SimDriller+ training program builds operators’ skills to use rig features effectively through realistic, hands-on learning. The SimDriller simulator mirrors real drill rig behavior using the same controls as Leopard™ DI610i, while a ready-made library of progressive training scenarios supports step-by-step development from basic operation to advanced practices.
Operator-assisting automation sequences
Ensure consistent drilling performance and reduce drilling and pipe-handling errors with the help of the Leopard™ DI610i’s simple operator-assisting automation sequences, including auto collaring, drilling monitoring automation, hole-finishing control, and thread opening assist. In daily work, the assisting sequences help reduce repetitive tasks and ensure consistent, accurate operation.
Serviceability and smart maintenance tools
The carrier layout enables convenient, ground-level service access, while remote monitoring services (RMS) support customers’ own maintenance operations. Powerful digital tools help manage costs, ensure timely maintenance, and simplify fault diagnostics, supported by features such as consumable logging, service light indicators, and delay codes.
