MB451
Request a quote
Bolter miners
MB451
- Cutting height
- 1,800 - 3,600 mm
- Cutting width
- 4,700 - 4,900 mm
- Cutter motor power
- 315 kW

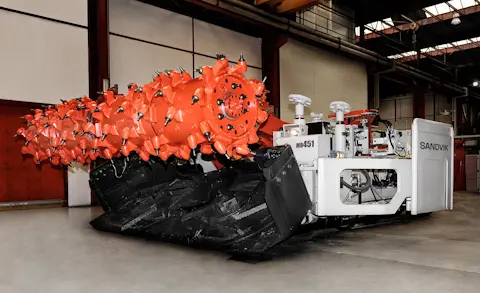

Sandvik MB451 bolter miner is designed specifically for roadway development in seams from 1.8 to 3.6 meters high (6 to 12 feet). MSHA-approved and flameproof, it is engineered for mid-seam, long-wall developments with medium coal hardness.
Features
-
Higher advance rates
Innovative slide mechanisms and simultaneous cutting and bolting lead to higher advance rates.
Higher advance rates
Innovative slide mechanisms and simultaneous cutting and bolting lead to higher advance rates.
Innovative slide mechanisms and simultaneous cutting and bolting lead to higher advance rates.
-
Automated roof support
Automated Temporary Roof Support (ATRS) increases machine stability and operator safety.
Automated roof support
Automated Temporary Roof Support (ATRS) increases machine stability and operator safety.
Automated Temporary Roof Support (ATRS) increases machine stability and operator safety.
-
No floor damage
The bolter miner provides a stationary main frame during the cutting operation, eliminating the risk of floor damage.
No floor damage
The bolter miner provides a stationary main frame during the cutting operation, eliminating the risk of floor damage.
The bolter miner provides a stationary main frame during the cutting operation, eliminating the risk of floor damage.
Learn more about MB451 features
Effectively designed for tough mining conditions
With special design features for cutting, loading and ground support, MB451 is a wide-head continuous miner that provides superior advance rates under tough mining conditions and restricted spaces.
Product specifications
MB451 operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Cutting height
- 1,800 - 3,600 mm
- Cutting width
- 4,700 - 4,900 mm
- Cutter motor power
- 315 kW
- Ground clearance
- 200 mm
- Ground pressure
- 0.2 MPa
- Cutting height
- 1,800 - 3,600 mm
- Cutting width
- 4,700 - 4,900 mm
- Cutter motor power
- 315 kW
- Ground clearance
- 200 mm
- Ground pressure
- 0.2 MPa
- Loading capacity
- 27 t/min
- Max. tram speed
- 55 m/min
- RPM of cutter drum
- 64 rpm
