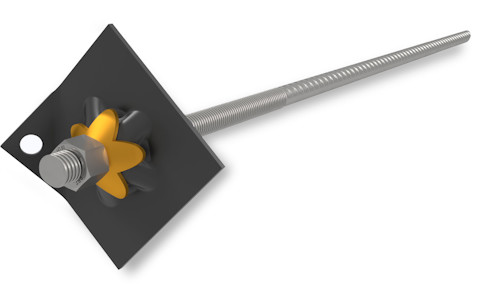

Resin Roof Bolt
- Bar diameter
- ⌀16 mm / ⌀18 mm / ⌀20 mm / ⌀22 mm / ⌀25 mm
- Yield strength
- ⌀16 / 18 / 20 / 25 mm: 500 MPa / ⌀22 mm: 600 MPa HS
- Ultimate tensile strength
- 700 MPa
Resin roof bolts, used with Fasloc® resin, deliver exceptional roof support in underground mining. The resin ensures strong anchorage, while the bolt provides essential tension for stability.
Features
-
Optimized for resin applications
Designed for use with resins, the hot-rolled deformed bar features a specialized rib pattern that enhances mixing and bonding during installation, ensuring secure anchorage.
Optimized for resin applications
Designed for use with resins, the hot-rolled deformed bar features a specialized rib pattern that enhances mixing and bonding during installation, ensuring secure anchorage.
Designed for use with resins, the hot-rolled deformed bar features a specialized rib pattern that enhances mixing and bonding during installation, ensuring secure anchorage.
-
Highly adaptable
Available with couplers for extended lengths, forged head replacement options, and choice of spin-to-stall or reverse spin configurations
Highly adaptable
Available with couplers for extended lengths, forged head replacement options, and choice of spin-to-stall or reverse spin configurations
Available with couplers for extended lengths, forged head replacement options, and choice of spin-to-stall or reverse spin configurations
-
Enhanced load transfer
Optimized rib pattern enhances load transfer with high transverse ribs and low-profile longitudinal ribs
Enhanced load transfer
Optimized rib pattern enhances load transfer with high transverse ribs and low-profile longitudinal ribs
Optimized rib pattern enhances load transfer with high transverse ribs and low-profile longitudinal ribs
Downloads
- Bar diameter
- ⌀16 mm / ⌀18 mm / ⌀20 mm / ⌀22 mm / ⌀25 mm
- Yield strength
- ⌀16 / 18 / 20 / 25 mm: 500 MPa / ⌀22 mm: 600 MPa HS 1)
- Ultimate tensile strength
- 700 MPa 2)
Our range of mining bolts
INSTaL and Resin bolting
- Bar diameter
- ⌀16 mm / ⌀18 mm / ⌀20 mm
- Yield strength
- 500 MPa
- Ulimate load
- ⌀16 mm: 140 kN / ⌀18 mm: 178 kN / ⌀20 mm: 220 MPa
Mechanical Anchor Bolt
- Bar diameter
- ⌀14.5 mm / ⌀16 mm
- Yield strength
- ⌀14.5 mm: 450 MPa / ⌀16 mm: 500 MPa
- Ultimate tensile strength
- ⌀14.5 mm: 590 MPa / ⌀16 mm: 700 MPa
INSTa-RB
- Bar diameter
- ⌀14.5 mm / ⌀16 mm
- Yield strength
- ⌀14.5 mm: 450 MPa / ⌀16 mm: 500 MPa
- Ultimate tensile strength
- ⌀14.5 mm: 590 MPa / ⌀16 mm: 700 MPa
Paddle Bolt
- Bar diameter
- ⌀18 mm / ⌀20 mm / ⌀25 mm
- Yield strength
- 500 MPa
- Yield load
- ⌀18 mm: 127 kN / ⌀20 mm: 157 kN / ⌀25 mm: 245 kN
