High strength DSI Combination Bolt
Request a quote
Combi rebar bolts

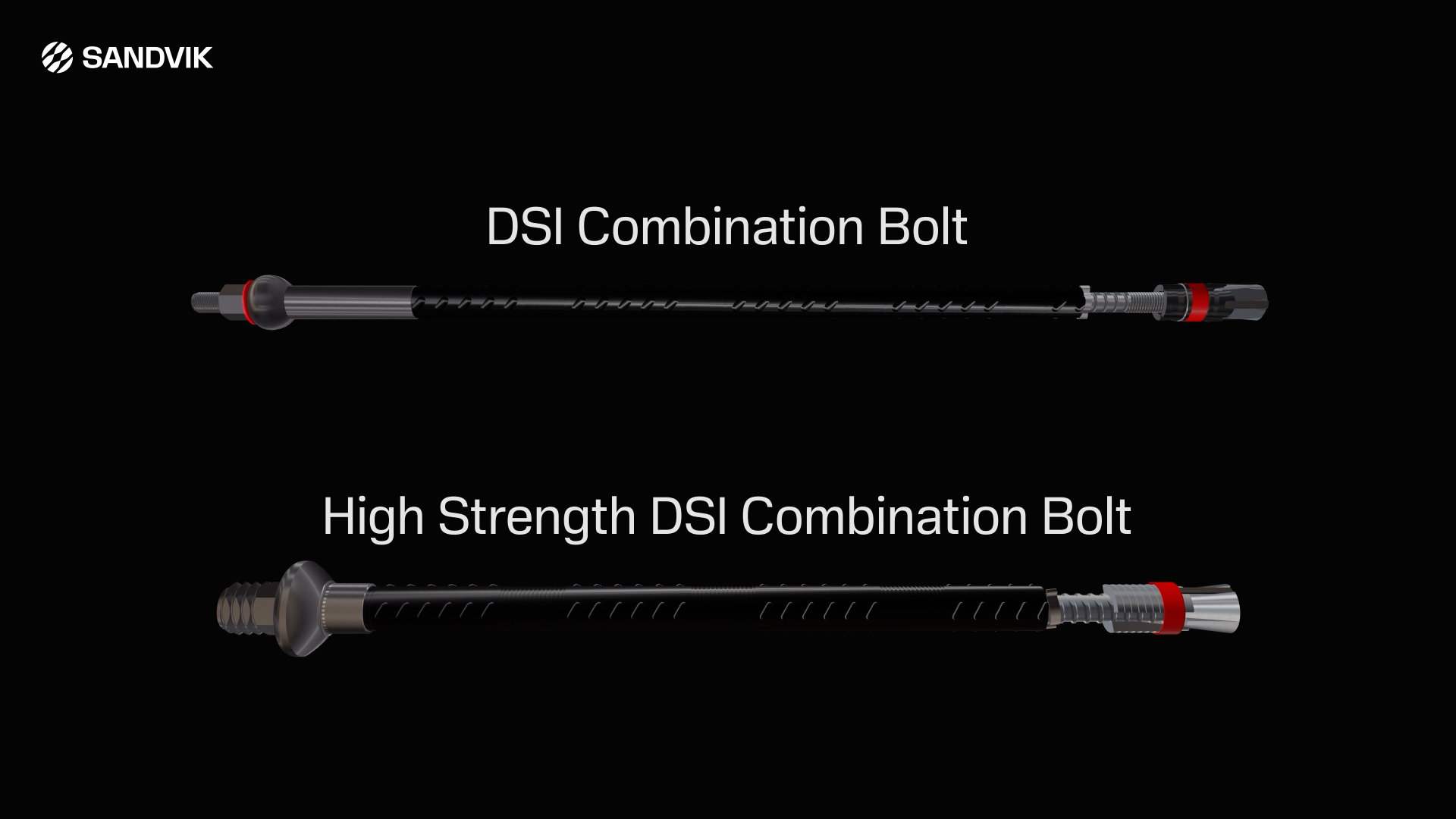

High strength DSI Combination Bolt
- Bar diameter
- 26.5 mm
- Standard length
- up to 11.8 m
- Yield strength
- 950 MPa - 524 kN
The High strength DSI Combination Bolt combines immediate mechanical anchorage with the long-term security of a fully grouted system. Its two-step installation enables fast support, flexible grouting, and durable performance with full-length corrosion protection.
Features
-
Immediate mechanical anchorage
The High strength DSI Combination Bolt is equipped with an expansion shell that enables preloading and instant support, allowing tunnel or mine headings to advance without immediate grouting.
Immediate mechanical anchorage
The High strength DSI Combination Bolt is equipped with an expansion shell that enables preloading and instant support, allowing tunnel or mine headings to advance without immediate grouting.
The High strength DSI Combination Bolt is equipped with an expansion shell that enables preloading and instant support, allowing tunnel or mine headings to advance without immediate grouting.
-
Flexible post-grouting system
A dedicated grout bell allows grouting to be completed independently after installation. The bolt is compatible with both cementitious grouts and resin, providing flexibility for different working cycles and site conditions.
Flexible post-grouting system
A dedicated grout bell allows grouting to be completed independently after installation. The bolt is compatible with both cementitious grouts and resin, providing flexibility for different working cycles and site conditions.
A dedicated grout bell allows grouting to be completed independently after installation. The bolt is compatible with both cementitious grouts and resin, providing flexibility for different working cycles and site conditions.
-
Long-term durability and corrosion protection
A full-length corrugated polyethylene sheath ensures permanent corrosion protection and effective load transfer, supporting long service life and safer operation with minimal manual interaction during installation.
Long-term durability and corrosion protection
A full-length corrugated polyethylene sheath ensures permanent corrosion protection and effective load transfer, supporting long service life and safer operation with minimal manual interaction during installation.
A full-length corrugated polyethylene sheath ensures permanent corrosion protection and effective load transfer, supporting long service life and safer operation with minimal manual interaction during installation.
Product specifications
- Bar diameter
- 26.5 mm *
- Standard length
- up to 11.8 m
- Yield strength
- 950 MPa - 524 kN
- Tensile strength
- 1050 MPa - 579 kN
- Calculated shear strength
- 693 MPa - 382 kN
- Bar diameter
- 26.5 mm *
- Standard length
- up to 11.8 m
- Yield strength
- 950 MPa - 524 kN
- Tensile strength
- 1050 MPa - 579 kN
- Calculated shear strength
- 693 MPa - 382 kN
- Mass per metre
- 4.76 kg/m
- Major bar diameter
- 30.5 mm
- Cross sectional area
- 552 mm²
-
* core diameter
