Forged Head Rebar Bolt
Request a quote
Forged heads
Forged Head Rebar Bolt
- Bar diameter
- ⌀20 mm / ⌀22 mm / ⌀25 mm
- Standard length
- 1 - 3 m
- Yield strength
- Ø 20 mm: 26,400 lbs (117 kN) / Ø 22 mm: 36,100 lbs (161 kN)
The Forged Head Rebar is engineered to reinforce, stabilize, and strengthen rock masses in both mining and civil engineering environments. Its ribbed surface ensures a superior bond with resin or cement grout, providing exceptional anchorage and long-term stability.
Features
-
Superior bonding
Ribbed surface design ensures a strong and reliable connection with resin or cement grout, providing enhanced anchorage and long-term stability.
Superior bonding
Ribbed surface design ensures a strong and reliable connection with resin or cement grout, providing enhanced anchorage and long-term stability.
Ribbed surface design ensures a strong and reliable connection with resin or cement grout, providing enhanced anchorage and long-term stability.
-
Durable construction
Made from Grade 400W or Grade 60W steel with a threaded section and shear pin nut, offering high strength and corrosion resistance when fully grouted.
Durable construction
Made from Grade 400W or Grade 60W steel with a threaded section and shear pin nut, offering high strength and corrosion resistance when fully grouted.
Made from Grade 400W or Grade 60W steel with a threaded section and shear pin nut, offering high strength and corrosion resistance when fully grouted.
-
Efficient installation

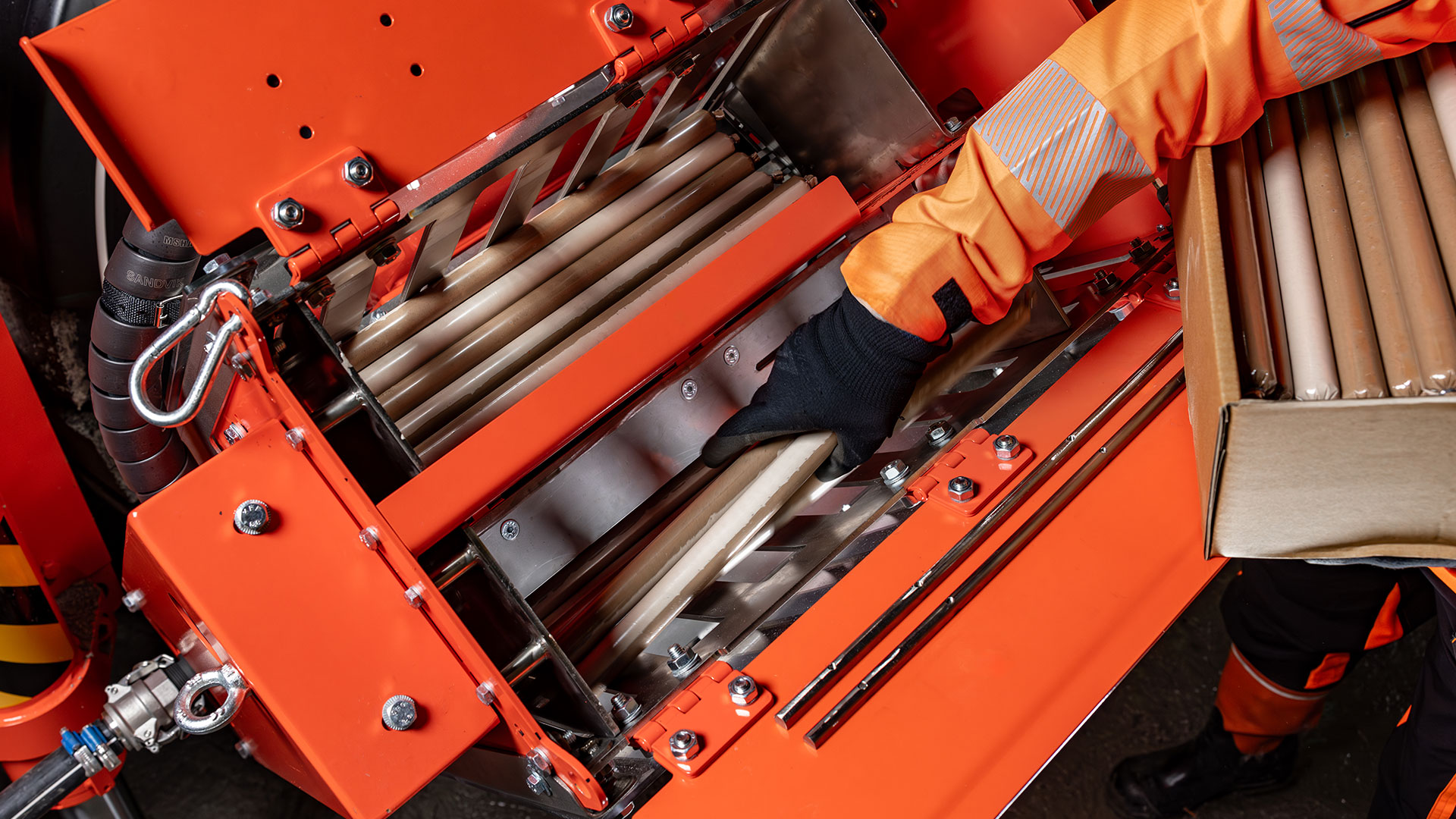

Bevel-cut toe end (45°) effectively shreds resin cartridges to activate the chemical reaction, ensuring quick and secure bolt installation.
Efficient installation
Bevel-cut toe end (45°) effectively shreds resin cartridges to activate the chemical reaction, ensuring quick and secure bolt installation.
Bevel-cut toe end (45°) effectively shreds resin cartridges to activate the chemical reaction, ensuring quick and secure bolt installation.
Product specifications
- Bar diameter
- ⌀20 mm / ⌀22 mm / ⌀25 mm
- Standard length
- 1 - 3 m
- Yield strength
- Ø 20 mm: 26,400 lbs (117 kN) / Ø 22 mm: 36,100 lbs (161 kN)
- Tensile strength
- Ø 20 mm: 39,600 lbs (176 kN) / Ø 22 mm: 54,100 lbs (241 kN)
- Elongation in 8” (200 mm)
- ⌀20 mm: 9% minimum / ⌀22 mm: 9% minimum
