Back to Hollow core bolts

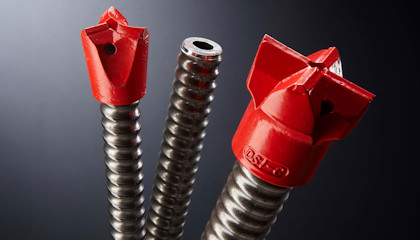

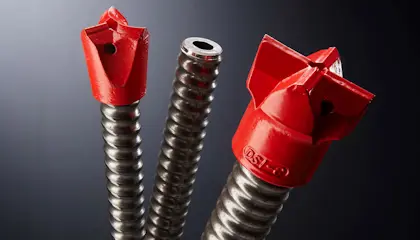

DSI Hollow Bar System

The DSI Hollow Bar System is a versatile, self-drilling solution for ground control in both underground and civil engineering applications. It combines drilling, flushing, grouting, and anchoring in one efficient system, making it ideal for challenging ground conditions.

System components (basic elements)

Hollow bar

- Used as drill rod during installation
- Suitable for simultaneous or subsequent grouting
- Tension or compression member

Coupling

- Continuous inside thread with middle stop or center bridge
- Controlled drilling energy transmission
- Full load-bearing capacity

Drill bit

- One drill bit per installed unit
- Different diameters and designs
- Hardened and carbide insert versions
- Optimized for various ground conditions

DSI Hollow Bar System (Civil engineering edition)

Discover the versatility and strength of the DSI Hollow Bar System – an all-in-one, self-drilling solution for ground control in both underground and civil engineering applications.
Download the catalog to explore system components, installation methods, and performance benefits in challenging ground conditions.

DSI Hollow Bar System catalog EN(PDF document, 11.9 MB)
DSI Hollow Bar System catalog DE(PDF document, 11.9 MB)

Product Certifications and Declarations

Download all relevant product certifications and declarations, including CE Certificate, Declaration of Performance (DoP) and ETA.

Download here

Safe, efficient bolting – Seamlessly integrated with Sandvik underground drill rigs

DD422i Development drill rig
New pumpable resin package for Dual Controls

The new pumpable resin package for Dual Controls enhances bolt installation, giving operators full control in challenging ground. It’s fully compatible with Versabolt™ for dynamic conditions, as well as DSI Hollow Bar System / Self-Drilling Bolts, and Resin Roof Bolts.

DS412i Rock support drill rig
New pumpable resin system for DS412i and DS412iE bolters

Safety, quality and productivity were the pillars in the development of this new product offering, ensuring optimal performance. Featuring Mineral Bolt pumpable resin, the set-up supports self-drilling bolts (SDB) and hollow bar bolts (HBB), as available from the DSI Hollow Bar System. The option is also available for Sandvik DS512i machines, as a custom order.

Mineral Bolt technology for demanding ground conditions

The Mineral Bolt resin is engineered for demanding ground conditions. Compatible with Sandvik Dual Controls’ new pumpable resin system and manual injection, it cures fast and performs consistently—making bolting safer and faster underground.
