TH550B
Request a quote
Battery-electric trucks
TH550B
- Dimensions (LxWxH)
- 11,000 x 3,350 x 2,900 mm
- Capacity
- 50,000 kg
- Box range
- 20 - 31 m³

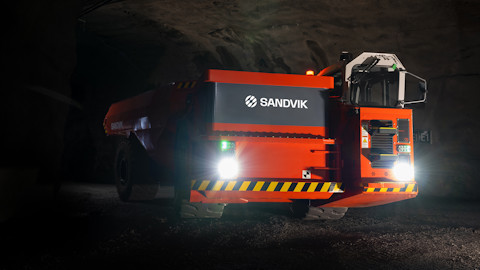

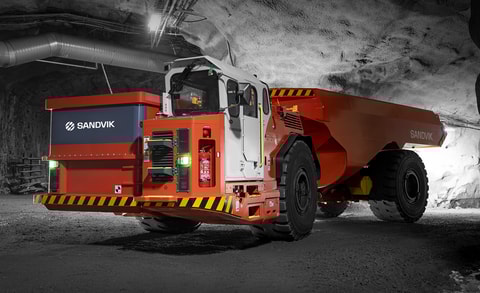

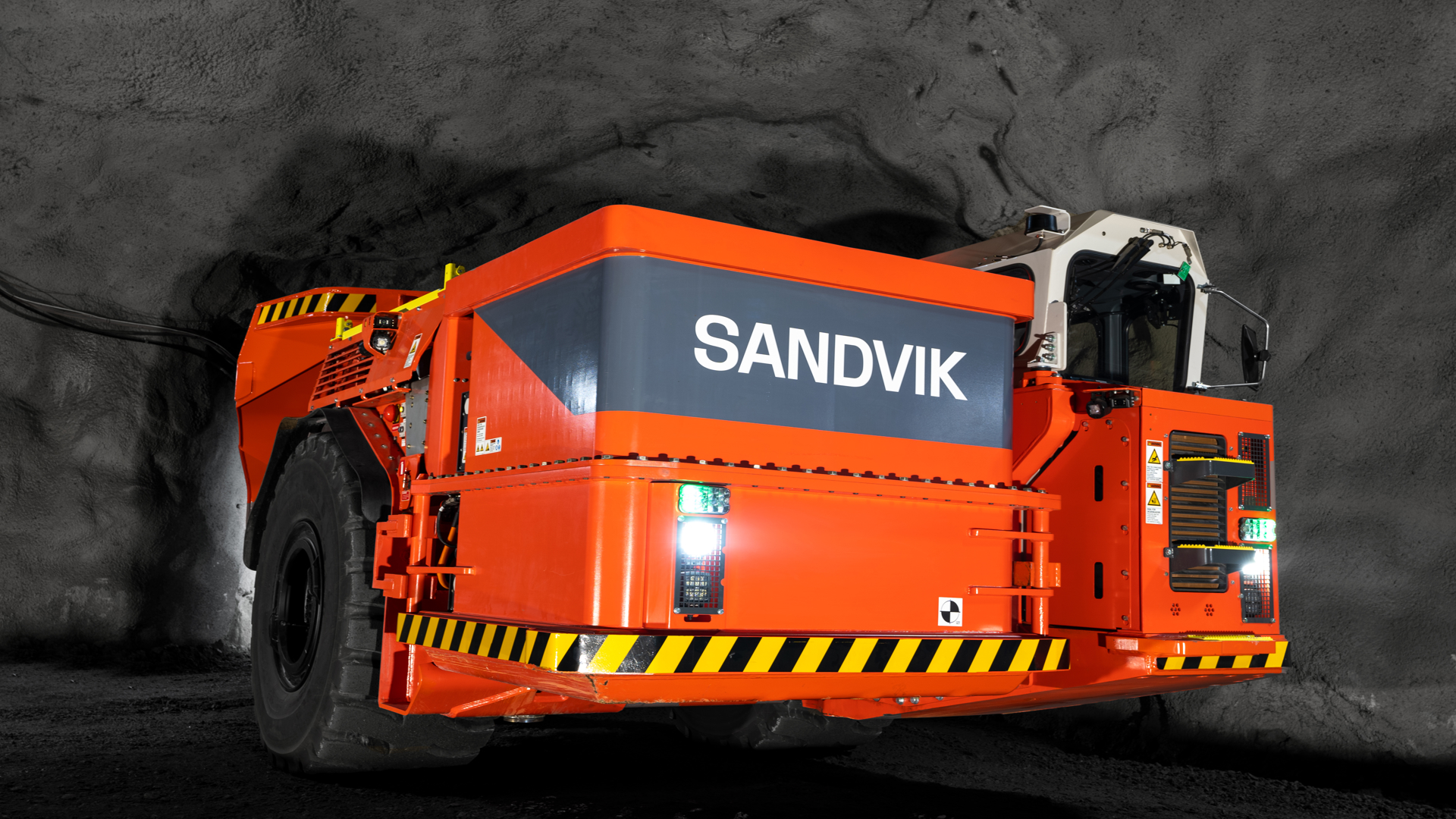

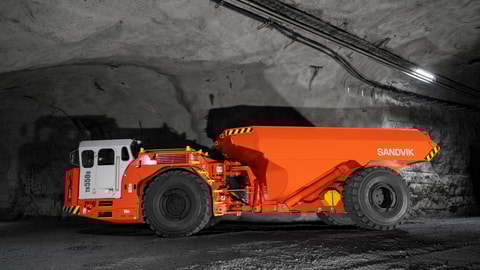

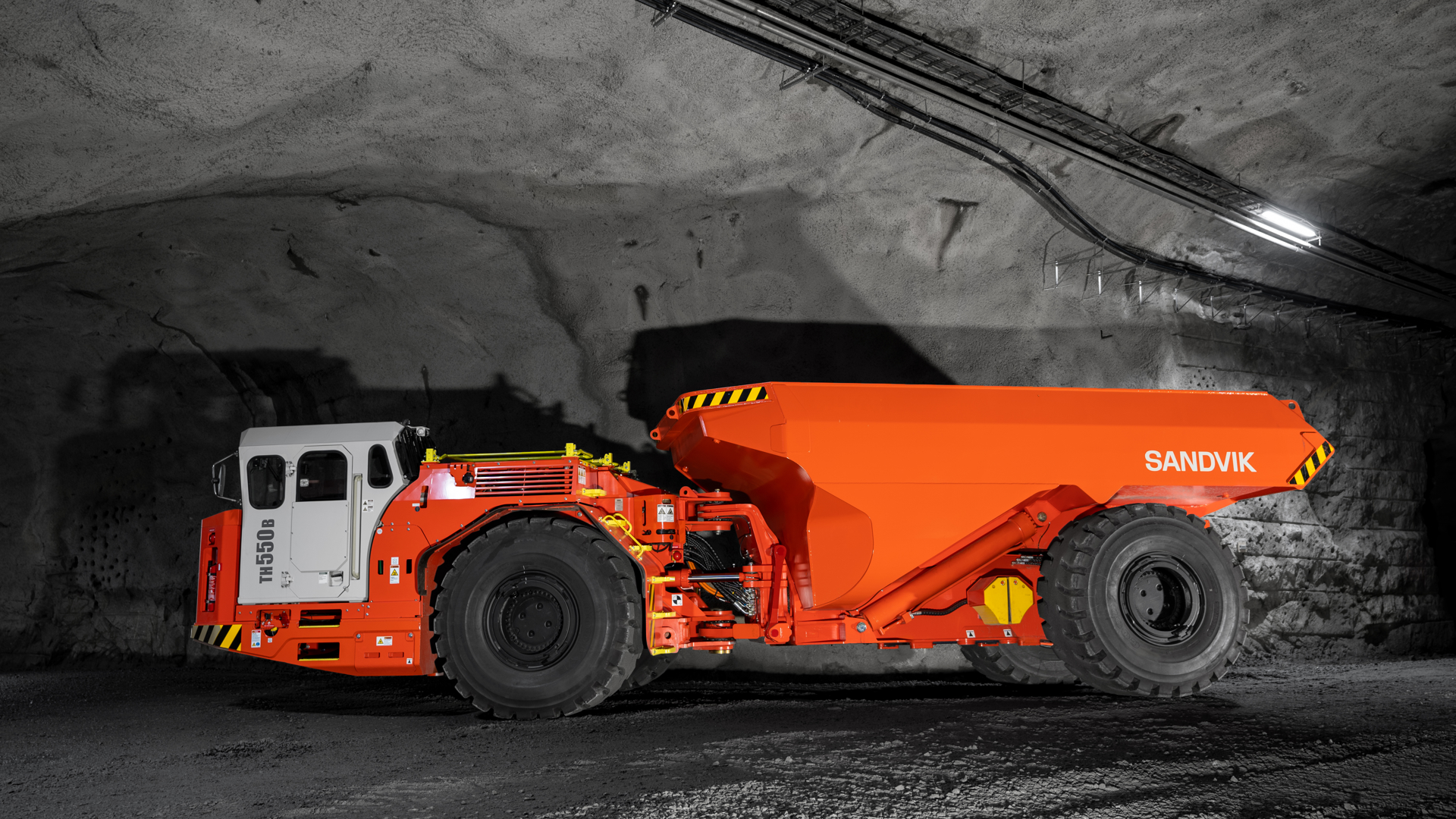

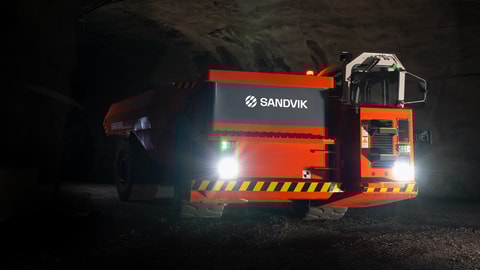

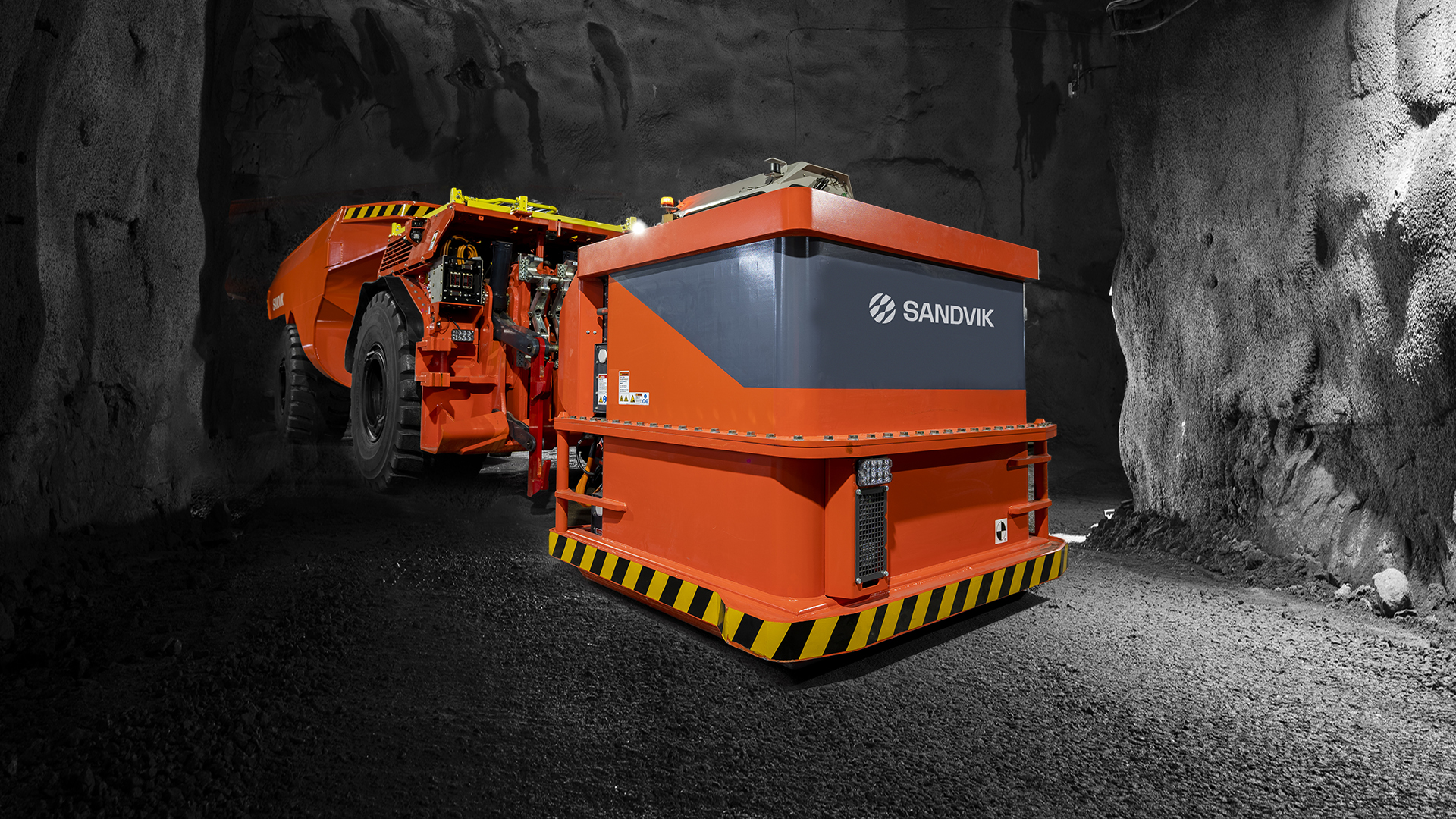

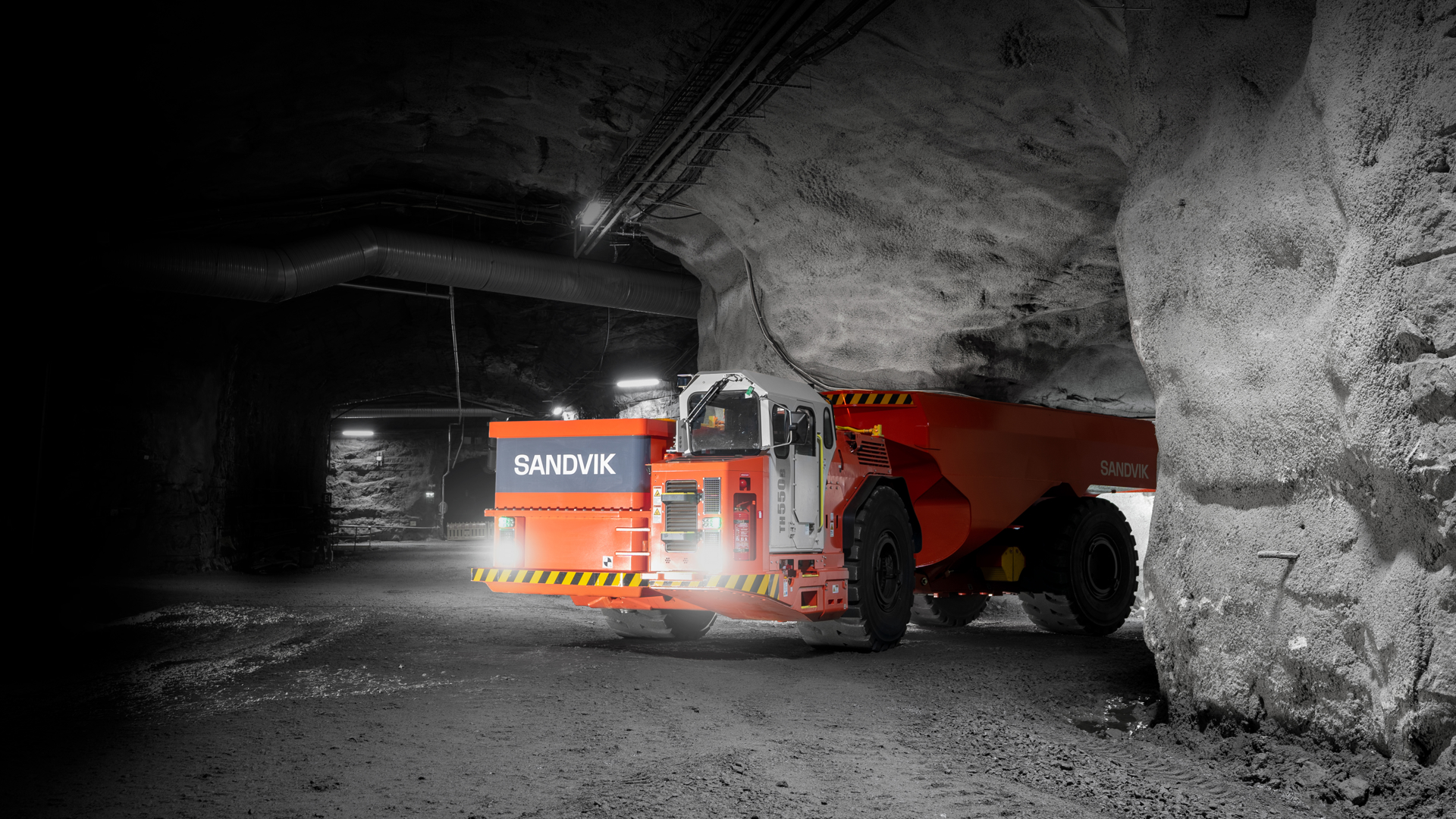

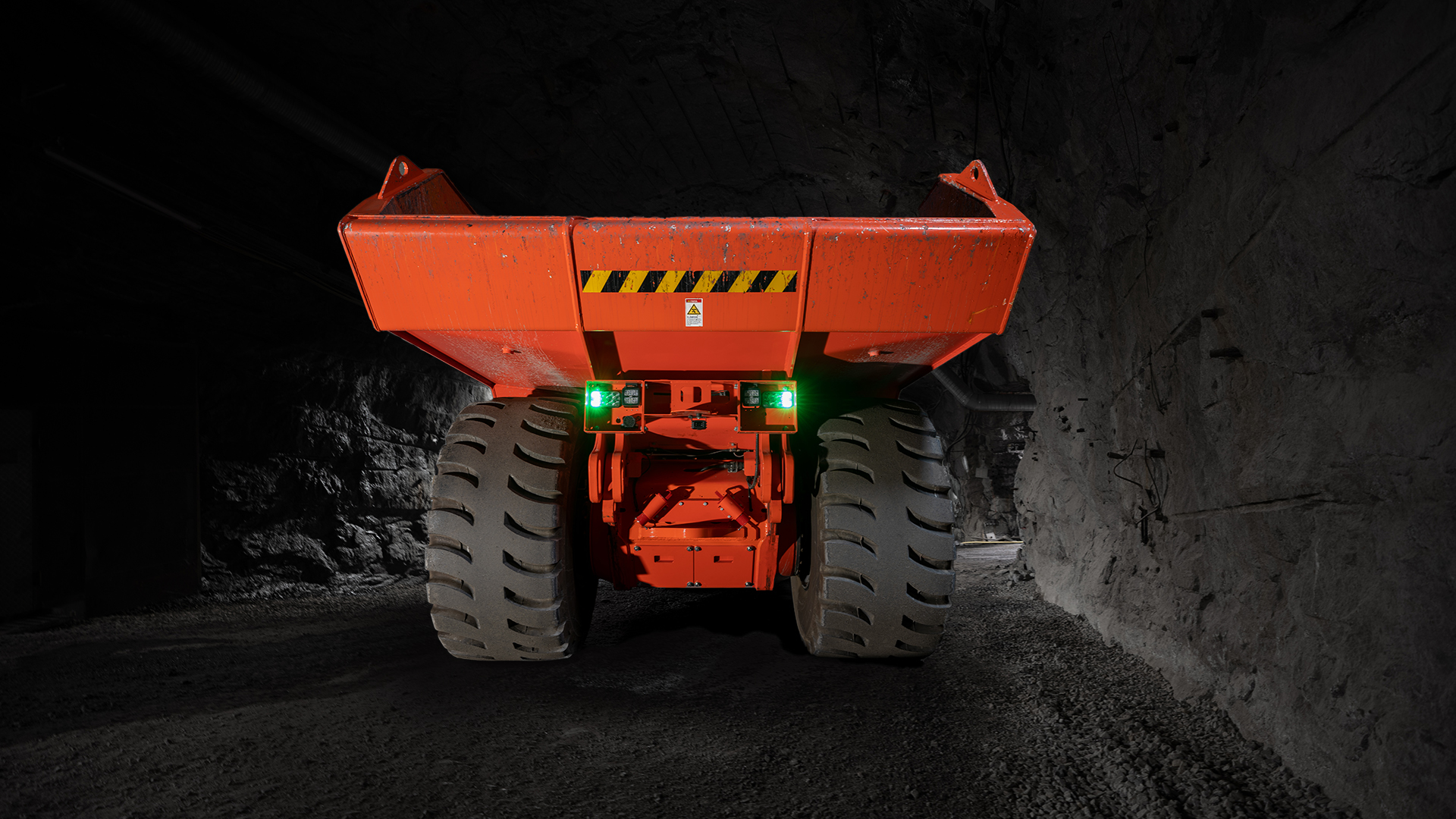

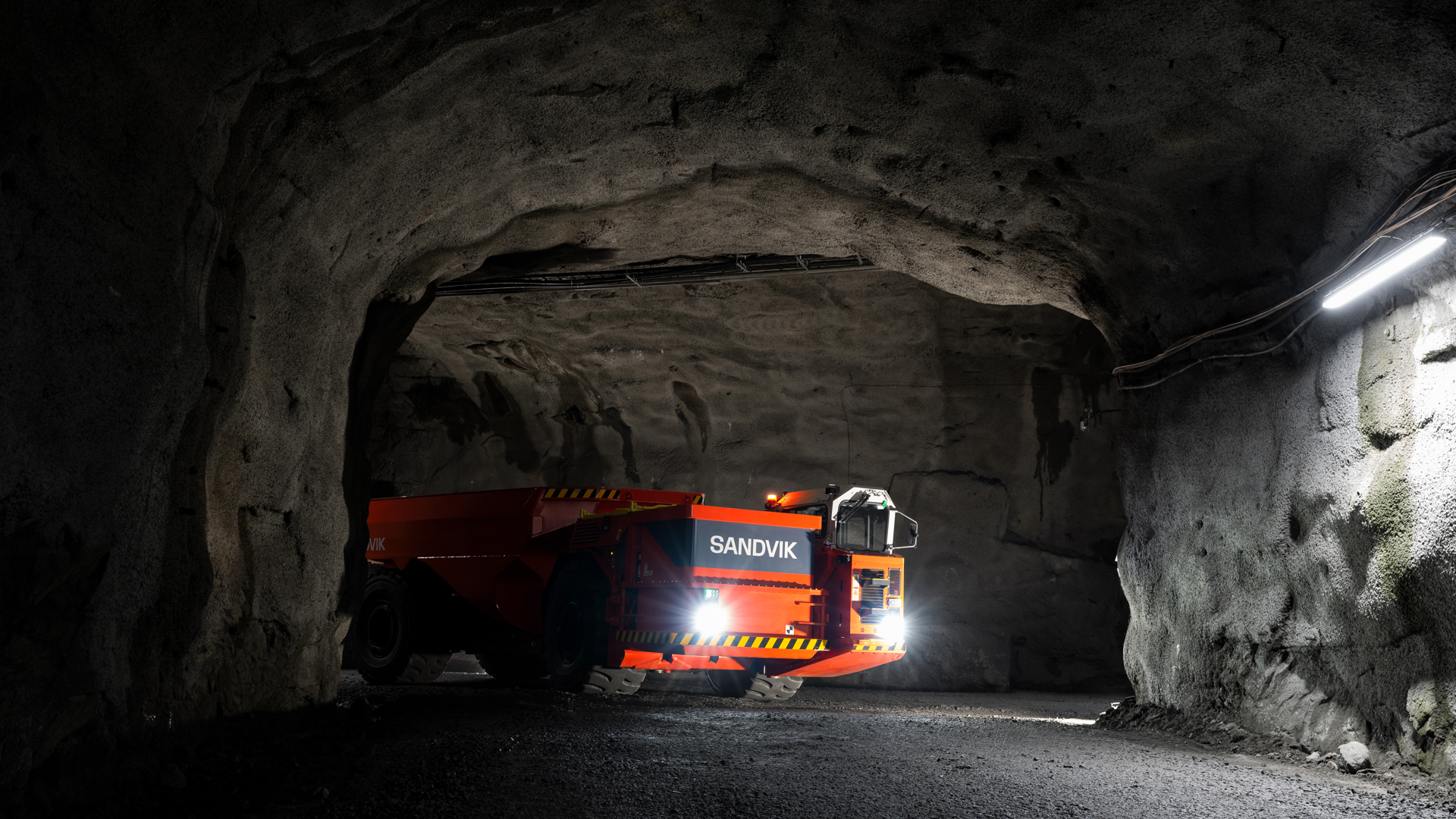

Sandvik TH550B is a battery-powered underground truck with a 50-tonne capacity. The 3rd generation Battery Electric Vehicle (BEV) is designed around the Artisan® battery pack with a safe and proven lithium-iron-phosphate chemistry and electric driveline.
Features
-

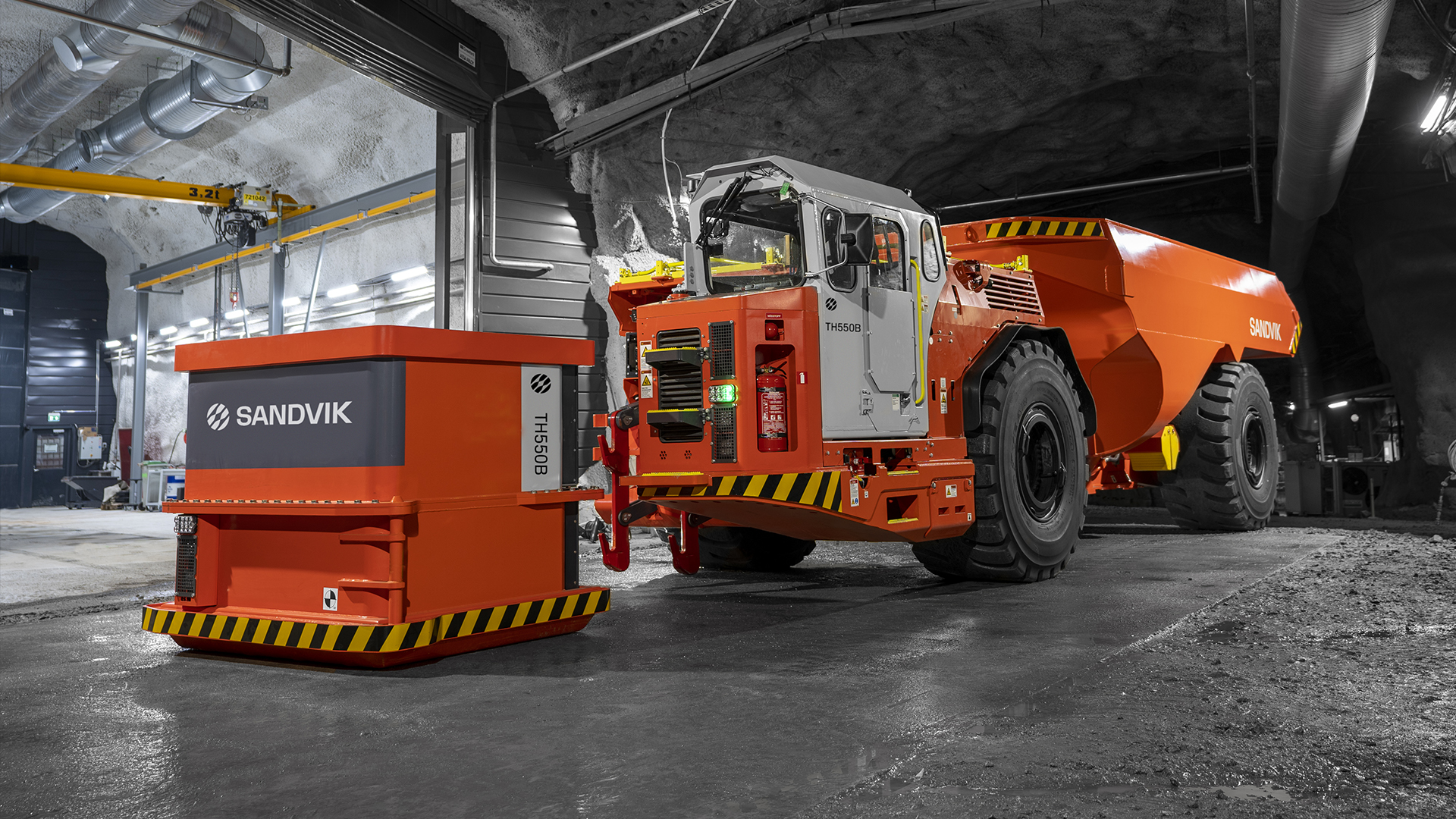

Self-swapping system
Feature Body: Sandvik TH550B features AutoSwap self-swapping systems and AutoConnect, making it the fastest BEV pit stop on the market. Operators can control the procedure without leaving the cabin
Self-swapping system
Feature Body: Sandvik TH550B features AutoSwap self-swapping systems and AutoConnect, making it the fastest BEV pit stop on the market. Operators can control the procedure without leaving the cabin
Feature Body: Sandvik TH550B features AutoSwap self-swapping systems and AutoConnect, making it the fastest BEV pit stop on the market. Operators can control the procedure without leaving the cabin
-
Zero diesel emissions
TH550B by Sandvik uses the safe and proven lithium-iron-phosphate chemistry (LiFePO4 or LFP), producing no underground exhaust emissions and significantly less heat. Mines see fewer CO2 emissions meaning fewer ventilation requirements.
Zero diesel emissions
TH550B by Sandvik uses the safe and proven lithium-iron-phosphate chemistry (LiFePO4 or LFP), producing no underground exhaust emissions and significantly less heat. Mines see fewer CO2 emissions meaning fewer ventilation requirements.
TH550B by Sandvik uses the safe and proven lithium-iron-phosphate chemistry (LiFePO4 or LFP), producing no underground exhaust emissions and significantly less heat. Mines see fewer CO2 emissions meaning fewer ventilation requirements.
-
High-performance driveline
TH550B offers high speeds due to the high-performance driveline - there's no transmission or need to change gears. Instant torque provides quick acceleration and regenerative braking recharges the battery while driving downhill.
High-performance driveline
TH550B offers high speeds due to the high-performance driveline - there's no transmission or need to change gears. Instant torque provides quick acceleration and regenerative braking recharges the battery while driving downhill.
TH550B offers high speeds due to the high-performance driveline - there's no transmission or need to change gears. Instant torque provides quick acceleration and regenerative braking recharges the battery while driving downhill.
Product specifications
Downloads
TH550B operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Dimensions (LxWxH)
- 11,000 x 3,350 x 2,900 mm
- Capacity
- 50,000 kg
- Box range
- 20 - 31 m³
- Operating weight *
- 50,100 kg
- Maximum driving speed (Level / loaded)
- 37.0 km/h
- Dimensions (LxWxH)
- 11,000 x 3,350 x 2,900 mm
- Capacity
- 50,000 kg
- Box range
- 20 - 31 m³
- Operating weight *
- 50,100 kg
- Maximum driving speed (Level / loaded)
- 37.0 km/h
- Maximum driving speed (1:7 ramp / loaded)
- 13.5 km/h
- Battery cell chemistry
- LiFePO4 (LFP)
- Battery nominal capacity
- 354 kWh
- Continuous power output
- 720 kW
*Unit weight is dependent on the selected options

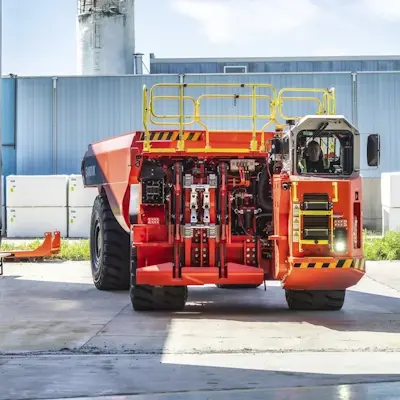

Going all in
Complete, self-owned ecosystem of service and parts
Battery technology
Charging station
Sandvik BEV loader and truck charging stations allow battery changes in about three minutes with AutoSwap and AutoConnect.
Battery technology
Battery As A Service
Sandvik Battery As A Service (BAAS) helps you make the shift to battery power. Sandvik retains ownership of the battery packs, chargers, spare parts and any needed maintenance. Each program is tailored to the needs of your fleet, mine design and cycle duties.
