LH518iB
Request a quote
Battery-electric loaders
Toro® LH518iB
- Dimensions (LxWxH)
- 12,000 x 3,100 x 2,300 mm
- Capacity
- 18,000 kg
- Bucket range
- 7.0 - 9.1 m³

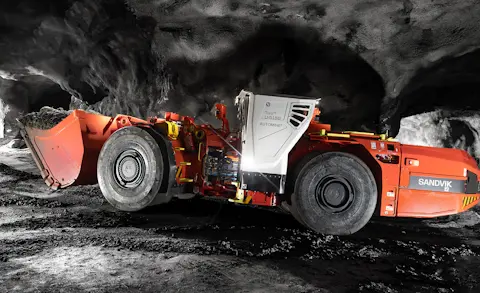

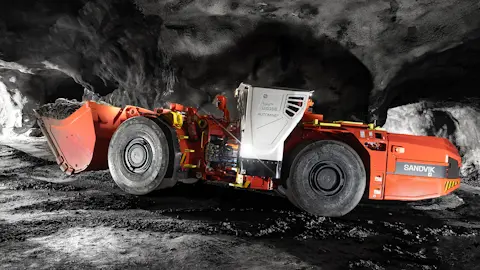

Toro® LH518iB loader is a next generation BEV by Sandvik. Automation capable, the loader incorporates a variety of cutting-edge features that increase production and improve safety in underground mining.
Features
-
High-power electric drive line
Toro® LH518iB battery loader is unrestrained by mine ventilation limitations and can use the most powerful electric motors available. The loader delivers 540 kW of electric drivetrain power for improved acceleration, fast ramp speeds and efficient bucket filling with 6000 Nm total torque output.
High-power electric drive line
Toro® LH518iB battery loader is unrestrained by mine ventilation limitations and can use the most powerful electric motors available. The loader delivers 540 kW of electric drivetrain power for improved acceleration, fast ramp speeds and efficient bucket filling with 6000 Nm total torque output.
Toro® LH518iB battery loader is unrestrained by mine ventilation limitations and can use the most powerful electric motors available. The loader delivers 540 kW of electric drivetrain power for improved acceleration, fast ramp speeds and efficient bucket filling with 6000 Nm total torque output.
-
Patented AutoSwap and AutoConnect systems
The loader doesn’t require additional large-scale infrastructure for swapping the battery at a mine site. This is thanks to the AutoSwap, the patented self-swapping system for the battery by Sandvik. Due to the AutoConnect functionality, the operator can stay in the cabin during the swapping process.
Patented AutoSwap and AutoConnect systems
The loader doesn’t require additional large-scale infrastructure for swapping the battery at a mine site. This is thanks to the AutoSwap, the patented self-swapping system for the battery by Sandvik. Due to the AutoConnect functionality, the operator can stay in the cabin during the swapping process.
The loader doesn’t require additional large-scale infrastructure for swapping the battery at a mine site. This is thanks to the AutoSwap, the patented self-swapping system for the battery by Sandvik. Due to the AutoConnect functionality, the operator can stay in the cabin during the swapping process.
-
Zero underground exhaust emissions
The proven lithium-iron phosphate battery chemistry ensures zero underground exhaust emissions and minimal heat. It supports sustainability goals by reducing CO2 emissions and lowering ventilation needs.
Zero underground exhaust emissions
The proven lithium-iron phosphate battery chemistry ensures zero underground exhaust emissions and minimal heat. It supports sustainability goals by reducing CO2 emissions and lowering ventilation needs.
The proven lithium-iron phosphate battery chemistry ensures zero underground exhaust emissions and minimal heat. It supports sustainability goals by reducing CO2 emissions and lowering ventilation needs.
Product specifications
Downloads
LH518iB operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Dimensions (LxWxH)
- 12,000 x 3,100 x 2,300 mm
- Capacity
- 18,000 kg
- Bucket range
- 7.0 - 9.1 m³
- Break out force, lift
- 30,600 kg
- Break out force, tilt
- 27,700 kg
- Dimensions (LxWxH)
- 12,000 x 3,100 x 2,300 mm
- Capacity
- 18,000 kg
- Bucket range
- 7.0 - 9.1 m³
- Break out force, lift
- 30,600 kg
- Break out force, tilt
- 27,700 kg
- Operating weight *
- 54,800 kg
- Maximum driving speed (Level / loaded)
- 28.4 km/h
- Battery cell chemistry
- LiFePO4 (LFP)
- Battery nominal capacity
- 482 kWh
- Traction motor count
- 3
- Continuous power output
- 540 kW
- Aux motors (rated power)
- 100 kW each
*Unit weight is dependent on the selected options
-
Toro® LH518iB technical specification
-
Batteries for the underground loaders and trucks
Watch Toro® LH518iB in action
Going all in
Complete, self-owned ecosystem of service and parts
Battery technology
Charging station
Sandvik BEV loader and truck charging stations allow battery changes in about three minutes with AutoSwap and AutoConnect.
Battery technology
Battery As A Service
Sandvik Battery As A Service (BAAS) helps you make the shift to battery power. Sandvik retains ownership of the battery packs, chargers, spare parts and any needed maintenance. Each program is tailored to the needs of your fleet, mine design and cycle duties.
